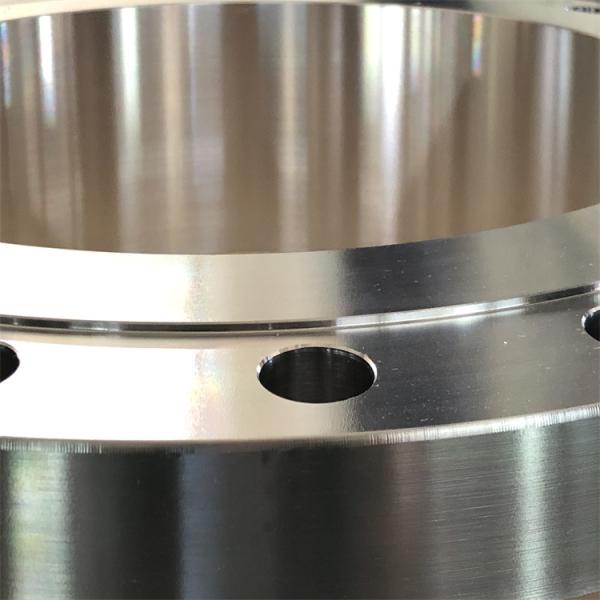

SORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel End
SORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel End
SORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel End
SORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel End
Specifications
Brand Name :
HH BL flange
Model Number :
DN15-DN3000 BLflange
Certification :
ISO,ABS,MTC BL flange
Place of Origin :
Hebei China BL flange
MOQ :
1pcs BL Flange
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram BL flange
Supply Ability :
88000pcs/month BL flange
Delivery Time :
10-30 days BL flange
Packaging Details :
Wooden box wooden pallet BL flange
Place of origin :
Hebei China BL flange
Flange Products size: :
DN15-DN3000 flange
Type of BL Flange :
weld neck, slip on, blind, threaded, socket weld, so on
product size :
Dn15-DN3000 flange
Standard flange :
ASTM ANSI, DIN, JIS flange
Pressure :
150# 300# 900# 3000$ flange
End :
bevel end ANSI B16.25
Description

All Kinds Of Flanges/Carbon Steel Flanges/Sorf/Wnrf/Blind Flanges Carbon Steel Flange BL

Product Description:

This kind of flange is made of steel,and stainless steel,and carbon steel,we have all main standards in the world,you can find what you want in our factory.the measurement from dn 40 to dn 2000.

Welding neck flange have two forms (shapes), one with reducing neck as we called reducing weld neck flange; One with a even diameter of typical long neck named as long neck weld flange.

Weld neck flange (WN flange) has a neck that can relocated stress of the pipe, so to reduce the pressure that gathered in the flange bottom. It is compatible to the pipelines that works in high or low temperature and bear high pressure. Specially for the pipe or the valves when PN is larger than 2.5 Mpa.

Stainless Steel;ALLOY;Titanium;Iron;Carbon steel;Copper;Brass;Bronze;CPVC & Brass;CPVC & Copper;CPVC & Stainless Steel;Machined

1. Standard: ANSI, ISO, JIS,bs, DIN, GB,Astm A105n Carbon Steel Weld Neck Flange 300lbs Welding Neck Flange Carbon Steel Flange WN

2.. Size: DN15-DN3000 Pn6-Pn40 or more good quality Astm A105n Carbon Steel Weld Neck Flange 300lbs Welding Neck Flange Carbon Steel Flange WN

weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange etc.

ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc.

1. Using the resin sand and coated sand casting technology

2.Add the tempering procedure before entering the processing workshop,

3.Use the CNC lathe and pipeline during the whole process.

4.The disc sealing surface use plasma welding machine welding.

5. Every valve must be tested before being sent out of the factory, only qualified ones can be shipped.

Standard
Type
Class
Size
ASME B16.5
WN/LWN/SO/Blind/Lap Joint
150#-2500#
1/2"-24"(Except Blind Flange 2500lb 1/2"-12")
SW flange
150#-1500#
1/2"-3"(Except 1500# 1/2"-2 1/2")
Threaded
150#-900#
1/2"-24"
1500# 2500#
1/2"-2 1/2"
ASME B16.47 Series A
WN/blind flange
150# -900#
22"-48"(Except 900# Size:26"-48")
ASME B16.47 Series B
WN/blind flange
75#-300#
26"-48"
400# 600# 900#
26"-36"
DIN2527
Blind flange
PN6-PN100
DN10-DN1000
DIN2543
SO flange
PN16
DN10-DN1000
DIN2544
SO flange
PN25
DN10-DN1000
DIN2545
SO flange
PN40
DN10-DN500
DIN2565
Threaded flange with Neck
PN6
DN6-DN200
DIN2566
Threaded flange with Neck
PN16
DN6-DN150
DIN2567
Threaded flange with Neck
PN25 PN40
DN6-DN150
DIN2568
Threaded flange with Neck
PN64
DN10-DN150
DIN2569
Threaded flange with Neck
PN100
DN10-DN150
EN1092-1:2002
Plate flange for welding/loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange
PN2.5-PN100
DN10-DN4000
JIS B2220
Welding flange, lap joint flange, threaded flange
PN6-PN100
DN10-DN1500
BS4504 BS10 TableD/E
Plate Flange for welding/WN flange/blank Flange
PN6-PN100
DN10-DN1500
Other Products
Anchor/swivel/girth/lap joint/reducing/orifice
Spectacle blind/paddle blind/spacer ring/orifice plate/bleed ring
Special Products: rings/forgings/disc/shaft sleeves
Sealing Surface
RF FF RTJ TF GF LF LM
Flange Face Finish
Stock finish/spiral serrated/concentric serrated/smooth finish(Ra 3.2 and 6.3 micrometers)
125-250 AARH(it is called smooth finish)
250-500 AARH(it is called stock finish)
Coating
Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade
Nickel Alloy Steel
ASTM/ASME B/SB564 UNS N02200(NICKEL 200), UNS N04400(MONEL 400),
UNS N08825( INCOLOY 825), UNS N06600(INCONEL 600),
UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276),
ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20)
Copper Alloy
ASTM/ASME B/SB151 UNS C70600(CuNi 90/10), C71500(CuNi 70/30)
Stainless Steel
ASTM/ASME A/SA182 F304,304L,304H,309H,310H,316,316H,316L,316LN,
317,317L,321,321H,347,347H
Duplex and Super Duplex Steel
ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61
Carbon steel
ASTM /ASME A/SA105(N)
Low Temp Carbon Steel
ASTM/ASME A/SA350 LF2
High Yield Carbon Steel
ASTM/ASME A/SA694 F52, F56 F60, F65, F70
Alloy Steel
ASTM/ASME A/SA182 GR F5,F9, F11,F12,F22,F91
Titanium
ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7


SORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel End


SORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel EndSORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel EndSORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel End

Factory Information:

Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. was founded in 1982, Haihao Group owns a wholly-owned subsidiary named Hebei Haihao Group Premium Pipeline Equipments Co., Ltd. Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. covers an area of 580,000 square meters, has 660 employees, total assets of RMB 250 million, and an annual output of nearly 100,000 tons. Currently, Haihao Group has 22 advanced flange and pipe fitting production lines; Haihao Group produces flange and pipe fittings, covering different specifications of high-pressure, medium-pressure and low-pressure stainless steel, alloy steel and carbon steel flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line with the international and Chinese standards.

SORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel EndSORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel EndSORF 2 Inch 8 Inch Blind Flange Carbon Steel WNRF Threaded Bevel End

FAQ:

Q1. Where is your factory ?
A1:Our company’s processing center is located in Cangzhou,HeBei, China.


Q2. What are your company's main products ?
A2: Our main products are flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line.

Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
