M1.5 M2 M2.5 20x20x1000MM DIN Standard Spur Rack And Pinion
M1.5 M2 M2.5 20x20x1000MM DIN Standard Spur Rack And Pinion
M1.5 M2 M2.5 20x20x1000MM DIN Standard Spur Rack And Pinion
M1.5 M2 M2.5 20x20x1000MM DIN Standard Spur Rack And Pinion
M1.5 M2 M2.5 20x20x1000MM DIN Standard Spur Rack And Pinion
M1.5 M2 M2.5 20x20x1000MM DIN Standard Spur Rack And Pinion
Specifications
Brand Name :
LYHX
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
$1-5/ pcs
Supply Ability :
5000 per month
Delivery Time :
10 days
Packaging Details :
Customized
Material :
C45, Stainless steel, Aluminum, Brass
Shape :
Rack gear
Porecessing :
Hobbing
Module :
0.4-12 M
Teeth Type :
Spur and helical teeth
Surface :
Blakc, Zinc plated
Heat treatment :
Teeth hardened
Certificate :
ISO, BV, SGS
Description

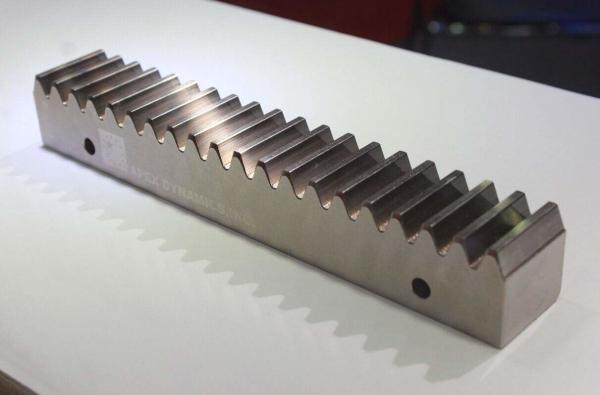

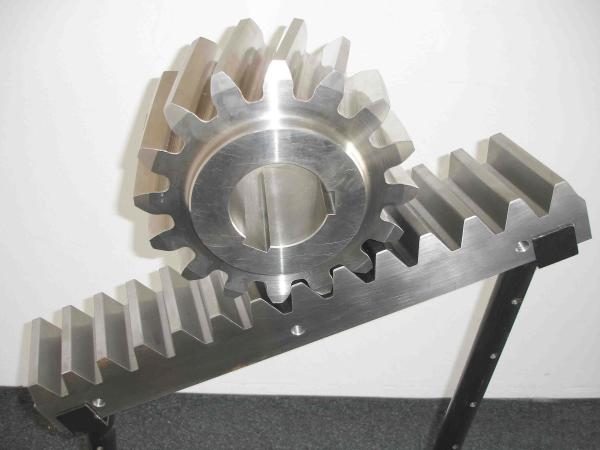

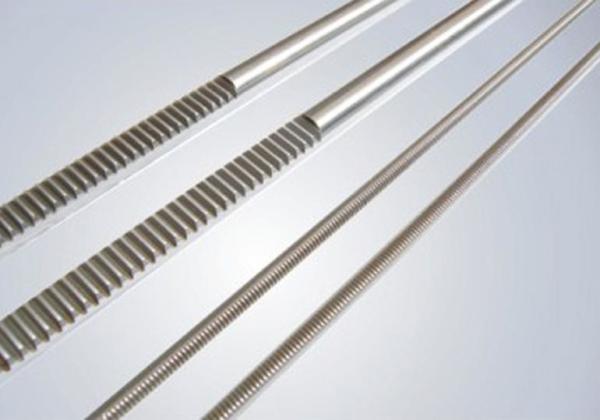

M1.5 M2 M2.5 20x20x1000 MM DIN Standard Pinion Spur Gear Rack

Our spur and helical gear racks are welcomed by many customers for its stable high quality and competitive price.

The producing character of LYHX gear racks.

1. Gear rack length: the longest is 4000mm without joint. It can be jointed to any length.

2. Material: steel C45, stainless steel, high strength steel, copper, aluminium, nylon, plastic, POM etc;

3. Module: 0.3-8 (pitch from 0.942-25.12mm, DP 3.175-85);

4. Surface: zinc (galvanized), black, chromium plating, nickel plating, quenching and tempering etc.

5. Quality: stable and high: accumulated tolerance 0.1mm per 1000mm for normal quality;

Accumulated tolerance 0.02mm per 1000mm for 4 sides ground.

Prices for above quality are very competitive for us.

6. Heat treatment: teeth can be hardened to HRC 43-50.

The quality character of LYHX gear racks:

1. Stable transmission and low noise;

2. Effectively avoid normal tolerance based on high precision;

3. The surfaces can be ground to grade 7 quality, and teeth can be ground to grade 6 quality;

4. The mounting holes can be made as request;

5. The price is competitive even the quality is high.

Facilities

Machining center;

CNC gear hobbing machine;

CNC gear shaper;

CNC gear grinding machine;

CNC turning machine;

CNC milling machine.

Y58200 CNC large gear rack shaper,

Y58125A gear rack shaper,

England gear rack shaper

and Russia gear rack shaper,

Gleason machine.
Material

Steel: C45, Q235, 40Cr, 20CrMnTi, etc.

Stainless steel: 301, 201, 304, 316 etc.

Brass: H59 H68 H80 H90 etc.

Aluminium: 6082, 6061, A380 etc.

Aluminium alloy: 6061, 5083, 7050, etc.

More: PA6, PA66, POM, ABS etc
Teeth type

Spur teeth gear rack;

Helical teeth gear rack;

Round gear rack;

Tube gear rack;

Curved gear rack.
Surface Polishing; Plating; Galvanized; Black; chromium plating, nickel plating; painting etc.
