Specifications
Brand Name :
DRAGON STEEL BALLS
Model Number :
Low Cr Mid Chrome High Cr
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
3000 tons / Month
Delivery Time :
3-7 work days/ 25 tons
Packaging Details :
Container bags ,steel drums
Advantage :
High Wear Resistant,High output and low price
Size :
12mm-150mm
Technology :
Casting
Application :
Mining,Cement plant,Power Station
Port :
Tianjin/Qingdao/Shanghai
Hardness :
57-63
Description

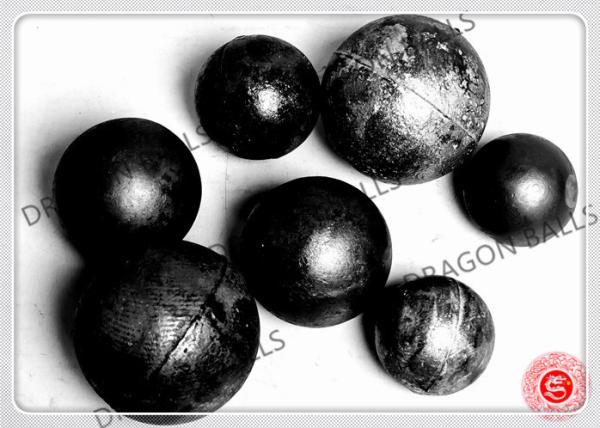

30mm 40mm Low Chrome Cr 1 Cast Iron Ball Casting Balls For Mining

1. Cast Iron Ball is popular grinidng media for ball mill, please tell your size, chrome content or hardness, we will give the most competition qutation ASAP.

Following is the detail:

2. Classification

According to the different chemical elements , Cast balls can be divided into Low Cr,Medium Cr and High Cr. At present, the above materials are widely used all over the world, that’s the conventional materials, if there are special needs, can be customized.

3.Manufacturing process

Casting balls are melted in electric furnace and poured into moulds after scientific proportioning. High chromium cast balls are also processed by oil quenching.

4. Detail Specifications

① Chemical Composition

Material

Chemical Composition

Low Cr

C:2.2-3.4, Si:≤1.2, Mn:0.5-1.5, P:≤0.06, S:≤0.06, Cr:1.0-1.5

Medium Cr

C:2.0-3.2, Si:<1.0, Mn:0.5-2.5, P:≤0.06, S:≤0.06, Cr:≥5

High Cr

C:2.0-3.2, Si:<1.0, Mn:0.5-2.5, P:≤0.06, S:≤0.06, Cr:≥10

② Hardness

Type

Low Cr

Medium Cr

High Cr

20mm-150mm

45-50

48-55

58-63

③ Dragon Balls Weight

Size(mm) 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Weight(kg) 0.033 0.111 0.261 0.512 0.883 1.402 2.092 2.98 1.087 5.44 7.062 9.008 11.25 13.83

5. Test

① Factory test

Casting balls test is an very important step. Real-time detection will be carried out in the production process. Balls produced in each shift will be sampled in large quantities and tested for size, hardness, chemical composition, drop test, core pulling and impact value to ensure the quality of steel balls.

② The third party test

According to the customer different demand, casting balls can be tested by any third party.

6. Packing

Casting balls are usually packed in container bags and steel drums, it can also be customized according to different customer needs.

7. Company Introduction

Dragon balls factory are established in 2001.Up to now, we have cooperated with many large power plants in China for more than 10 years. Since 2007, Dragon balls has set up its own foreign trade team, and began to show itself to the world. The forged ball, cast ball and cylpebs are widely praised by friends at home and abroad.


Dragon balls has a very mature technology research and development team and sales team, we are constantly expanding the factory and team every year, in order to meet the growing demand at home and abroad.

Steel balls are a long-term business.

We are willing to do it all the time because if we know someone, we will become permanent friends.

We can always do this for so many years because our quality supports our long-term cooperation and friendship.

The quality of every steel ball is crucial because it is a strong bridge that connects us.

Low Chrome Cast Iron Grinding Balls , 30mm 40mm Grinding Balls For Mining
