Low Cr Cement Grinding Balls 40mm 60mm 80mm Customized Size For Power Station
Low Cr Cement Grinding Balls 40mm 60mm 80mm Customized Size For Power Station
Specifications
Brand Name :
DRAGON STEEL BALLS
Model Number :
Low Cr Mid Chrome High Cr
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
3000 tons / Month
Delivery Time :
5-7 days / 25 tons
Packaging Details :
Container bags ,steel drums
Type :
12mm-150mm
Technology :
Casting
Application :
Mining,Cement plant,Power Station
Port :
Tianjin/Qingdao/Shanghai
Material :
Low Cr
Hardness :
57-63
Tolerance :
+-1mm,+-2mm
Description

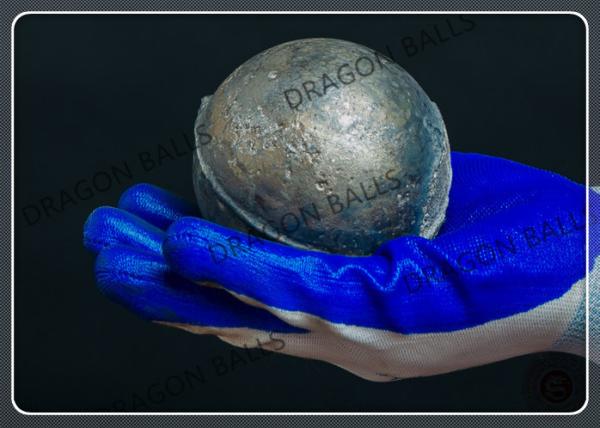

40mm 60mm 80mm Low Cr Cement Grinding Balls Cast Balls For Ball Mill

1. Casting Steel Ball is the main product of Dragon Balls , we have more than 20 years production experience .Especially on the quality, the capacity ,the price we all have advantages.

Please tell the size and material you need, we will send the detail to you ASAP.

2. forged steel ball Classification

According to the different chemical elements , Cast balls can be divided into Low Cr,Medium Cr and High Cr. At present, the above materials are widely used all over the world, that’s the conventional materials, if there are special needs, can be customized.

3. ​forged steel ball Manufacturing process

Casting balls are melted in electric furnace and poured into moulds after scientific proportioning. High chromium cast balls are also processed by oil quenching.

4. forged steel ball Detail Specifications

① Chemical Composition

Material

Chemical Composition

Low Cr

C:2.2-3.4, Si:≤1.2, Mn:0.5-1.5, P:≤0.06, S:≤0.06, Cr:1.0-1.5

Medium Cr

C:2.0-3.2, Si:<1.0, Mn:0.5-2.5, P:≤0.06, S:≤0.06, Cr:≥5

High Cr

C:2.0-3.2, Si:<1.0, Mn:0.5-2.5, P:≤0.06, S:≤0.06, Cr:≥10

② Hardness

Type

Low Cr

Medium Cr

High Cr

20mm-150mm

45-50

48-55

58-63

③ Dragon Balls Weight

Size(mm) 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Weight(kg) 0.033 0.111 0.261 0.512 0.883 1.402 2.092 2.98 1.087 5.44 7.062 9.008 11.25 13.83

5. forged steel ball Test

① Factory test

Casting balls test is an very important step. Real-time detection will be carried out in the production process. Balls produced in each shift will be sampled in large quantities and tested for size, hardness, chemical composition, drop test, core pulling and impact value to ensure the quality of steel balls.

② The third party test

According to the customer different demand, casting balls can be tested by any third party.

6. forged steel ball Packing

Casting balls are usually packed in container bags and steel drums, it can also be customized according to different customer needs.

forged steel ball casting balls

Low Cr Cement Grinding Balls 40mm 60mm 80mm Customized Size For Power Station
