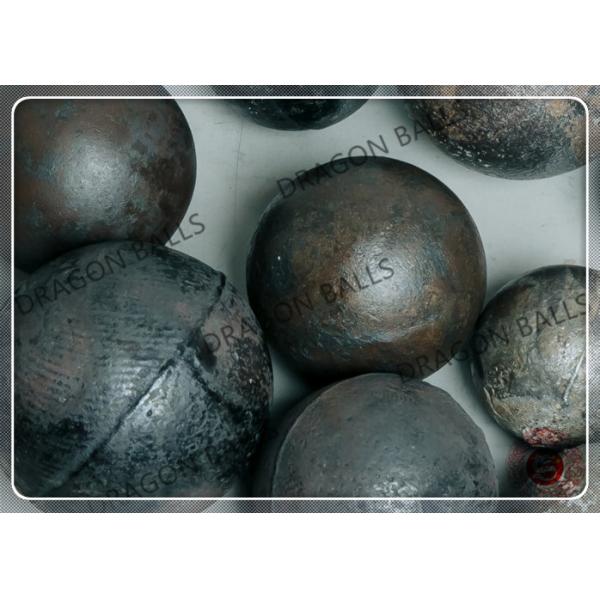

Cement Grinding Media Steel Balls High Reliability With CE / ISO Certification
Cement Grinding Media Steel Balls High Reliability With CE / ISO Certification
Specifications
Brand Name :
DRAGON STEEL BALLS
Model Number :
45# 60Mn B2 B3
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
3000 tons / Month
Delivery Time :
3-7 work days/ 25 tons
Packaging Details :
Container bags ,steel drums
Keyword :
grinding steel balls
Feature :
High Reliability
Usagae :
Ball Mill for Mining,Cement plant,Power Station
Port :
Tianjin/Qingdao/Shanghai
Type :
Round Steel
Tolerance :
Accrording to the different size
Description

Forged Steel Grinding Balls Cement Grinding Balls Grinding Media Manufacturers

1. grinding steel balls Detail Specifications

① Chemical Composition

Material

Chemical Composition

C

Si

Mn

Cr

P

S

Ni

Cu

C45

0.42-0.5

0.17-0.37

0.5-0.8

≤0.25

≤0.035

≤0.035

≤0.25

≤0.25

60Mn

0.55-0.65

0.17-0.37

0.7-1.0

≤0.25

<0.04

<0.04

≤0.3

≤0.25

B2

0.72-0.85

0.17-0.37

0.7-1.0

0.4-0.6

≤0.025

≤0.025

≤0.02

≤0.02

B3

0.58-0.66

1.3-1.9

0.65-0.8

0.7-0.9

≤0.025

≤0.025

≤0.02

≤0.02


② Hardness

Size

C45

60Mn

B2

B3
20mm 55-58 58-62 60-64 62-65
30mm 55-58 58-62 60-64 62-65
40mm 55-58 58-62 60-64 62-65
50mm 55-58 58-62 60-64 62-65
60mm 55-58 58-62 60-64 62-65
70mm 53-56 58-62 60-64 61-63
80mm 53-56 58-62 59-63 60-65
90mm 50-55 58-62 57-61 60-65
100mm 48-52 57-61 56-60 60-65
110mm 48-52 57-61 55-60 58-64
120mm 48-52 57-61 55-60 56-63
130mm 48-52 57-61 55-60 56-63
140mm 48-52 57-61 55-60 56-63
150mm 48-52 57-61 55-60 56-63

③ Weight

Size(mm) 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Weight(kg) 0.033 0.111 0.261 0.512 0.883 1.402 2.092 2.98 1.087 5.44 7.062 9.008 11.25 13.83

2. grinding steel balls Application

① Mining ( Gold, copper, iron ore )

② Cement plant

③ Coal mill

④ Sag mill

⑤ Industry

⑥ All the ball mill or rods mill machine

3. grinding steel balls Classification

According to the different chemical elements , forging grinding balls can be divided into C45,60Mn,B2 and B3. At present, the above four materials are widely used all over the world, that’s the conventional materials, if there are special needs, can be customized.

① 45#

② 60Mn

③ B2

④ B3

4. grinding steel balls Manufacturing process

Forged grinding ball is forged by air hammer after being heated by electric furnace.

5. grinding steel balls Test

① Factory test

Forged grinding balls test is an very important step. Real-time detection will be carried out in the production process. Balls produced in each shift will be sampled in large quantities and tested for size, hardness, chemical composition, drop test, core pulling and impact value to ensure the quality of steel balls.

② The third party test

According to the customer different demand, forged grinding balls can be tested by any third party.

6. grinding steel balls Packing

Forged grinding balls are usually packed in container bags and steel drums, it can also be customized according to different customer needs.
