CE 12mm - 150mm Dragon Balls Casting Steel Ball Grinding For Ball Mill
CE 12mm - 150mm Dragon Balls Casting Steel Ball Grinding For Ball Mill
Specifications
Brand Name :
DRAGON STEEL BALLS
Model Number :
Low Cr Mid Chrome High Cr
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
3000 tons / Month
Delivery Time :
3-7 work days/ 25 tons
Packaging Details :
Container bags ,steel drums
Advantage :
High Wear Resistant,High output and low price
Size :
12mm-150mm
Technology :
Casting
Application :
Mining,Cement plant,Power Station
Port :
Tianjin/Qingdao/Shanghai
Hardness :
57-63
Description

Dragon Balls High Quality Casting Steel Ball Grinding Balls For Ball Mill

1. Casting balls is popular grinidng media for ball mill, please tell your size, chrome content or hardness, we will give the most competition qutation ASAP.

Following is the detail:

2. Casting balls Classification

According to the different chemical elements , Cast balls can be divided into Low Cr,Medium Cr and High Cr. At present, the above materials are widely used all over the world, that’s the conventional materials, if there are special needs, can be customized.

3.​ Casting balls Manufacturing process

Casting balls are melted in electric furnace and poured into moulds after scientific proportioning. High chromium cast balls are also processed by oil quenching.

4. Casting balls Detail Specifications

① Chemical Composition

Material

Chemical Composition

Low Cr

C:2.2-3.4, Si:≤1.2, Mn:0.5-1.5, P:≤0.06, S:≤0.06, Cr:1.0-1.5

Medium Cr

C:2.0-3.2, Si:<1.0, Mn:0.5-2.5, P:≤0.06, S:≤0.06, Cr:≥5

High Cr

C:2.0-3.2, Si:<1.0, Mn:0.5-2.5, P:≤0.06, S:≤0.06, Cr:≥10

② Hardness

Type

Low Cr

Medium Cr

High Cr

20mm-150mm

45-50

48-55

58-63

③ Dragon Balls Weight

Size(mm) 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Weight(kg) 0.033 0.111 0.261 0.512 0.883 1.402 2.092 2.98 1.087 5.44 7.062 9.008 11.25 13.83

5. Casting ballsTest

Casting balls test is an very important step. Real-time detection will be carried out in the production process. Balls produced in each shift will be sampled in large quantities and tested for size, hardness, chemical composition, drop test, core pulling and impact value to ensure the quality of steel balls.

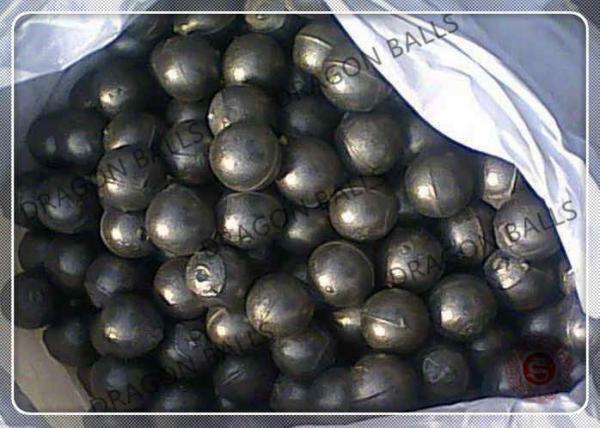

Casting balls
