Specifications
Brand Name :
BY
Model Number :
BYSW00022
Certification :
SGS/BV/ABS/LR/TUV/DNV
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
10000 PC Per Month
Packaging Details :
Regular shipping packaging or depends on customer's requirement
Material Grade :
Nickel Base Alloy
Standard :
DIN,ANSI,ASME,JIS,GB
Application :
CHEMICAL /OIL/GAS/ENERGY
Technic :
Forged
Type :
SWRF
Size :
1/2"-48"
Material :
Alloy Steel/Stainless Steel
Pressure :
150#-2500#
Description

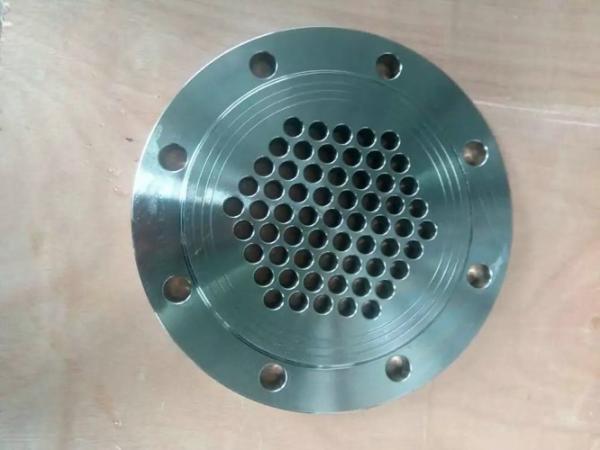

ASME B16.5 DIN 2527 TS 2146/1Socket Weld Pipe Flanges Attaching To The End Of Pipe

Flanges are manufactured in all the different materials to match the material of the pipe and fittings to which they are being attached. While some flanges are made of Cast Iron, the vast majority of flanges are forged carbon steel.

A flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.


Forged steel flanges are made in seven primary ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500 & Class 2500


Flange Types

· Weld Neck Flanges

· Slip-On Flanges

· Lap Joint Flanges

· Threaded Flanges

· Socket Weld Flanges

· Blind Flanges

Forged Flanges

Size : ½" TO 54"
Pressure Rating : 150#, 300#, 600#, 900#, 1500#, 2500#
Material :
Carbon Steel : A-105, A-350 LF2 [NACE + HIC] etc..
Alloy Steel : F-5, F-9, F-11, F-22, F-91 etc.
Stainless Steel : SS 304, SS 304L SS316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H, Etc..
Duplex SS : F-51, F-55
High Strength Steel : A694 Gr 52, 60, 65, 70, AISI 4130, 4140
Nickel Alloys : Monel 400, Inconel 625, Inconel 825, Alloy 20, etc.

Standards : ASME B 16.5, ASME B 16.47, API 6A
Type : SORF, WNRF, SWRF, BLRF, Threaded etc.
Specials : Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.

150lb Flange

Length through Hub Y

Nominal Bore Pipe OD A Flange dia. B Raised Face dia. D Flange Thickness T Welding Neck Slip-on Screwed Socket-weld Bolt PCD No. of Bolts Bolt Hole dia.
15 21.4 88.9 34.9 11.1 47.6 15.9 60.3 4 15.9
20 27.0 98.4 42.9 12.7 52.4 15.9 69.8 4 15.9
25 34.1 107.9 50.8 14.3 55.6 17.5 79.4 4 15.9
32 42.9 117.5 63.5 15.9 57.1 20.6 88.9 4 15.9
40 48.4 127.0 73.0 17.5 61.9 22.2 98.4 4 15.9
50 60.3 152.4 92.1 19.0 63.5 25.4 120.6 4 19.0
65 73.0 177.8 104.8 22.2 69.8 28.6 139.7 4 19.0
80 88.9 190.5 127.0 23.8 69.8 30.2 152.4 4 19.0
90 101.6 215.9 139.7 23.8 71.4 31.7 177.8 8 19.0
100 114.3 228.6 157.2 23.8 76.2 33.3 190.5 8 19.0
125 141.3 254.0 185.7 23.8 88.9 36.5 215.9 8 22.2
150 165.1 279.4 215.9 25.4 88.9 39.7 241.3 8 22.2
168.3 279.4 215.9 25.4 88.9 39.7 241.3 8 22.2
200 219.1 342.9 269.9 28.6 101.6 44.4 298.4 8 22.2
250 273.1 406.4 323.8 30.2 101.6 49.2 361.9 12 25.4
300 323.9 482.6 381.0 31.7 114.3 55.6 431.8 12 25.4
350 355.6 533.4 412.7 34.9 127.0 57.1 476.2 12 28.6
400 406.4 596.9 469.9 36.5 127.0 63.5 539.7 16 28.6
450 457.2 635.0 533.4 39.7 139.7 68.3 577.8 16 31.7

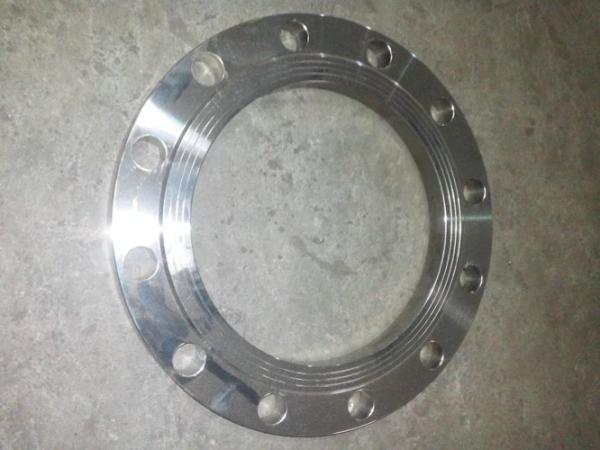

ASME B16.5 DIN 2527 TS 2146/1Socket Weld Pipe Flanges Attaching To The End Of Pipe

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type Welding Neck Flanges
ModelNumber Steel Flange Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
