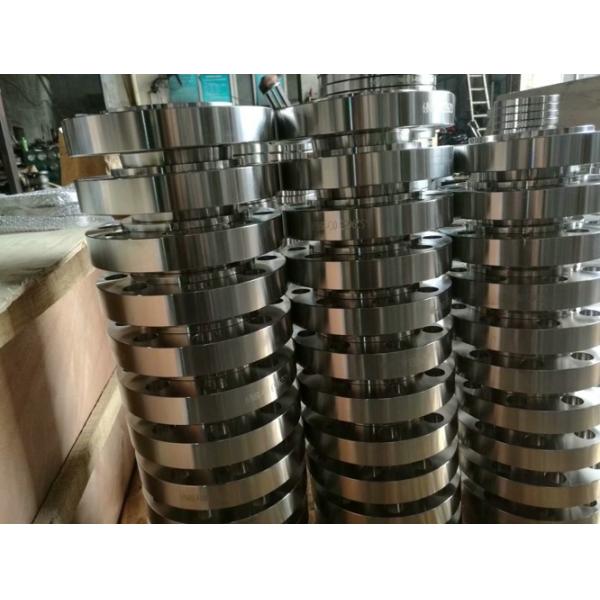

Duplex 2205 DIN2633 DN1000 PN16CSocket Weld Pipe Flanges Duplex Stainless Steel Flanges

1.DIN 2633 standard

Specification Sheet

Nenndruck PN 16
2 DN d1 D b k h1 d3 s h2 d4 f d2 Löcher kg
3 10 14.0 90 14 60 35 25 1.8 6 40 2 14 4 0.580
4 10 17.2 90 14 60 35 28 1.8 6 40 2 14 4 0.580
5 15 20.0 95 14 65 35 30 2.0 6 45 2 14 4 0.648
6 15 21.3 95 14 65 35 32 2.0 6 45 2 14 4 0.648
7 20 25.0 105 16 75 38 38 2.3 6 58 2 14 4 0.952
8 20 26.9 105 16 75 38 40 2.3 6 58 2 14 4 0.952
9 25 30.0 115 16 85 38 42 2.6 6 68 2 14 4 1.140
10 25 33.7 115 16 85 38 45 2.6 6 68 2 14 4 1.140
11 32 38.0 140 16 100 40 52 2.6 6 78 2 18 4 1.690
12 32 42.4 140 16 100 40 56 2.6 6 78 2 18 4 1.690
13 40 44.5 150 16 110 42 60 2.6 7 88 3 18 4 1.860
14 40 48.3 150 16 110 42 64 2.6 7 88 3 18 4 1.860
15 50 57.0 165 18 125 45 72 2.9 8 102 3 18 4 2.530
16 50 60.3 165 18 125 45 75 2.9 8 102 3 18 4 2.530
17 65 76.1 185 18 145 45 90 2.9 10 122 3 18 4 3.060
18 80 88.9 200 20 160 50 105 3.2 10 138 3 18 8 3.700
19 100 108.0 220 20 180 52 125 3.6 12 158 3 18 8 4.620
20 100 114.3 220 20 180 52 131 3.6 12 158 3 18 8 4.620
21 125 133.0 250 22 210 55 150 4.0 12 188 3 18 8 6.300
22 125 139.7 250 22 210 55 156 4.0 12 188 3 18 8 6.300
23 150 159.0 285 22 240 55 175 4.5 12 212 3 22 8 7.750
24 150 168.3 285 22 240 55 184 4.5 12 212 3 22 8 7.750
25 175 193.7 315 24 270 60 210 5.4 12 242 3 22 8 9.850
26 200 219.1 340 24 295 62 235 5.9 16 268 3 22 12 11.000
27 250 267.0 405 26 355 70 285 6.3 16 320 3 26 12 15.600
28 250 273.0 405 26 355 70 292 6.3 16 320 3 26 12 15.600
29 300 323.9 460 28 410 78 344 7.1 16 378 4 26 12 22.000
30 350 355.6 520 30 470 82 390 8.0 16 438 4 26 16 31.200
31 350 368.0 520 30 470 82 390 8.0 16 438 4 26 16 28.800
32 400 406.4 580 32 525 85 445 8.0 16 490 4 30 16 39.300
33 400 419.0 580 32 525 85 445 8.0 16 490 4 30 16 36.300
34 500 508.0 715 34 650 90 548 8.0 16 610 4 33 20 61.000
35 600 610.0 840 36 770 95 652 8.8 18 725 5 36 20 75.400
36 700 711.0 910 36 840 100 755 8.8 18 795 5 36 24 77.000
37 800 813.0 1025 38 950 105 855 10.0 20 900 5 39 24 101.000
38 900 914.0 1125 40 1050 110 955 10.0 20 1000 5 39 28 122.000
39 1000 1016.0 1255 42 1170 120 1058 10.0 22 1115 5 42 28 162.000
40 1200 1220.0 1485 48 1390 130 1262 12.5 30 1330 5 48 32 243.000
41 1400 1420.0 1685 52 1590 145 1465 14.2 30 1530 5 48 36 323.000
42 1600 1620.0 1930 58 1820 160 1668 16.0 35 1750 5 56 40 479.000

2.DIN 2633 Welding Neck Flanges Description

DIN PN16 Forged/Cast Steel Flanges

The flanges with the dimensions of this standard can be used at maximum 120°C temperature with up to 16 bar of working pressure.

At higher temperature of 120°C to 300°C, it should be taken into consideration that the material yield point becomes lower.


‧ Dimension Standard: DIN 2633
‧ Materials: Carbon Steel / Stainless Steel
ASTM A351 CF8/ CF8M
ASTM A105
ASTM A182 ( F304, F304L, F316, F316L, F304H, F316H, F11 & F12 )
ASTM A350 LF1, LF2, LF3

3.DIN 2633 Flange Material

Carbon Steel DIN 2633 Flange ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Stainless Steel DIN 2633 Flange ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Alloy Steel DIN 2633 Flange ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium DIN 2633 Flange ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 | R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Copper DIN 2633 Flange T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel DIN 2633 Flange ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass DIN 2633 Flange 3602 / 2604 / H59 / H62 / etc.
Inconel DIN 2633 Flange ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 DIN 2633 Flange
Hastelloy DIN 2633 Flange ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel DIN 2633 Flange ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 DIN 2633 Flange ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium DIN 2633 Flange 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel DIN 2633 Flange ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex DIN 2633 Flange S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex DIN 2633 Flange S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy DIN 2633 Flange ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 Smo DIN 2633 Flange ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic DIN 2633 Flange Nimonic 75, Nimonic 80A, Nimonic 90
Other DIN 2633 Flange material Tin bronze, Alumunum bronze, Lead bronze
