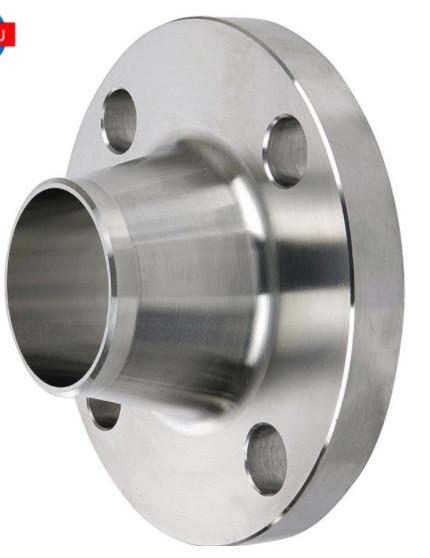

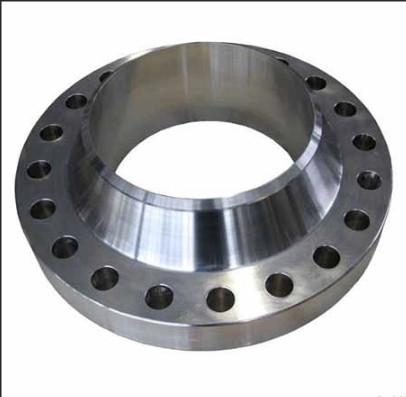

Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE
Specifications
Brand Name :
BoYue
Model Number :
BYWN000030
Certification :
ISO,BV,SGS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000pcs per month
Delivery Time :
10-100 days depending on quantity
Packaging Details :
PLY-WOODEN CASE OR PALLET
SIZE :
1/2" - 24"
PROCESS :
FORGED
CLASS RATING :
150#300#600#900#1500#2500#
SEALING FACE :
RF FF RTJ
FACE FINISH :
SMOOTH /STOCK FINISH
PRODUCT NAME :
150#-2500# 1/2"-24" MONEL 400 FLANGE AS PER ASME B16.5
APPLICATION :
CHEMICAL /OIL/GAS/ENERGY
STANDARD :
ANSI/ASTM/ASME
Description

Nickel Alloy 800 Weld Neck Pipe Flanges With Collar As EN 1092-1ISO SGS BV TUV CE

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type Welding Neck Flanges
ModelNumber Inconel 601 Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET
Flange type (typ) as in DIN EN 1092-1
01 (Plate [slip-on] flanges for welding) 13 (Hubbed threaded flanges)
02 (Loose plate flanges with weld-on plate collar) 21 (Integral flanges)
04 (Loose plate flanges with weld-neck collar) 32 (Weld-on plate collars)
05 (Blank [blind] flanges) 33 (Lapped pipe ends)
11 (Weld-neck flanges) 34 (Weld-neck collars)
12 (Hubbed slip-on flanges for welding) 36 (Pressed collar with long neck)
37 (Pressed collar)

Flange facing types according to DIN EN 1092-1

Type A: flat face Type D: groove face Type G: O Ring recess
Type B: raised face Type E: spigot Type H: O Ring groove
Type C: tongue face Type F: recess

Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE

Flange facing dimensions

units [mm]

DN PN f1 f2 f3 f4 w x y z α R
2.5 6 10 16 25 40 63 100 160 250 320 400
d1
10 35 35 40 40 40 40 40 40 40 40 40 40 2 4.5 4 2 24 34 35 23 - 2.5
15 40 40 45 45 45 45 45 45 45 45 45 45 29 39 40 28 -
20 50 50 58 58 58 58 58 58 58 58 58 58 36 50 51 35 41º
25 60 60 68 68 68 68 68 68 68 68 68 68 43 57 58 42
32 70 70 78 78 78 78 78 78 78 78 78 78 51 65 66 50
40 80 80 88 88 88 88 88 88 88 88 88 88 3 61 75 76 60
50 90 90 102 102 102 102 102 102 102 102 102 102 73 87 88 72
65 110 110 122 122 122 122 122 122 122 122 122 122 95 109 110 94
80 128 128 138 138 138 138 138 138 138 138 138 138 106 120 121 105
100 148 148 158 158 162 162 162 162 162 162 162 162 5 4.5 2.5 129 149 150 128 32º 3
125 178 178 188 188 188 188 188 188 188 188 188 188 155 175 176 154
150 202 202 212 212 218 218 218 218 218 218 218 218 183 203 204 182
200 258 258 268 268 278 285 285 285 285 285 285 285 239 259 260 238
250 312 312 320 320 335 345 345 345 345 345 345 - 292 312 313 291
300 365 365 370 378 395 410 410 410 410 - - - 4 343 363 364 342
350 415 415 430 438 450 465 465 465 - - - - 5.5 5 3 395 421 422 394 27º 3.5
400 465 465 482 490 505 535 535 535 - - - - 447 473 474 446
450 520 520 532 550 555 560 560 560 - - - - 497 523 524 496
500 570 570 585 610 615 615 615 615 - - - - 349 375 376 548
600 670 670 685 725 720 735 735 - - - - - 5 649 675 676 648
700 775 775 800 795 820 840 840 - - - - - 751 777 778 750
800 880 880 905 900 930 960 960 - - - - - 856 882 883 855
900 980 980 1005 1000 1030 1070 1070 - - - - - 961 987 988 960
1000 1080 1080 1110 115 1140 1180 1180 - - - - - 6.5 6 4 1062 1092 1094 1060 28º 4


Nickel Alloy 800 Weld Neck Pipe Flanges With Collar AS EN 1092-1 ISO SGS BV TUV CE

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type Welding Neck Flanges
ModelNumber Inconel 601 Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET
