Specifications
Brand Name :
BY
Model Number :
ASTM A240 Type 904L (UNS N08904)
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8740PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Plywood\wooden Pallets,wooden pallets
Standard :
ASTM A240 Type 904L (UNS N08904)
Size :
14"
Material :
A182 F904L
Pressure :
ANSI 150, 300, 600, 900 & 1500 lbs
Packing :
Plywood\wooden Pallets,wooden pallets
Price term :
EX-WORK CIF CFR FCA FOB
Description

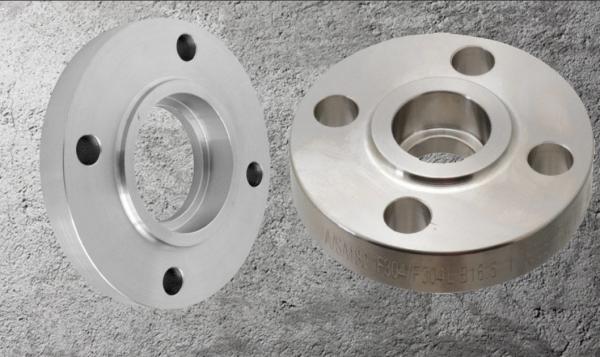

ASTM A240 Type 904L (UNS N08904) DN50 Class 150 Stainless Steel Socket Weld Pipe Flange

SW Flange (Socket Weld Flange) contain a shoulder on the inside of the flange that acts as a guide to set the depth at which the pipe is welded to the flange. They are fabricated by inserting the pipe end into the flange until it bottoms out against the shoulder, and then retracting the pipe 1/8 in before welding it in place. This practice was originally employed to reduce cracking due to thermal stresses in stainless steel superheaters, but over the years has become standard practice for the installation of all socket weld flanges (SW Flange).

1 Product: WN welding neck flange; SO slip on flange; Plate flange; Blind flange;
Threaded (screwed) flange; SW socket welding flange;Lapped joint (loose) flange;
stub end flange, LWN long welding neck flange,
Orifice flange;
Reducing flange; API flange; Compact flange; Spectacle blind,
Lind spade and spacer,
Paddle spacer;
Orifice plate;tube sheet, Bleed ring, square flange,
girth flange, hub flange, API flange
2 size: 1/2''~24'' larger size negotiable
3 Class: 150LBS~2500 LBS
4 Face: RF(raised face);FF(flat face);RTJ(ring type joint);
TG(tongue and groove face);MFF(male and female face)
5 Standard: ASME B16.5, ANSI B16.5,ANSI B16.47, ASME B16.47 series A, ASME B16.47 series B,
ASME B16.48(spectacle blind),
API 6A TYPE 6B 6BX ,BS4504,
ANSI B16.36 (orifice flange), DIN EN1092-1,
ASTM B564, ASME SB564, etc
6 Material: Stainless / duplex stainless ;
nickel alloy monel inconel incoloy hastelloy nimonic
7 Stainless: 304 304L 316 316L 317 317L 321 321H 316ti 347 347H 310S 309S 310 309
ASME SA-182 ASTM A182 F304, F304L, F316, F316L, F309H, F310, F310H,
ASTM A182 F317, F317L,F321, F321H, F347, F347H, F310MOLN, F316ti
8 Duplex stainless: astm a182 F51 F53 F44 F55 F60 F61 F62 F56 F58 F904L F310MoLn F20;
Duplex 2205/UNS S31803/1.4462; duiplex 2507/UNS S32750/1.4410;
UNS S32760/1.4501; 904L/UNS N08904/1.4539
254SMO/UNS S31254/1.4547; 725LN/310Moln/UNS S31050/1.4466
UNS S32205; alloy 255/UNS S32550; alloy 6xn/AL-6XN/AL6XN/UNS N08367/1.4529;
316Lmod/1.4435;
9 Nickel alloy: ASTM B564 , ASME SB564,
nickel 200 UNS N02200 UNS S21800 Nitronic 60
alloy 31 6xn UNS N08031 N08367
monel alloy 400 UNS N04400
inconel alloy 600 625 690 686 617 UNS N06600 N06625 N06690 N06686 N06617
incoloy alloy 800 800h 800ht 825 UNS N08800 N08810 N08811 N08825
hastelloy alloy B-2 B-3 C-22 C-276 C-2000 UNS N10665 N10675 N10276 N06022 N06200
10 Lead time: 10~30 days according to qty
11 Packing : Plywood cases or wooden box
12 Usage: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
13 Exported countries: United States, Germany, Saudi Arabia, South Korea,etc.
14 Test: In house and the 3rd party to test (SGS/TUV/BV etc)
15 Advantages: Excellent quality and in-time delivery
16 Other products: 1. ASME B16.9 Butt welding/weld BW pipe fittings 90deg/45deg elbow equal/reducing tee concentric/eccentric reducer equal/reducing cross cap lap joint stub ends 180deg return bend lateral tee
3. ASME B16.11 Forged Fittings,Socket Welding and Threaded elbow tee cross cap coupling half-coupling square/hex/round head plug, hex head/flush bushing
4. MSS SP-97 weldolet sockolet threadolet
5. ASME B16.48 spectacle blind / blank flange, figure-8 blank, Paddle blank and paddle spacer

Stainless Steel Socket Weld Pipe Flanges , DN50 Class 150 Flange ASTM A240 Type 904L

Stainless Steel Socket Weld Pipe Flanges , DN50 Class 150 Flange ASTM A240 Type 904L

Delivery:

Port:Tianjin/Shanghai/Ningbo
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15-30 To be negotiated
Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type SW/WN/SO/BL/TH Flanges
ModelNumber Steel Flange Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin
Commerce Clause
Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
