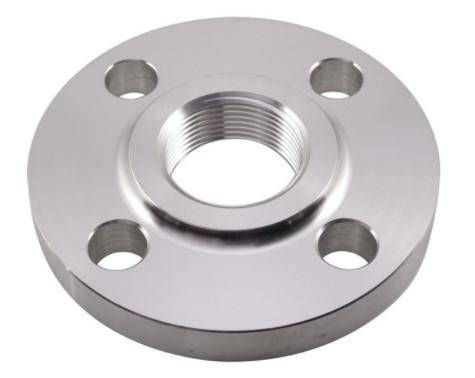

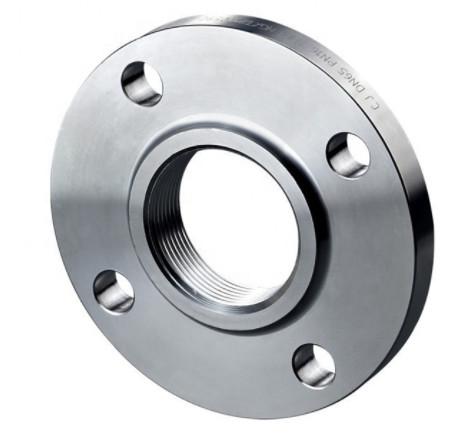

ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
Specifications
Brand Name :
BY
Model Number :
BYTH00018
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
10000 PC Per Month
Packaging Details :
Regular shipping packaging or depends on customer's requirement
Material Grade :
Nickel Base Alloy
Standard :
DIN,ANSI,ASME,JIS,GB
Application :
CHEMICAL /OIL/GAS/ENERGY
Technic :
Forged
Type :
SWRF
Size :
1/2"-48"
Material :
Alloy Steel/Stainless Steel
Pressure :
150#300#600#900#1500#2500#
Description

ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665

Hastelloy B-2 Flanges

Hastelloy B-2 Nippo Flanges, ASTM B564 Hastelloy B-2 Threaded Flanges, ANSI B16.5 Alloy B-2 Ring Type Joint Flanges, Hastelloy B-2 Spectacle Blind Flanges, Hastelloy UNS N10665 Pipe Flanges, Alloy B-2 RTJ Flange Supplier ,Hastelloy B-2 Slip On Flanges, ANSI B16.5 Alloy B-2 Orifice Flange, Hastelloy B-2 Industrial Flanges, Hastelloy B-2 Spacer, Hastelloy B-2 WN RF Flanges Exporter,Alloy B-2 RF FF RTJ Weld Neck Flange Dealer in China.

Hastelloy C-22 Flanges Specifications

Specifications ASTM B564 / ASME SB564
Size 1/2″NB TO 60″NB
Standards ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Other Hastelloy B-2 Flanges we have

Standard Type Class Size
ASME B16.5 WN/LWN/SO/Blind/Lap Joint 150#-2500#

1/2"-24"

(Except Blind Flange 2500lb 1/2"-12")
SW flange 150#-1500#

1/2"-3"

(Except 1500# 1/2"-2 1/2")
Threaded 150#-900# 1/2"-24"
1500# 2500# 1/2"-2 1/2"
ASME B16.47 Series A WN/blind flange 150# -900#

22"-48"

(Except 900# Size:26"-48")
ASME B16.47 Series B WN/blind flange 75#-300# 26"-48"
400# 600# 900# 26"-36"
DIN2527 Blind flange PN6-PN100 DN10-DN1000
DIN2543 SO flange PN16 DN10-DN1000
DIN2544 SO flange PN25 DN10-DN1000
DIN2545 SO flange PN40 DN10-DN500
DIN2565 Threaded flange with Neck PN6 DN6-DN200
DIN2566 Threaded flange with Neck PN16 DN6-DN150
DIN2567 Threaded flange with Neck PN25 PN40 DN6-DN150
DIN2568 Threaded flange with Neck PN64 DN10-DN150
DIN2569 Threaded flange with Neck PN100 DN10-DN150
EN1092-1:2002

Plate flange for welding/

loose plate flange with weld-on plate collar or for lapped pipe

end/Blind Flange/WN flange

 PN2.5-PN100 DN10-DN4000
JIS B-2220

Welding flange,

lap joint flange,

threaded flange

 PN6-PN100 DN10-DN1500
BS4504 BS10 TableD/E

Plate Flange for welding/

WN flange/blank Flange

 PN6-PN100 DN10-DN1500
Other Products

Anchor/swivel/girth/l

ap joint/reducing/orifice

Spectacle blind/paddle blind/

spacer ring/orifice plate/bleed ring

Special Products: rings/

forgings/disc/shaft sleeves
Sealing Surface RF FF RTJ TF GF LF LM
Flange Face Finish

Stock finish/spiral serrated/

concentric serrated/smooth finish

(Ra 3.2 and 6.3 micrometers)
125-250 AARH(it is called smooth finish)
250-500 AARH(it is called stock finish)
Coating Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade Nickel Alloy Steel

ASTM/ASME B/SB564 UNS N02200(NICKEL 200),

UNS N04400(MONEL 400),
UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600),

UNS N06601(INCONEL 601), UNS N06625(INCONEL 625),

UNS N10665(HASTELLOY B-2),

ASTM/ASME B/SB160 UNS N02201(NICKEL 201),

ASTM B/SB472 UNS N08020(Alloy 20)
Copper Alloy

ASTM/ASME B/SB151 UNS C70600(CuNi 90/10),

C71500(CuNi 70/30)
Stainless Steel

ASTM/ASME A/SA182 F304,304L,304H,309H,310H,

316,316H,316L,316LN,
317,317L,321,321H,347,347H
Duplex and Super Duplex Steel

ASTM/ASME A/SA182

F44,F45,F51,F53,F55,F60,F61
Carbon steel ASTM /ASME A/SA105(N)
Low Temp Carbon Steel ASTM/ASME A/SA350 LF2
High Yield Carbon Steel ASTM/ASME A/SA694 F52,F56 F60, F65, F70
Alloy Steel

ASTM/ASME A/SA182 GR F5,

F9, F11,F12,F22,F91
Titanium ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7

Type of Hastelloy B-2 Flanges

Hastelloy B-2 Slip On Flanges Hastelloy B-2 Raised Face Slip On Flanges
B-2 Alloy Slip On Plate Flanges
Hastelloy B-2 Slip On Flanges
Hastelloy UNS N10665 Slip On Flanges
Hastelloy WERKSTOFF NR. 2.4617 SORF Flanges
ASME SB564 Alloy B-2 Slip On Flanges
Hastelloy B-2 Weld Neck Flanges Hastelloy B-2 Raised Face Weld Neck Flanges
B-2 Alloy Weld Neck Flanges
B-2 Hastelloy Weld Neck Flange
Hastelloy UNS N10665 Weld Neck Flanges
Hastelloy WERKSTOFF NR. 2.4617 Weld Neck Flange
ASTM B564 Hastelloy B-2 WNRF Flange
Hastelloy B-2 Blind Flanges Hastelloy B-2 Raised Face Blind Flanges
B-2 Alloy Blind Flanges
Hastelloy B-2 Blind Flange
Hastelloy UNS N10665 Blind Flanges
Hastelloy WERKSTOFF NR. 2.4617 Blind Flange
ASTM B564 Hastelloy B-2 BLRF Flanges
Hastelloy B-2 Orifice Flanges Alloy B-2 Orifice Flanges
B-2 Hastelloy Orifice Flanges
B-2 Hastelloy Orifice Flanges
Hastelloy UNS N10665 Orifice Flanges
Hastelloy WERKSTOFF NR. 2.4617 Orifice Flanges
B564 B-2 Hastelloy Orifice Flanges
Hastelloy B-2 Socket weld Flanges Alloy B-2 Socket weld Flanges
B-2 Hastelloy Socket weld Flanges
B-2 Alloy Socket weld Flanges
Hastelloy UNS N10665 Socket weld Flanges
Hastelloy WERKSTOFF NR. 2.4617 SWRF Flanges
ASME B16.5 B-2 Hastelloy Socket weld Flanges
Hastelloy B-2 Threaded Flanges Hastelloy B-2 Threaded Flanges
B-2 Alloy Threaded Flanges
B-2 Hastelloy Threaded Flanges
Hastelloy UNS N10665 Threaded Flanges
Hastelloy WERKSTOFF NR. 2.4617 Threaded Flanges
ASTM B564 Hastelloy B-2 Threaded Flanges
Hastelloy B-2 Long weld Neck Flanges Hastelloy B-2 Long weld Neck Flanges
B-2 Alloy Long weld Neck Flanges
B-2 Hastelloy Long weld Neck Flanges
Hastelloy UNS N10665 Long weld Neck Flanges
Hastelloy WERKSTOFF NR. 2.4617 Long weld Neck Flanges
ASTM B564 Hastelloy B-2 Long weld Neck Flanges
Hastelloy B-2 RTJ Flanges Hastelloy B-2 Ring Type Joint Flanges
B-2 Alloy Ring Type Joint Flange
B-2 Hastelloy RTJ Flanges
Hastelloy UNS N10665 RTJ Flanges
Hastelloy WERKSTOFF NR. 2.4617 RTJ Flanges
BS4504 Hastelloy B-2 RTJ Flanges
Hastelloy B-2 Reducing Flanges Hastelloy B-2 Reducing Flanges
B-2 Alloy Reducing Flanges
B-2 Hastelloy Reducing Flange
Hastelloy UNS N10665 Reducing Flanges
Hastelloy WERKSTOFF NR. 2.4617 Reducing Flange
ASTM B564 Hastelloy B-2 Reducing Flanges
Hastelloy B-2 Forged Flanges Hastelloy B-2 Forged Flanges
B-2 Alloy Forged Flange
B-2 Hastelloy Forged Flange
Hastelloy UNS N10665 Forged Flanges
Hastelloy WERKSTOFF NR. 2.4617 Forged Flanges
ASTM B564 Hastelloy B-2 Forged Flanges

About Hastelloy B-2 Flanges

Hastelloy Alloy B-2 Pipe Flanges Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
B-2 0.010max 1.00max 0.08max 0.03max 2.50max 50.99min 14.50–16.50 4.00–7.00 15.00–17.00 0.04 max

Hastelloy B-2 Plate Flanges Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy B-2 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %

Equivalent Grades for B-2 Hastelloy Industrial Pipe Flanges

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy B-2 2.4617 N10665 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760

Hastelloy B-2 Flanges Test Certificates

We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.

• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc

ASTM, ASME Hastelloy B-2 Flanges Value Added Services

Material Testing:


We at Ganpat Industrial Corporation ensure that all our materials go through strict quality tests before dispatching them to our clients.

• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test

Documentation

• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
• Form A for the purposes of the Generalized System of Preferences (GSP)

Hastelloy B-2 Flanges Packaging

Hastelloy B-2 Flanges are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our Alloy B-2 Flange are manufactured in accordance with international standards. Hastelloy B-2 Pipe Flange are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Hastelloy B-2 Plate Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on B-2 Hastelloy Flanges.

Hastelloy B-2 Flanges Popular Searches

hastelloy flanges, hastelloy B-2 flange, hastelloy B-2 blind plate flanges, alloy B-2 raised face blind flanges, B-2 alloy lap joint flanges, hastelloy B-2 slip on plate flanges, alloy B-2 raised face socket weld flanges, alloy B-2 raised face threaded flanges, B-2 hastelloy raised face weld neck flanges, B-2 hastelloy raised face slip-on flanges, alloy B-2 industrial pipe flanges, hastelloy B-2 flanges specifications, alloy B-2 flange price list, hastelloy B-2 threaded pipe flange, hastelloy B-2 flange price, hastelloy B-2 flange dimensions, hastelloy B-2 pn16 flange dimensions, alloy B-2 flange class 150, hastelloy alloy B-2 flanges dimensions, alloy B-2 flanges manufacturer

ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665

Product Description

Material F304, 304L, F316, F316L, F321, 316Ti, 317L, 347, F5, F9, F11, F22, LF2, A105, 1.4541, 1.4571, 1.4404, 1.4307 and P250GH.
Size from 1/2"-84"
Standard ANSI, DIN, JIS, BS, SH, BS4504, EN1092-1, BS3293 and other standards.
type WN,SO,BL,SW,LJ,TH,
packing plywood case, pallet or according to customers’ requirements
certificate TUV&ABS, ISO9001:2000, Pressure Equipment Directive PED 97/23/EC, and BV and AD2000-Merkblatt WO
Sealing surface FF ,RF, LJ, FM ,R.T.J and so on


Why Choose Us

1.One-Stop Service,One Single Source.
2.No MOQ.
3.Best quality,competitive price
4.Fast Reply.
5.On-Time Delivery
6.Professional sales and technical team .

Product tags

astm a182 f12 steel flange

,

stainless steel f316l forged flange

,

a105 alloy steel flange
Send your message to this supplier
Send Now

ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665

Ask Latest Price
Product Detail
Brand Name :
BY
Model Number :
BYTH00018
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Contact Supplier
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665
ASME B16.5 Forged Threaded Nickel Alloy Pipe Flanges Hastelloy B 2 ASTM B564 UNS N10665

BoYue Industrial (Shanghai)Co., Ltd.

Active Member
6 Years
shanghai, shanghai
Since 2008
Business Type :
Manufacturer, Importer, Exporter, Trading Company, Seller
Main Products :
Steel Pipe Flange, Weld Neck Pipe Flanges, Socket Weld Pipe Flanges
Total Annual :
5000000-8000000
Employee Number :
300~500
Certification Level :
Active Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Threaded Pipe Flange
MachineU China Products Tools & Hardware Hardware Flanges
Contact Supplier
Submit Requirement
