Specifications
Brand Name :
BY
Model Number :
BYTH00018
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
10000 PC Per Month
Packaging Details :
Regular shipping packaging or depends on customer's requirement
Material Grade :
ASTM A105
Standard :
DIN,ANSI,ASME,JIS,GB
Application :
CHEMICAL /OIL/GAS/ENERGY
Technic :
Forged
Type :
Threaded
Size :
1/2"-48"
Material :
Carbon Steel Pipe Flange
Pressure :
150#300#600#900#1500#2500#
Description

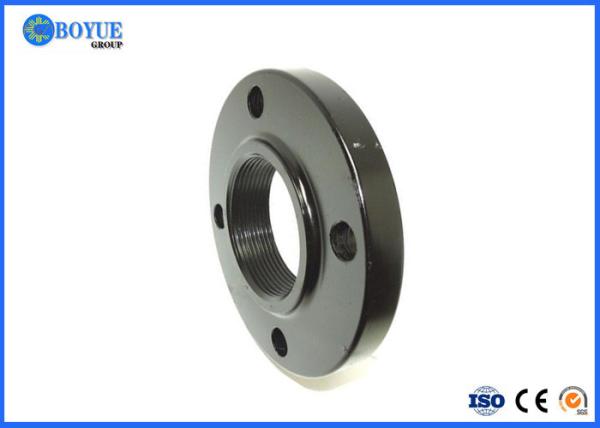

Forged Threaded Flange 6" 150# Carbon Steel Pipe Flange B16.5 A105N

Production Description :

ANSI/ASME FORGED FLANGES

  • MSS-SP-44 FLANGES/ANSI B 16.47 SERIES A
  • API TYPE 6A - RTJ Face Flanges.
  • API-605 FLANGES/ANSI B 16.47 SERIES B
  • A.G.A. ORIFICE UNIONS - Furnished with or without Hardware.
  • ASME BOILER CODE FLANGES
  • CL. 125 LIGHTWEIGHT FLANGES - For low pressure applications.
  • PLATE FLANGES - From 1/4" thru 8" Thick, Including AWWA C-207,and all other
    special designs.
  • ANSI LONG WELDNECKS & SPECIAL BODY CONNECTORS
  • SPECTACLE BLINDS
  • Special Ring Flanges

Steel Flanges
Material Carbon steel ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH
P250GH, P280GHM 16MN, 20MN ,20#
Stainless steel ASTM A182, F304/304L, F316/316L
Alloy steel ASTM A182 A182 F12,F11,F22,F5,F9,F91etc.
Standard ANSI Class 150 Flanges-Class 2500 Flanges
DIN 6Bar 10Bar 16Bar 25Bar 40Bar
JIS 5K Flanges-20K Flanges
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
TYPE 1.Welding neck Flange 2.Slip on
3.Blind flange 4.Long welding neck flange
5.Lap joint flange 6.Socket welding
7.Threaded flange 8.Flat flange
Surface Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized
Connection Welding, Threaded
Technical Forged, Casting
Size DN10-DN3600
Package

1.Standard export packaging (Plywood Case Outside,Plastic Cloth Inside).

2:As Customers' Requirements
Heat Treatment Normalizing, Annealing, Quenching+Tempering
Certificate API,ISO9001:2008;ISO14001:2004
Applications Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.


2: Company Information

Our company is a professional manufacturer and seller of flanges, pipe fittings and pipe.

3: Product Show

Forged Threaded Flange 6Forged Threaded Flange 6

4: Flange Process

Forged Threaded Flange 6

5:Flange Types

Forged Threaded Flange 6

AISI classification

Carbon steel is broken down into four classes based on carbon content:

Low-carbon steel

0.05 to 0.30% carbon (plain carbon steel) content.

Medium-carbon steel

Approximately 0.3–0.6% carbon content.Balances ductility and strength and has good wear

resistance; used for large parts, forging and automotive components.

High-carbon steel

Approximately 0.60 to 1.00% carbon content.Very strong, used for springs, edged tools, and high-

strength wires.

ASTM B 16.5

The B16.5 Standard defines the following:

(1) Dimensions

(2) Tolerances

(3) Materials

(4) Markings

(5) Pressure/Temperature Ratings

(6) Pressure Testing

ASME B16.5
Blind Lap Joint Slip On Socket Weld Threaded Weld Neck
Flange Dimensions Flange Dimensions Flange Dimensions Flange Dimensions Flange Dimensions Flange Dimensions
Class 150 Class 150 Class 150 Class 150 Class 150 Class 150
Class 300 Class 300 Class 300 Class 300 Class 300 Class 300
Class 400 Class 400 Class 400 Class 600 Class 400 Class 400
Class 600 Class 600 Class 600 Class 1500 Class 600 Class 600
Class 900 Class 900 Class 900 Class 900 Class 900
Class 1500 Class 1500 Class 1500 Class 1500 Class 1500
Class 2500 Class 2500 Class 2500 Class 2500 Class 2500

Product catalogue

Specification
Product Flange
Size 1/2"-72"
Type Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint,Spectacle Blind,Etc
Standard ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA,GOST,EN and GB
Class ANSI 150LBS-2500LBS,
DIN PN6-PN160
BS PN0.25-PN25 PN2.0-PN42.0
JIS 5K-30K
Materials Carbon Steel :A105,CT20,CT25,P245GH
Low Temperature Carbon Steel: ASTM SA350 LF2
High Strength Steel: ASTM SA694 F42/46/52/56/60/65/70
Stainless Steel ASTM A182 F304/304L/316/316L
Alloy Steel ASTM A182 F1/F5/F9/F11/F22/F91/Etc.
Duplex stainless steel ASTM A182 F51/F53/F55/F60
Nicke alloys Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
Cu-Ni 90/10,70/30
Process Free forging, plate cutting.
Printing Carbon steel and alloy steel with yellow print, black print, oil or zinc.
Packing Plywood case
Delivery Usually within one month after receiving the formal order .
Inspection Factory in-house or Third Party inspection available upon requests.

Forged Threaded Flange 6

Product Description

Material F304, 304L, F316, F316L, F321, 316Ti, 317L, 347, F5, F9, F11, F22, LF2, A105, 1.4541, 1.4571, 1.4404, 1.4307 and P250GH.
Size from 1/2"-84"
Standard ANSI, DIN, JIS, BS, SH, BS4504, EN1092-1, BS3293 and other standards.
type WN,SO,BL,SW,LJ,TH,
packing plywood case, pallet or according to customers’ requirements
certificate TUV&ABS, ISO9001:2000, Pressure Equipment Directive PED 97/23/EC, and BV and AD2000-Merkblatt WO
Sealing surface FF ,RF, LJ, FM ,R.T.J and so on


Why Choose Us

1.One-Stop Service,One Single Source.
2.No MOQ.
3.Best quality,competitive price
4.Fast Reply.
5.On-Time Delivery
6.Professional sales and technical team .
