Specifications
Brand Name :
BOYUE
Model Number :
ASTM B366, B366, C276, C276
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
58000PCS/Month
Delivery Time :
25
Packaging Details :
Plywood Case Of Outside,Plastic Cloth Of Inside
Standard :
ASME B16.9
Size :
DN80
Material :
ASTM B366, B366, C276, C276
Pressure :
Class150
Packing :
Plywood Case Of Outside,Plastic Cloth Of Inside
Price term :
CIF CFR FCA EX-WORK
Description

DN80 Class150 ASME B16.9 ASTM B366, C276, C276 SW Flange Hastelloy C276 Socket Weld Flange

UNS N10276 Hastelloy C276 Flanges are individually wrapped by hand to ensure that the high quality of the material is maintained and no damage in the last stages of production. We recommend Plywood cases or pallet packaging to ensure e packaging and prompt delivery of the ordered consignment. UNS N10276 Hastelloy C276 Flange come with imprints relevant to the job information (eg, heat number, size, material and part number).

Chemical Composition – Hastelloy C276 (UNS N10276)

C Co Cr Fe Mn Mo Ni P S Si V W
Max Max Max Max Max Max Max
0.01% 2.5% 14.5 – 16.5% 4 – 7% 1.0% 15 – 17% BAL .04% 0.03% 0.08% 0.35% 3 – 4.5%

Mechanical & Physical Properties Of Hastelloy C276 (UNS N10276)

Density 8.89 g/cm3
Melting Point 1370 °C (2500 °F)
Tensile Strength Psi – 1,15,000 , MPa – 790
Yield Strength (0.2%Offset) Psi – 52,000 , MPa – 355
Elongation 40 %

BOYUE TYPE Flange/Forgings/Discs/Rings/Shaft/Sleeves
Standard ANSI B16.5, ANSI B16.47, MSS SP-44 or as per the customers' request or drawing
Size 1/2''~72''
Class Rating 150#~2500#
Facing

RF(raised face);FF(flat face);RTJ(ring type joint);RJ(ring joint face)

TG(tongue and groove face);MFM(male and female face)
Manufacturing process Push, Press, Forge, Cast, etc.

Material

Carbon steel

Stainless steel

Alloy steel

Duplex stainless steel

Nickel alloy steel

 Carbon steel, stainless steel, alloy steel

ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70;

ASTM A105;

ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2;

ASTM A266 GR.1,GR.2,GR.3,GR.4

ASTM A182

F 304, 304L, 304H, 309S, 309H, 310S, 310H,316,

316Ti,316L,317, 317L, 321, 347,347H,348
ASTM A182 F5, F5a , F9, F11, F12, F22, F91;

Nickel Alloy Steel:

Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;

Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;

Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;

Alloy K-500/Monel K-500/NO5500/2.475;

Alloy 600/Inconel 600/NO6600/NS333/2.4816;

Alloy 601/Inconel 601/NO6001/2.4851;

Alloy 625/Inconel 625/NO6625/NS336/2.4856;

Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;

Alloy 800/Incoloy 800/NO8800/1.4876;

Alloy 800H/Incoloy 800H/NO8810/1.4958;

Alloy 800HT/Incoloy 800HT/NO8811/1.4959;

Alloy 825/Incoloy 825/NO8825/2.4858/NS142;

Alloy 925/Incoloy 925/NO9925;

Hastelloy C/Alloy C/NO6003/2.4869/NS333;

Alloy C-276/Hastelloy C-276/N10276/2.4819;

Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;

Alloy C-22/Hastelloy C-22/NO6022/2.4602;

Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;

Alloy B/Hastelloy B/NS321/N10001;

Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;

Alloy B-3/Hastelloy B-3/N10675/2.4600;

Alloy X/Hastelloy X/NO6002/2.4665;

Alloy G-30/Hastelloy G-30/NO6030/2.4603;

Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;

Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;

Alloy 31/NO8031/1.4562;

Alloy 901/NO9901/1.4898;

Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;

Inconel 783/UNS R30783;

NAS 254NM/NO8367;

Monel 30C

Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952

Nimonic 263/NO7263

Nimonic 90/UNS NO7090;

Incoloy 907/GH907;

Nitronic 60/Alloy 218/UNS S21800;

ASTM A182 F51/UNS S31803,

F53/UNS S32750,F55/UNS S32760

F904L/NO8904/1.4539;

254SMO/F44/S31254/1.4547

724L;725LN/310MoLN
Packing Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms L/C,T/T
Shipment FOB Tianjin/Shanghai, CFR, CIF etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Welcome to contact us.

BOYUE GROUP Co.,Ltd (12 years manufacturing experience)

DN80 Class150 ASME B16.9 ASTM B366, C276, C276 SW Flange Hastelloy C276 Socket Weld Flange

DN80 Class150 ASME B16.9 ASTM B366, C276, C276 SW Flange Hastelloy C276 Socket Weld Flange

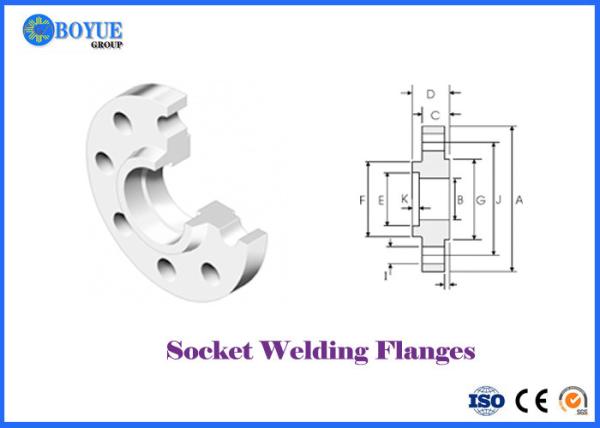

Class 1500 Socket Neck Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height Socket Depth PCD Socket Bore No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H J
1/2 15 120 22.3 38 32 34.9 7 10 82.6 22.2 4 3/4 110 7/8 M20 1.8
3/4 20 130 25.4 44 35 42.9 7 11 88.9 27.7 4 3/4 115 7/8 M20 2.3
1 25 150 28.6 52 41 50.8 7 13 101.6 34.5 4 7/8 125 1 M24 3.7
1 1/4 32 160 28.6 64 41 63.5 7 14 111.1 43.2 4 7/8 125 1 M24 4.1
1 1/2 40 180 31.8 70 44 73 7 16 123.8 49.5 4 1 140 1 1/8 M27 5.5
2 50 215 38.1 105 57 92.1 7 17 165.1 61.9 8 7/8 145 1 M24 9.8
2 1/2 65 245 41.3 124 64 105 7 19 190.5 74.6 8 1 160 1 1/8 M27 16.4
3 80 265 47.7 133 N/A 127 7 203.2 N/A 8 1 1/8 180 1 1/4 M30 21.8

Delivery:


Port:Tianjin/Shanghai/Ningbo
Lead Time :



Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15-30 To be negotiated



Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type SW/WN/SO/BL/TH Flanges
ModelNumber Steel Flange Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin

Commerce Clause


Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

Why Choose Us

1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
