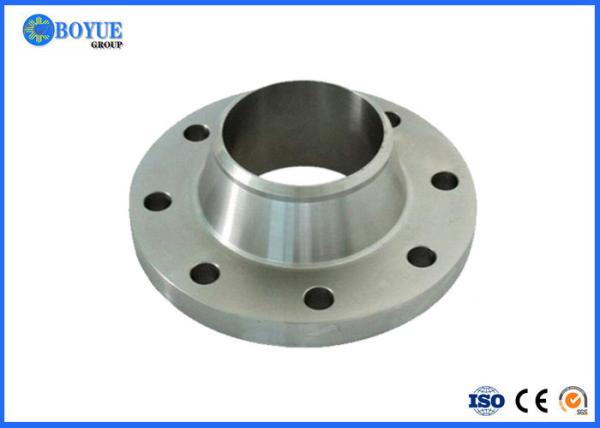

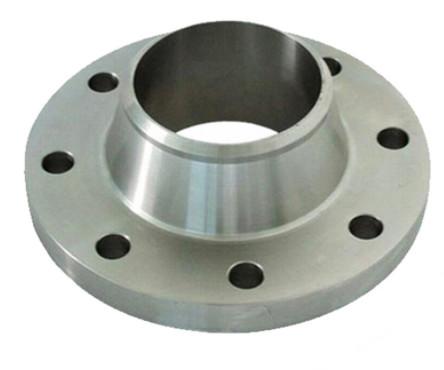

ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2 - 3 TUV Certification For Industrial
Specifications
Brand Name :
BOYUE
Model Number :
BYWN0013
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, D/P
Supply Ability :
1000T/Week
Delivery Time :
5-10 Work days
Packaging Details :
wooden packing
Name :
Weld Neck Pipe Flanges
Material :
Alloy Steel
Size :
2"-12"
Wall thick :
Sch5~Sch160\XXS
Manufacturing process :
Push,Press,Forge,Cast,etc.
Standard :
ASME B16.5
Description

ASTM A182 F304 UNS S30400 SW Flange 150# - 1500# 1/2" - 3" TUV Certification For Industrial

ASTM A182 F304 Stainless Steel Socket Weld Flanges in specific standards & size at Factory Rate

Socket Weld pipe flanges are typically provided with a raised face, flat face, or RTJ facing. When a raised face is necessary for socket weld pipe flanges, the standard height is 1/16" for socket weld pipe flanges under 400#. For socket weld pipe flanges of 400# and up, the standard socket weld pipe flange raised face height is 1/4".

Steber Steel manufactures socket weld pipe flanges in all steel material grades, including carbon socket weld pipe flanges, stainless steel socket weld pipe flanges and alloy socket weld pipe flanges. Steber Steel also has many different socket weld pipe flanges in stock and ready to ship.

Specialized in manufacturing:

ASTM A182 F304 Stainless Steel Socket Weld Flanges

Larger sizes available

To ANSI/ASME B16.5 standards

To BS10 table E standards

To EN1092-1 Standards (Was BS4504)

Sizes 1/2" to 8" (DN15 to DN200)

Higher pressures available

To BS4504 & DIN standards

PN16 & ASA 150 LB rated

ASTM A182 F304 Stainless Steel Flanges Composition


Typical compositional ranges for grade 304 stainless steels are given in table 1.

Composition ranges for 304 grade stainless steel

Grade C Mn Si P S Cr Mo Ni N
304 min. – – – – – 18.0 – 8.0 –
max. 0.08 2.0 0.75 0.045 0.030 20.0 10.5 0.10
304L min. – – – – – 18.0 – 8.0 –
max. 0.030 2.0 0.75 0.045 0.030 20.0 12.0 0.10
304H min. 0.04 – – – – 18.0 – 8.0 –
max. 0.10 2.0 0.75 0.045 0.030 20.0 10.5

ASTM A182 F304 Stainless Steel Flanges Mechanical Properties


Typical mechanical properties for grade 304 stainless steels are given in table 2.

Mechanical properties of 304 grade stainless steel

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201
304L 485 170 40 92 201
304H 515 205 40 92 201
304H also has a requirement for a grain size of ASTM No 7 or coarser.

ASTM A182 F304 Stainless Steel Flanges Physical Properties


Typical physical properties for annealed grade 304 stainless steels are given in table 3.

Physical properties of 304 grade stainless steel in the annealed condition

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity(W/m.K) Specific Heat 0-1000C(J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
304/L/H 8000 193 17.2 17.8 18.4 16.2 21.5 500 720

ASTM A182 F304 Stainless Steel Flanges Grade Specification Comparison
Approximate grade comparisons for 304 stainless steels are given in table 4.

Grade specifications for 304 grade stainless steel

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304
304L S30403 304S11 – 1.4306 X2CrNi19-11 2352 SUS 304L
304H S30409 304S51 – 1.4948 X6CrNi18-11 – –
These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.

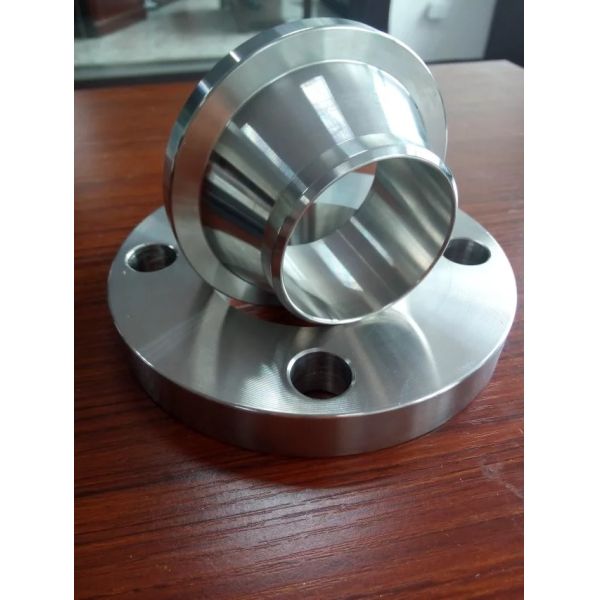

ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2

ASTM A182 F304 UNS S30400 Weld Neck Flange 150# - 1500# 1/2

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ASME B16.5 Type Weld Neck Flange
ModelNumber

A182 Stainless Steel

 Thickness Sch40s,Sch80s,sch160
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:30000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally ply wooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Price: Depending on quantity
Minimum Order Quantity 1 PCS
Payment Terms: T/T or Western Union or LC
Supply Ability: 3,0000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

In Detail

A182 Stainless Steel Flanges
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size 1/2"-100", SCH5S-SCH160, XS, XXS, STD
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI, ISO, ASME, DIN, ASTM, AISI
Surface pickling, annealing, bright, sand blast, hair line
Type Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange
Connection type Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small Tongue, Groove.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Specialized in ASTM A182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316L, 316Ti, 316L, 317, 317L, 321, 347, 347H, 348, 254SMO, UNS S31254, UNS 8020, F45, S30815, F46, S30600, F904L, A182 F56, S33228, F58, S31266, F62, N08367,
ASTM A182 F5, F5a , F9, F11, F12, F22, F91;
ASTM A182 F51/UNS S31803, F53/UNS S32750, F55/UNS S32760
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
