Specifications
Brand Name :
BoYue
Model Number :
BYWN000031
Certification :
ISO,BV,SGS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000pcs per month
Delivery Time :
10-100 days depending on quantity
Packaging Details :
PLY-WOODEN CASE OR PALLET
SIZE :
1/2"-24" DN10-DN1000
PROCESS :
FORGED
CLASS RATING :
150#-2500#, PN6-PN100
SEALING FACE :
RF FF RTJ
FACE FINISH :
SMOOTH /STOCK FINISH
PRODUCT NAME :
150#-2500# 1/2"-24" MONEL 400 FLANGE AS PER ASME B16.5
APPLICATION :
CHEMICAL /OIL/GAS/ENERGY
STANDARD :
ANSI/ASTM/ASME
Description

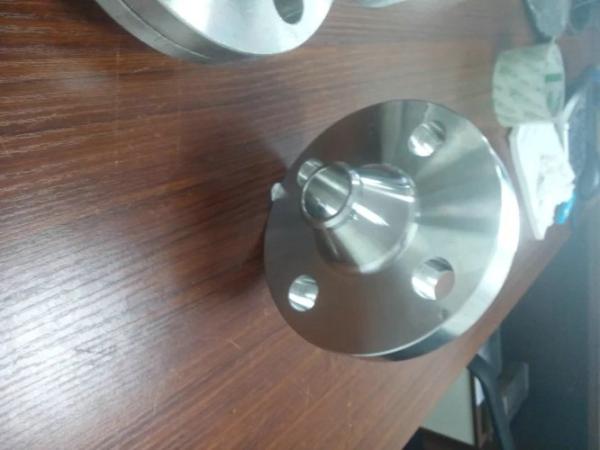

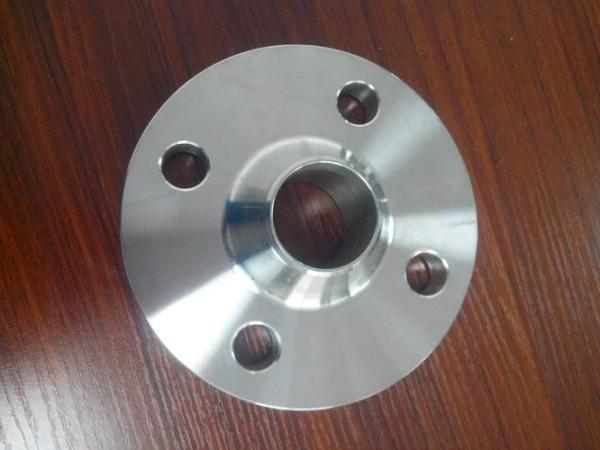

ASTM B564 N08811 Weld Neck Pipe Nickel Alloy Flanges ASME B16.5 1 / 2" 300# For Boiler

1. ASME/ANSI B16.5 provides

.weld neck

.slip-on

.socket weld

.threaded

.lap joint

3blind

2. Flange dimensions for pipes ranging 1/2" to 24" - in classes ranging 150 to 2500.

.Steel Pipe Dimensons - Schedule 40

.Steel Pipe Dimensions - Schedule 80

Nominal Pipe Size
NPS
(inches)		 Class 300
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-3/4 4 1/2 0.62 2-5/8
3/4 4-5/8 4 5/8 0.75 3-1/4
1 4-7/8 4 5/8 0.75 3-1/2
1-1/4 5-1/4 4 5/8 0.75 3-7/8
1-1/2 6-1/8 4 3/4 0.88 4-1/2
2 6-1/2 8 5/8 0.75 5
2-1/2 7-1/2 8 3/4 0.88 5-7/8
3 8-1/4 8 3/4 0.88 6-5/8
3-1/2 9 8 3/4 0.88 7-1/4
4 10 8 3/4 0.88 7-7/8
5 11 8 3/4 0.88 9-1/4
6 12-1/2 12 3/4 0.88 10-5/8
8 15 12 7/8 1 13
10 17-1/2 16 1 1.12 15-1/4
12 20-1/2 16 1-1/8 1.25 17-3/4
14 23 20 1-1/8 1.25 20-1/4
16 25-1/2 20 1-1/4 1.38 22-1/2
18 28 24 1-1/4 1.38 24-3/4
20 30-1/2 24 1-1/4 1.38 27
24 36 24 1-1/2 1.62 32

3. Other Types of Incoloy 800 Flanges

Incoloy 800 Slip On Flanges Incoloy 800 Raised Face Slip On Flanges
800 Alloy Slip On Plate Flanges
Incoloy 800H Slip On Flanges
Incoloy UNS N08800 Slip On Flanges
Incoloy WERKSTOFF NR. 1.4876 45 SORF Flanges
ASME SB564 Alloy 800 Slip On Flanges
Incoloy 800 Weld Neck Flanges Incoloy 800 Raised Face Weld Neck Flanges
800 Alloy Weld Neck Flanges
800HT Incoloy Weld Neck Flange
Incoloy UNS N08810 Weld Neck Flanges
Incoloy WERKSTOFF NR. 1.4958 Weld Neck Flange
ASTM B564 Incoloy 800H WNRF Flange
Incoloy 800 Blind Flanges Incoloy 800 Raised Face Blind Flanges
800 Alloy Blind Flanges
Incoloy 800HT Blind Flange
Incoloy UNS N08811 Blind Flanges
Incoloy WERKSTOFF NR. 1.4859 Blind Flange
ASTM B564 Incoloy 800H BLRF Flanges
Incoloy 800 Orifice Flanges Alloy 800 Orifice Flanges
800 Incoloy Orifice Flanges
800H Incoloy Orifice Flanges
Incoloy UNS N08800 Orifice Flanges
Incoloy WERKSTOFF NR. 1.4876 Orifice Flanges
B564 800H Incoloy Orifice Flanges
Incoloy 800 Socket weld Flanges Alloy 800 Socket weld Flanges
800HT Incoloy Socket weld Flanges
800H Alloy Socket weld Flanges
Incoloy UNS N08810 Socket weld Flanges
Incoloy WERKSTOFF NR. 1.4958 SWRF Flanges
ASME B16.5 800 Incoloy Socket weld Flanges
Incoloy 800 Threaded Flanges Incoloy 800 Threaded Flanges
800H Alloy Threaded Flanges
800HT Incoloy Threaded Flanges
Incoloy UNS N08800 Threaded Flanges
Incoloy WERKSTOFF NR. 1.4876 Threaded Flanges
ASTM B564 Incoloy 800 Threaded Flanges

4. Incoloy Alloy 800 Pipe Flanges Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr Al Ti
800 0.06 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60ᴬ 0.15 – 0.60ᴬ

Incoloy 800 Plate Flanges Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
800 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %

Equivalent Grades 800 Incoloy Industrial Pipe Flanges

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 – X8NiCrAlTi32-21 XH32T

5. Incoloy 800 Flanges Price List

800 Incoloy Flanges
US $1.8-159 / Piece (FOB Price)

Alloy 800 Pipe Flanges
US $1500-1800 / Ton (FOB Price)

Incoloy 800 Weld Neck Flanges
US $100-2500 / Ton (FOB Price)

ASTM B564 Incoloy Alloy 800 plate flanges
US $1-500 / Ton (FOB Price)

800 Alloy Pipe Flanges
US $999-1499 / Ton (FOB Price)

ASTM B564 N08811 Weld Neck Pipe Nickel Alloy Flanges ASME B16.5 1 / 2

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type Welding Neck Flanges
ModelNumber Inconel 601 Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
