Specifications
Brand Name :
BY
Model Number :
BYCS00005
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PC/MONTH
Delivery Time :
15 working days
Packaging Details :
In wooden case, pallets or as per customers’ requirement
Product Name :
Slip On Flange
Product Type :
FF/RF RTJ
Standard :
ASME B16.5
Material Grade :
Nickel Alloy
Description

Incoloy 800 BY Steel Pipe Nickel Alloy Flanges Bleed Ring Drip Ring Test Ring ISO Standard

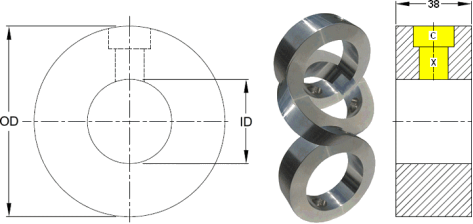

1. DIMENSIONS BLEED RINGS - NPS 1 TO NPS 12
ASME 31.3, B16.5, B16.20

Incoloy 800 BY Steel Pipe Nickel Alloy Flanges Bleed Ring Drip Ring Test Ring ISO Standard

NPS ID Pressure Class
150 300 600 900 1500
1 28.6 63.5 69.9 69.9 76.2 76.2
1.1/2 41.3 82.6 92.1 92.1 95.3 95.3
2 54 101.6 108 108 139.7 139.7
2.1/2 63.5 120.7 127 127 161.9 161.9
3 79.4 133.4 146.1 146.1 165.1 171.5
4 104.8 171.5 177.8 190.5 203.2 206.4
6 155.6 219.1 247.7 263.5 285.8 279.4
8 203.2 276.2 304.8 317.5 355.6 349.3
10 257.2 336.6 358.8 396.9 431.8 431.8
12 304.8 406.4 419.1 450.9 492.1 514.4

Notes:

Dimensions are in millimeters unless otherwise indicated.

C - 1/2 inch or 3/4 inch threaded or socket weld taps are standard. Multiple taps can be provided but must be orientated by customer. Thickness of ring may be affected if larger taps are required.

X - Depending on the inside diameter of pipe or fitting.

Standard finish of gasket surface shall be machined to 125-250 Serrated finish. Other surface finish must be specified by customer.

2. Useful Information for Incoloy 800HT:

N08811 | 1.4959 / 1.4876 | NA 15(HT) | X8NICRALTI32-21 | XH32T | ЭИ670 | NCF 800HT

Incoloy 800 is an alloy having essentially higher creep rupture durability. The alloy has lower carbon content and with the small additions of aluminium and titanium gives excellent performance at wide temperature range.

Specifications

STANDARD ASTM B564 Incoloy 800HT
UNS N08811
WERKSTOFF NR. 1.4859 / 1.4876
EN X8NiCrAlTi32-21
BS NA 15(HT)
OR XH32T
GOST ЭИ670
JIS NCF 800HT
AFNOR –

Physical Properties

DENSITY (G/CM 3) 7.94
DENSITY (LB/IN 3) 0.287
MELTING POINT (°C) 1357 – 1385
MELTING POINT (°F) 2475 – 2525

Chemical Composition

ELEMENT ASTM B564 Incoloy 800HT
NI 30.00 – 35.00
CU 0.75 max
FE 39.50 min
MN 1.50 max
C 0.06 – 0.10
SI 1.00 max
S 0.015 max
CR 19.00 – 23.00
AL 0.15 – 0.60ᴬ
TI 0.15 – 0.60ᴬ

3. ASTM B564 Incoloy 800 Flanges Latest Price List

Inconel Flanges
FOB Price: USD $5.0-100.0 / Piece

Inconel 600 Flanges
FOB Price: USD $0.098-42 / Piece

Inconel 601 Flanges
FOB Price: USD $10-50 / Piece

Inconel 625 Flanges
FOB Price: USD $10-3800 / Piece

Incoloy 800 Flanges
FOB Price: USD $1-30 / Kilogram

Incoloy 800H Flanges
FOB Price: USD $10-3900 / Piece

ASTM B564 Incoloy 800HT Flanges
FOB Price: USD $10-4100 / Piece

Incoloy 825 Flanges
FOB Price: USD $10-3800 / Piece

Hastelloy Flanges
FOB Price: USD $10-50 / Piece

Hastelloy C276 Flanges
FOB Price: USD $1-30 / Kilogram

Hastelloy C22 Flanges
FOB Price: USD $5.0-100.0 / Piece

Hastelloy B2 Flanges
FOB Price: USD $0.098-42 / Piece

Hastelloy X Flanges

Below is a list of Inconel Flanges that Ashtapad Overseas handles:

Inconel 600 Flanges

Inconel 601 Flanges

Inconel 617 Flanges

Inconel 625 Flanges

Inconel 690 Flanges

Inconel 700 Flanges

Inconel 702 Flanges

Inconel 706 Flanges

Inconel 713C Flanges

Inconel 713LC Flanges

Inconel 718 Flanges

Inconel 722 (W) Flanges

Inconel 738LC Flanges

Inconel X-750 Flanges

Inconel 792 Flanges

You may also interested to buy:

Inconel Flanges

Inconel 600 Flanges

Inconel 601 Flanges

Inconel 625 Flanges

Incoloy 800 Flanges

Incoloy 800H Flanges

ASTM B564 Incoloy 800HT Flanges

Incoloy 825 Flanges

Inconel Pipe Fittings

Inconel Seamless Pipe

Inconel Seamless Tube

Inconel Welded Pipe

Inconel Welded Tube

Incoloy 800 BY Steel Pipe Nickel Alloy Flanges Bleed Ring Drip Ring Test Ring ISO Standard

Product Attribute

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

HASTELLOY B-2

Specification
Product Flange
Size 1/2"-72"
Type Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint,Spectacle Blind,Etc
Standard ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA,GOST,EN and GB
Class ANSI 150LBS-2500LBS,
DIN PN6-PN160
BS PN0.25-PN25 PN2.0-PN42.0
JIS 5K-30K
Materials Carbon Steel :A105,CT20,CT25,P245GH
Low Temperature Carbon Steel: ASTM SA350 LF2
High Strength Steel: ASTM SA694 F42/46/52/56/60/65/70
Stainless Steel ASTM A182 F304/304L/316/316L
Alloy Steel ASTM A182 F1/F5/F9/F11/F22/F91/Etc.
Duplex stainless steel ASTM A182 F51/F53/F55/F60
Nicke alloys Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
Cu-Ni 90/10,70/30
Process Free forging, plate cutting.
Printing Carbon steel and alloy steel with yellow print, black print, oil or zinc.
Packing Plywood case
Delivery Usually within one month after receiving the formal order .
Inspection Factory in-house or Third Party inspection available upon requests.

Incoloy 800 BY Steel Pipe Nickel Alloy Flanges Bleed Ring Drip Ring Test Ring ISO Standard

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
