ASME B16.5 Lap Joint Flange , Duplex Stainless Steel 316L Stub End Flange

Specifications

Brand Name :

Model Number :

BYLJ00004

Certification :

SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin :

China

MOQ :

1 pcs

Price :

Negotiable

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

10000 PC Per Month

Delivery Time :

10 Work days

Packaging Details :

Regular shipping packaging or depends on customer's requirement

Material :

Alloy Steel

Standard :

ASME B16.5

Technic :

Forged

Thickness :

SCH 80S

Material Grade :

Nickel alloy 200 Nickel 200 UNS N02200

Type :

RF/FF/MFF/LF/LM/RJ/TG/TF/GF

Description

ASME B16.5Lap Joint Flange Duplex Stainless Steel 316L Stub End Lap Joint Flange 150# / 300#

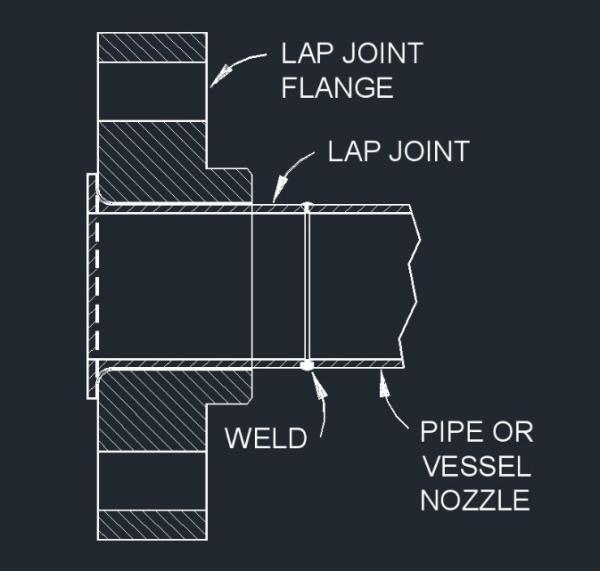

Why use the lap joint flange?

Lap joint flange can swivel around the stub end and pipe lining. When the piping system is assemble and disassemble frequently, it is better to use a Lap joint flange. It means the flange can work even the two flanges bolt holes are misalignment .

In a corrosive situation, the flange joints need to be exchange very soon. To a lap joint flange, only the stub end is touch with the pipe and fluid , the backing flange no need to touch it . It means you could only replace the stub end , no need to replace the backing flange , so the lap joint flange can decrease the cost of the piping systems.

The backing flange and the stub end is separated , so we can use two different materials for the two pieces. it can work for more complicated application.

duplex stainless steel 316L lap joint flange dimension

PRODUCT TYPES	Flanges: Weld Neck flange, Slip On flange, Blind flange, Threaded flange, Socket Weld flange, Lap Joint flange, Ring Joint flange, Plate flange, Spectacle blind, LWN, Tube Sheet, Orifice flange, Anchor flange.
PRODUCT TYPES	Pipe Fittings: Elbow LR/SR, 45°/90°/180°;Tee Straight/Reducing; Reducer Concentric/Eccentric; Cross; Cap; Saddle
STANDARDS	ANSI B16.5; ANSI/ASME B16.9; ASME B16.11; ASME B16.47, AWWA C207; EN1092-1; DIN; GOST; JIS B2220; JIS B2311; BS4504; BS10; UNI; SABS 1123
MATERIALS	Carbon Steel: Flanges:-ASTM A105/105N; A36; A694 F42-F70; A350 LF1/LF2; P235GH; P245GH; P250GH; P265GH; P280GH; ST37.2; S235JR; C22.8; CT20; CT3; SS400; SF390A; SF440A; Pipe Fittings: ASTM A234 WPB; ST35.8; P265GH; JIS G3452; SS400; CT20; 09T2C;
	Stainless Steel: Flanges: ASTM A182 F304/304L; F316/316L; F321; F51; 12X18H10T; 10X17H13M2T; SUS F304/F304L; F316/F316L; 1.4301;1.4306; 1.4401; 1.4404; 1.4521; 1.4571; Pipe Fittings: A403 WP304/304L; WP316/316L; WP317/317L; WP321; 1.4301;1.4306; 1.4401; 1.4404; 1.4521; 1.4571; SUS304/304L; SUS316/316L; SUS321; 08X18H10; 03X18H11; 12X18H10T; 10X17H13M; 10X17H13M2T
	Alloy Steel: ASTM A182 F11/F12/F22; 09T2C; 15X5M; SFVA F1/F1A
PRESSURE	150LB-2500LB; PN6-PN300; 1K-30K;
WALL THICKNESS	SCH5,SCH10S,SCH10,SCH20,SCH30,STD,SCH40,XS,SCH60, SCH80,SCH100,SCH120,SCH140,SCH160,XXS
SIZE	DN10-DN3000; 1/2"-144"; 10A-1500A;
SURFACE FINISH	Electroplate; H.D.G.; Yellow paint; Black Paint; Anti-rust oil

Dimensions Lap Joint Flanges & Stud Bolts ASME B16.5

NPS 1/2 - ID = 22.9 - r = 3

CL	150	300	600	900	1500	2500
DIA A	30	38	38	38	38	43
DIA D	90	95	95	120	120	135
THK B	11.2	14.3	14.3	22.3	22.3	30.2
DIA K	60.3	66.7	66.7	82.6	82.6	88.9
H	16	22	22	32	32	40
NO. L	4	4	4	4	4	4
DIA L	15.9	15.9	15.9	22.2	22.2	22.2

Stud Bolts Diameter x Length
DIA (in)	1/2	1/2	1/2	3/4	3/4	3/4
Len mm	55	65	75	110	110	120

Other Diameters
NPS	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2
	3	3.1/2	4	6	8	10	12
	14	16	18	20	24

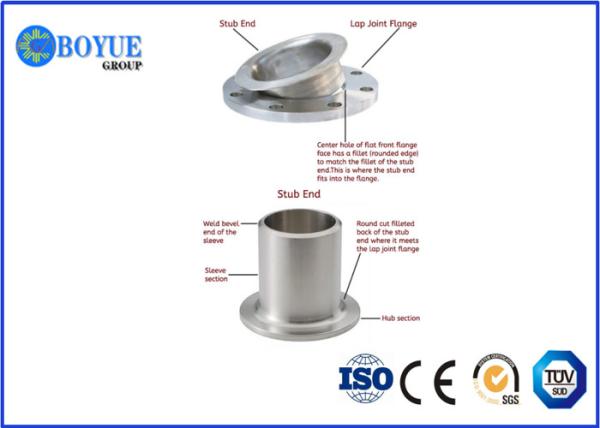

How to match lap joint flange and stub end?

Types: Lap Joint
Sizes: 1/2" - 36" +
Bores: S/5s - XXH
Pressures: 150 - 300 - 600
Alloys: Stainless - Carbon - Aluminum

ASME B16.5 Lap Joint Flange , Duplex Stainless Steel 316L Stub End Flange

Product Attribute

Place of Origin	China	Brand Name	BOYUE
Standard	ASME B16.5	Type	lap joint flange
Material	Carbon Steel/Stainless Steel/Alloy Steel	Thickness	#150,#300,#600.#900
Packing	Ply-Wood Cases	Payment	30%TT+70% Balance

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity:	1pcs
Price:	Depending on quantity
Payment Terms:	T/T or Western Union or LC
Supply Ability:	40000pcs per month
Delivery Time:	10-100 days depending on quantity
Packaging Details:	PLY-WOODEN CASE OR PALLET

Why Choose Us

1. One-Stop Service,One Single Source.

2. No MOQ.

3. Best quality,competitive price

4. Fast Reply.

5. On-Time Delivery

6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
