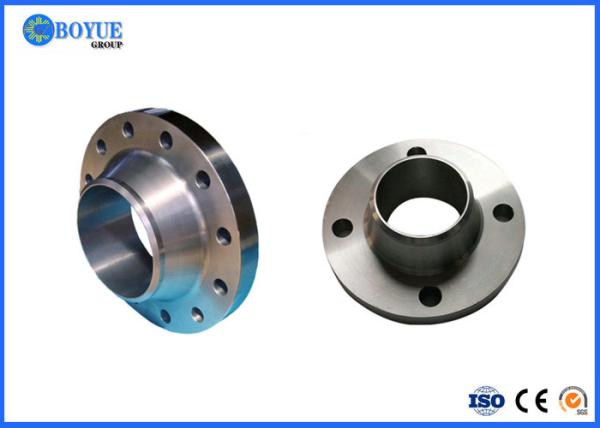

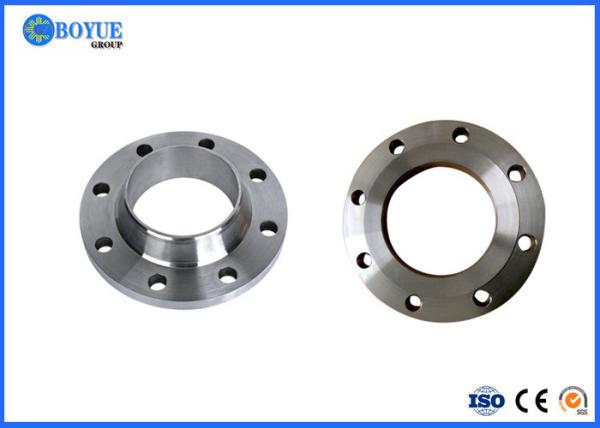

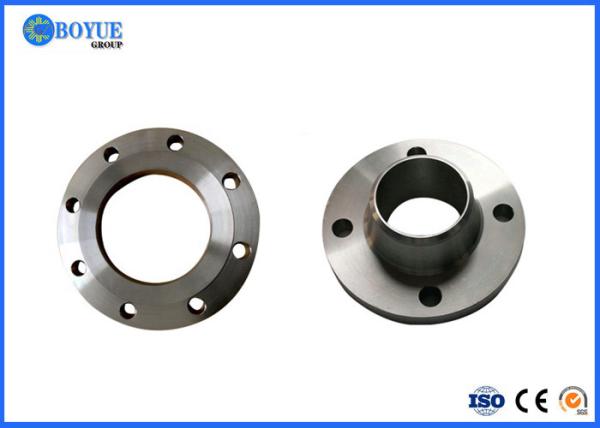

Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing
Specifications
Brand Name :
BoYue
Model Number :
Hastelloy C22, C-276, MONEL 400, INCONEL 600, INCONEL 625, INCOLOY 800, INCOLOY 825
Certification :
SGS/BV/ABS/LR/TUV/
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000pcs per month
Delivery Time :
20 work days
Packaging Details :
PLY-WOODEN CASE OR PALLET
SIZE :
1/2" - 24"
PROCESS :
FORGED
CLASS RATING :
Class150/300/600 etc
SEALING FACE :
RTJ/FF/RF
FACE FINISH :
SMOOTH /STOCK FINISH
PRODUCT NAME :
Steel Pipe Flange
APPLICATION :
CHEMICAL /OIL/GAS/ENERGY
STANDARD :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Description

Forged Mechanical Nickel Alloy Flanges WN RF Flange With Hot Dip Galvanizing SIZE 2'-24'

Steel Flanges

Pipe Flanges are widely used as a popular category of pipe fittings. A flange is used to mechanically connect two pipes together. It can also be used to mechanically connect a pipe to a tee, valve, choke or any other piece of equipment. Flanges are available in round, square, and rectangular shapes. In some cases, flanges are usually in the shape of a ring or a plate to form a rim at the end of a pipe when fastened to the pipe. This is an example of closet flange. A flange can also be a plate for covering or closing the end of a pipe. This is a blind flange. Thus, flanges are considered to be projecting or internal components which are used to support mechanical parts. They are like rims which are used to strengthen the mechanical part or they are a means of attaching that part to another part or surface.		 Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing

We exports various forged and plate flanges in large diameter with different grades. We produce using high quality of steel to make them last for many years.

We offer high quality and superior performance steel flanges for various requirements of our clients. Designed as per market standards and parameters. Our flanges are high in durability and can withstand extreme conditions. Our comprehensive range includes weld neck flanges, socket weld flanges, steel weld flanges, steel weld neck flanges and many more.

Flanges Types:

  • Slip On - SORF Flanges
  • Weld Neck - WNRF Flanges
  • Socket Weld - SWRF Flanges
  • Blind - BLRF Flanges
  • Lapped Joint Flanges
  • Screwed Flanges
  • Long Weld Neck Flanges
  • Reducing Flanges
  • Spectacle Flanges
  • Ring Joint Flanges

FLANGES STANDARD:

  • ASTM FLANGES
  • BS FLANGES
  • DIN FLANGES
  • IS FLANGES

Product Range:

WNRF Flanges Size : 1/8" NB TO 48"NB.

WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Stainless Steel WNRF Flanges: ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181

Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276,ALLOY 8020 , ALLOY 8028 , ALLOY 8367

Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal

WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10

Value Added Services

  • Hot Dip Galvanizing ,
  • Epoxy Coating.

Test Certificate

Manufacturer Test Certificate as per EN 10204 / 3.1B

Mechanical Nickel Alloy Raised Face Weld Neck Flange With Hot Dip Galvanizing

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type Welding Neck Flanges
ModelNumber Steel Flange Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance


Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

Why Choose Us

1. One-Stop Service,One Single Source.

2. No MOQ.

3. Best quality,competitive price

4. Fast Reply.

5. On-Time Delivery

6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
