Specifications
Brand Name :
BY
Model Number :
BYBL00014
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 PC Per Month
Delivery Time :
10 Work days
Packaging Details :
Regular shipping packaging or depends on customer's requirement
Material :
Nickel alloy/stainless steel/duplex stainless
Standard :
ASME B 16.5
Technic :
Forged
Size :
2"-24"
Pressure :
Class150/300/600/900
Thickness :
SCH40S-SCH160
Material Grade :
Nickel Base Alloy
Type :
Slip on Flange, weld neck flange, Threaded flange, Integral Flange, Blind Flange
Description

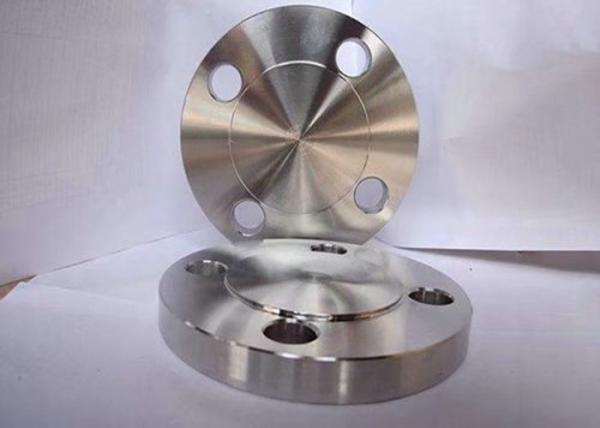

ASTM B564 UNS N06022 Hastelloy Blind Pipe Flanges DIN2527 PN6-PN100 Size 2'-24'

1. Specification of DIN2527 Blind Flange

Material Grade:Carbon Steel: A105N

Stainless Steel:304,304L,316,316L,UNS31803Etc.

Inconel alloy steel: 600, 625, 800, 825

Pipe Flange Neck Raised Face Bolts

Arropx.

Weight (kg)
DN

d1

DIN

(ISO)*

 D b k h1

d3

DIN

(ISO)

 s r h2 d4 f # Dia. of Bolt d2

Weld-

ing Nack

 Slip- on Blind
Welding Nack Slip-on Blind
10

14

(17.2)

 90 16 - 16 60 35

25

(28)

 1.8 4 6 40 2 4 M12 1/2" 14 0.66 0.72 0.62
15

20

(21.3)

 95 16 16 16 65 38

30

(32)

 2 4 6 45 2 4 M12 1/2" 14 0.76 0.81 0.74
20

25

(26.9)

 105 18 18 18 75 40

38

(40)

 2.3 4 6 58 2 4 M12 1/2" 14 1.06 1.24 1.05
25

30

(33.7)

 115 18 18 18 85 40

42

(45)

 2.6 4 6 68 2 4 M12 1/2" 14 1.3 1.38 1.31
32

38

(42.4)

 140 18 18 18 100 42

52

(56)

 2.6 6 6 78 2 4 M16 5/8" 18 1.88 2.03 1.82
40

44.5

(48.3)

 150 18 18 18 110 45

60

(64)

 2.6 6 7 88 3 4 M16 5/8" 18 2.33 2.35 2.11
50

57

(60.3)

 165 20 20 20 125 48

72

(75)

 2.9 6 8 102 3 4 M16 5/8" 18 2.82 3.20 2.91
65 76.1 185 22 22 22 145 52 90 2.9 6 10 122 3 8 M16 5/8" 18 3.74 4.29 4.13
80 88.9 200 24 24 24 160 58 105 3.2 8 12 138 3 8 M16 5/8" 18 4.75 5.88 5.21
100 108 (114) 235 24 24 24 190 65

128

(134)

 3.6 8 12 162 3 8 M20 3/4" 23 6.52 7.54 7.08
125

133

(139)

 270 26 26 26 220 68

155

(162)

 4 8 12 188 3 8 M24 7/8" 27 9.07 10.8 10.4
150

159

(168)

 300 28 28 28 250 75

182

(192)

 4.5 10 12 218 3 8 M24 7/8" 27 11.8 14.5 13.9
200

216

(219)

 375 34 34 34 320 88 244 6.3 10 16 285 3 12 M27 1" 30 21.5 27.2 26.2
250

267

(273)

 450 38 38 38 385 105

298

(306)

 7.1 12 18 345 3 12 M30 1-1/8" 33 34.9 43.8 43.1
300

318

(323)

 515 42 42 42 450 115 362 8 12 18 410 4 16 M30 1-1/8" 33 49.7 63.3 62.2
350

368

(355)

 580 46 46 46 510 125 408 8.8 12 20 460 4 16 M33 1-1/4" 36 68.1 89.5 87.2
400

419

(406)

 660 50 50 50 585 135 462 11 12 20 535 4 16 M36 1-3/8" 39 99.7 127 124
500

521

(508)

 755 52 52 52 670 140 562 14.2 12 20 615 4 20 M39 1-3/8" 42 117 172 168

2. Material Overview

HASTELLOY Alloy C-22 is a nickel-chromium-molybdenum alloy with enhanced resistance to pitting, crevice corrosion and stress corrosion cracking. It resists the formation of grain boundary precipitates in the weld-heat affected zone making it suitable for use in the as-welded condition. C-22 has outstanding resistance to both reducing and oxidizing media and because of its resistibility can be used where "upset" conditions are likely to occur. It is proven to possess excellent weldability and high corrosion resistance as consumable filler wires and electrodes. The alloy has proven results as a filler wire in many applications. As filler wire use when other corrosion resistant wires have failed.

C-22 can easily be cold-worked because of its ductility and cold-forming is the preferred method of forming. More energy is required because the alloy is generally stiffer than austenitic stainless steels. 0.28" thick sheet in the heat-treated at 2050°F, rapid quenched condition, has an average olsen cup depth of 0.49".

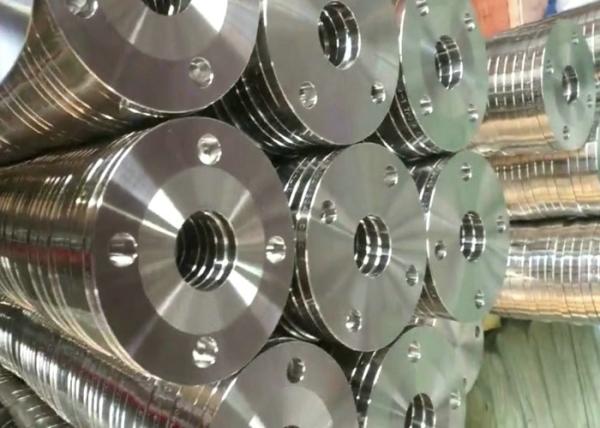

ASTM B564 UNS N06022 Hastelloy Blind Pipe Flanges DIN2527 PN6-PN100 Size 2'-24'

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ASME B16.5 Type Blind Flange
ModelNumber Hastelloy Thickness #150,#300,#600.#900
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Product Description:

Name Forged Blind Flange
Standard ANSI B16.5, ANSI B16.47
Material Grade

Carbon Steel: A105N

Stainless Steel:304,304L,316,316L,UNS31803Etc.

Inconel alloy steel: 600, 625, 800, 825
Outer Diameter 1/2"-80", DN6-DN2400
Pressure CLASS 150LB -CLASS 3000LB
Technology Forged flange
Surface As customer request
Application Pipeline and valves connection
MOQ 1 piece
Productivity 40000 Pieces/Month
Payment term Any payment term is acceptable.
Packing Wooden case or pallet packing.
Delivery 5 days

ASTM B564 UNS N06022 Hastelloy Blind Pipe Flanges DIN2527 PN6-PN100 Size 2'-24'

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
