Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime
Specifications
Brand Name :
BoYue
Model Number :
BYSP00001
Certification :
ISO,BV,SGS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000pcs per month
Delivery Time :
10-100 days depending on quantity
Packaging Details :
PLY-WOODEN CASE OR PALLET
SIZE :
1/2" - 24"
PROCESS :
FORGED
CLASS RATING :
150#300#600#900#1500#2500#
FACE FINISH :
SMOOTH /STOCK FINISH
PRODUCT NAME :
150#-2500# 1/2"-24"
STANDARD :
DIN,ANSI,ASME,JIS,GB
Description

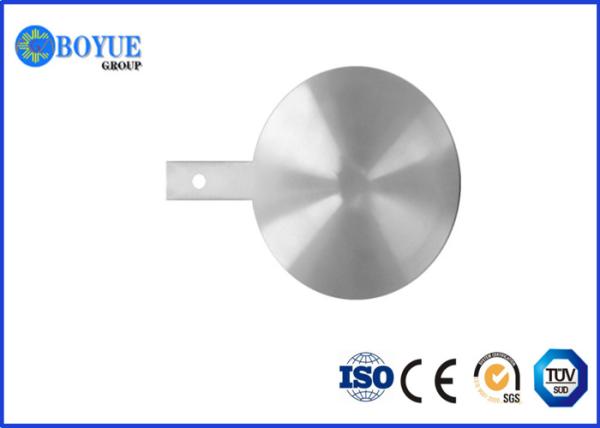

Forged Inconel 600 Spade Nickel Alloy Flanges Forgings 600 UNS N06600 Size 2'-24'

1. inconel 600 Flange alloy 600 Disc UNS N06600 Ring DIN 2.4816 Shaft

2. Inconel 600 Flanges Size & Specification

Product name Inconel 600 Flanges
Specification ASTM / ASME SB 564 / 160 / 472
Inconel UNS Grade Inconel 600 (UNS N06600, Alloy 600, 2.4816),
Flanges Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size ½" to 36"
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

3. ASTM B564 Inconel 600 Flanges Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00

4.ASTM B564 Inconel 600 Flanges mechanical properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %

5. Types of Inconel 600 Flanges

Inconel 600 Flanges Inconel Flanges
Inconel 600 Pipe Flanges Inconel Alloy 600 Flanges
Inconel Alloy 600 Welding Neck Flange Inconel 600 Forged Flanges
Inconel 600 Slip on Flange ASTM B564 Inconel 600 Plate Flanges
Inconel 600 Blind Flange Distributor ASME B16.5 Inconel 600 High Hub Blind Flange
600 Inconel Socket Weld Flanges Manufacturer ASME SB564 Inconel 600 Lap Joint Flanges
ASTM B564 Inconel 600 Threaded Flanges Inconel UNS N06600 RTJ Flange
600 Inconel Alloy ASME Flanges Alloy 600 ANSI Flanges
Inconel Alloy 600 Reducing Flanges Inconel 600 Long Weld Neck Flanges
Inconel DIN 2.4816 Orifice Flange ANSI B16.5 Inconel 600 WNRF Flange Supplier
Inconel 600 Spectacle Blind Flanges Stockist 600 Alloy Screwed Flanges
Inconel NCF 600 SORF Flanges Inconel 600 BLRF Flanges Stockiest
Inconel 600 Ring Type Joint Flanges Exporter Inconel 600 DIN Flanges Dealer

Forged Nickel Alloy Flanges , Inconel 600 Flanges Durable Long Service Lifetime

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ASME B16.5 Type TH/WN /BL/LJF Flange
ModelNumber Inconel 625 Alloy Thickness #600 #900 #1500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Product Description

Material F304, 304L, F316, F316L, F321, 316Ti, 317L, 347, F5, F9, F11, F22, LF2, A105, 1.4541, 1.4571, 1.4404, 1.4307 and P250GH.
Size from 1/2"-84"
Standard ANSI, DIN, JIS, BS, SH, BS4504, EN1092-1, BS3293 and other standards.
type WN,SO,BL,SW,LJ,TH,
packing plywood case, pallet or according to customers’ requirements
certificate TUV&ABS, ISO9001:2000, Pressure Equipment Directive PED 97/23/EC, and BV and AD2000-Merkblatt WO
Sealing surface FF ,RF, LJ, FM ,R.T.J and so on

Why Choose Us

1. One-Stop Service,One Single Source.

2. No MOQ.

3. Quality,competitive price

4. Fast Reply.

5. On-Time Delivery

6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
