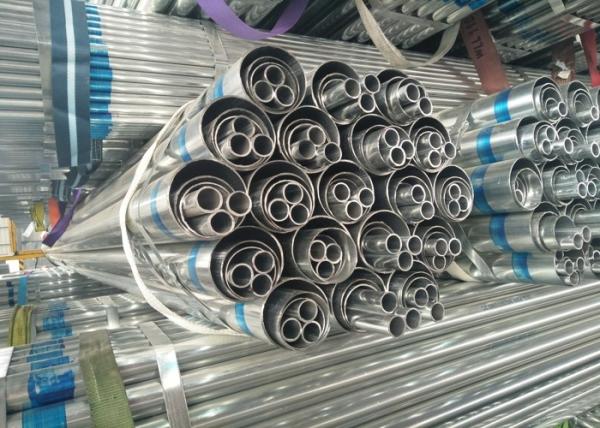

A213T11 A213T12 A213T22 A192 A106 Galvanized Coated Carbon Steel Boiler Tubes 1/2'-48'
Specification:
Standard:
ASTM A 106M, ASTM A 192M, ASTM A213M, GB/T 5310, JIS G3461
Brand:
A213T11, A213T12, A213T22, A192, A106, A53, etc
Description:
Carbon steel pipe can be divided into seamless steel pipe, straight steel pipe, spiral steel pipe, high frequency welded steel pipe and so on.Carbon steel seamless steel pipe is a kind of long steel.
The pipe has a hollow section and is used in a large number of pipelines for fluid transportation, such as those for oil, natural gas, gas, water and some solid materials.
Generally, the outer diameter of hot-rolled seamless pipe is greater than 32mm, the wall thickness is 2.5-75mm, the outer diameter of cold-rolled seamless pipe can be up to 6mm, the wall thickness can be up to 0.25mm, and the outer diameter of thin-walled pipe can be up to 5mm, the wall thickness is less than 0.25mm, and the precision of cold rolling is higher than that of hot rolling.
General carbon steel pipe: it is made of 16Mn, 5MnV and other low-alloy structural steels, such as 10, 20, 30, 35, 45, 45 etc.Seamless pipes made of mild steel such as 10 and 20 are mainly used for fluid transportation pipes.The seamless pipe made of medium carbon steel such as 45 and 40Cr is used to make mechanical parts, such as mechanical parts of cars and tractors.Carbon steel tubes are generally used for strength and flattening tests.The hot-rolled steel pipe is delivered in the hot-rolled or heat-treated condition;Cold rolling is delivered as heat treatment.
Chemical
Grade | C | Si | Mn | S | P | Cr | Mo | |
Standard | size | max | ||||||
ASTM A 192M ASME SA-192M | A192 SA-192 | 0.06 ~ 0.18 | ≤0.25 | 0.27 ~ 0.63 | 0.020 | 0.025 | ||
ASTM A106M ASME SA-106 | A 106B SA-106B | ≤0.30 | ≥0.10 | 0.29 ~ 1.06 | 0.020 | 0.025 | ||
A 106C SA-106C | ≤0.35 | ≥0.10 | 0.29 ~ 1.06 | 0.020 | 0.025 | |||
ASTM A213M ASME SA-213M | A213 T11 SA-213 T11 | 0.05 ~ 0.15 | 0.50 ~ 1.00 | 0.30 ~ 0.60 | 0.020 | 0.025 | 1.00 ~ 1.50 | 0.44 ~ 0.65 |
A213 T12 SA-213 T12 | ≤0.15 | ≤0.50 | 0.30 ~ 0.61 | 0.020 | 0.025 | 0.80 ~ 1.25 | 0.44 ~ 0.65 | |
JIS G3461 | STB 340 | ≤0.18 | ≤0.35 | 0.30 ~ 0.60 | 0.020 | 0.025 | ||
GB 5310 | 20G | 0.17 ~ 0.23 | 0.17 ~ 0.37 | 0.35 ~ 0.65 | 0.015 | 0.025 |
Standard | Grade | Tensile strength (MPa) | yield strength | elongation | Impact energy | Hardness |
ASTM A106M ASME SA-106 | A 106B SA-106B | ≥415 | ≥240 | ≥30 | ||
A 106C SA-106C | ≥485 | ≥275 | ≥30 | |||
ASTM A 192M ASME SA-192M | A192 SA-192 | ≥325 | ≥180 | ≥35 | 77HRB(137HBW) | |
ASTM A213M ASME SA-213M | A213 T11 SA-213 T11 | ≥415 | ≥205 | 85HRB(163)HBW | ||
A213 T12 SA-213 T12 | ≥415 | ≥205 | 85HRB(163)HBW | |||
JIS G3461 | STB 340 | ≥340 | ≥175 | ≥35 | ||
GB 5310 | 20G | 410~550 | ≥245 | ≥22 | ≥27 |

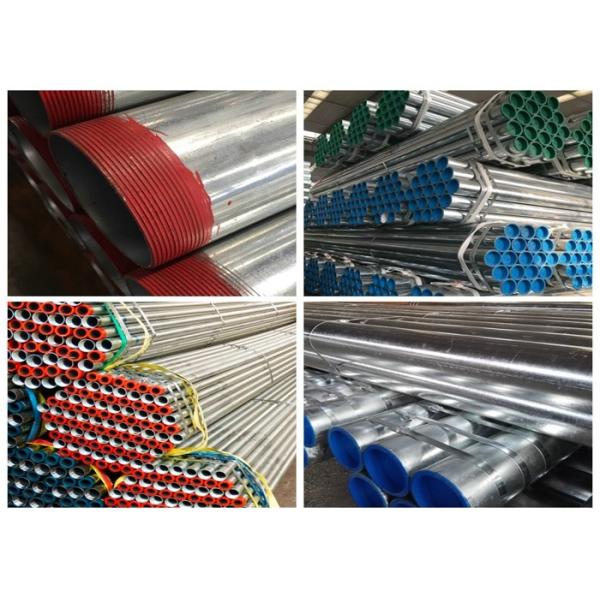

Product Show:
Place of Origin | China | Brand Name | BOYUE |
Standard | ANSI, ISO, ASME, DIN, ASTM | Type | Seamless |
ModelNumber | Carbon Steel Pipe | Thickness | SCH 5-SCH XXS |
Packing | Depending on customer | Payment | 30%TT+70% Balance |
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin
Commerce Clause
Minimum Order Quantity: | 1pcs |
Price: | Depending on quantity |
Payment Terms: | T/T or Western Union or LC |
Supply Ability: | 40000 ton per month |
Delivery Time: | 10-100 days depending on quantity |
Packaging Details: | Depending on customer |
Why Choose Us
1.One-Stop Service,One Single Source.
2.No MOQ.
3.Best quality,competitive price
4.Fast Reply.
5.On-Time Delivery
6.Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
