Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Specifications
Brand Name :
BY
Model Number :
BYAS00009
Certification :
ABS, GL, DNV, NK,/SGS, BV, CCIC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 ton per Month
Delivery Time :
5-8 work days
Packaging Details :
PLY-WOODEN CASE OR PALLET
Product Name :
Hot Dip Galvanized Tube
OD :
1/2"-48”
Type :
Seamless or welded
Thickness :
SCH 5-SCH XXS
Standard :
AISI, DIN, GB, JIS10、20、20G、20MnG、25MnG、15CrMoG、12Cr2MoG、12Cr1MoVG、10Cr9Mo1VNb
Prodcut :
steel pipe tube
Description

Hot Dip Galvanized Tube Large Calibers For High Pressure Boilers And Petrochemical OD1/2'-48'

Description:

Carbon steel pipe is divided into hot rolling and cold rolling (drawing) steel pipe.

Hot rolled carbon steel pipe, low, medium pressure boiler steel tube, high pressure boiler tube, alloy steel tube, stainless steel pipe, petroleum cracking pipe, geological steel pipe and other steel pipe, etc.

Cold-rolled (dial) carbon steel pipe in addition to general steel tube, low medium pressure boiler pipe, high pressure boiler tube, alloy steel, stainless steel pipe, oil cracking pipe, steel pipe, other include carbon thin wall steel tube, alloy thin wall steel pipes, thin-walled stainless steel tube, steel tube.Generally greater than 32 mm hot rolled seamless steel tube diameter, wall thickness 2.5 75 mm, to 6 mm cold rolled seamless steel tube diameter, wall thickness to 0.25 mm, to 5 mm thin wall pipe diameter, wall thickness less than 0.25 mm, cold than hot rolled high dimensional accuracy.

Standards:


GB3087 GB5310—— China national standards
ASME SA106 —— American Boiler and Pressure Vessel norms
ASME SA333 —— American Boiler and Pressure Vessel norms
ASME SA335 —— American Boiler and Pressure Vessel norms

Chemical Composition:

Standards Steel pipes No. Chemical composition(%)
C Si Mn P S Cr Mo Cu Ni V Al Nb N
GB3087 10 0.07～0.13 0.17～0.37 0.38～0.65 ≤0.030 ≤0.030 0.3～0.65 / ≤0.25 ≤0.30 / /
20 0.17～0.23 0.17～0.37 0.38～0.65 ≤0.030 ≤0.030 0.3～0.65 / ≤0.25 ≤0.30 / /
GB5310 20G 0.17～0.24 0.17～0.37 0.35～0.65 ≤0.030 ≤0.030 ≤0.25 ≤0.15 ≤0.20 ≤0.25 ≤0.08
20MnG 0.17～0.25 0.17～0.37 0.70～1.00 ≤0.030 ≤0.030 ≤0.25 ≤0.15 ≤0.20 ≤0.25 ≤0.08
25MnG 0.23～0.27 0.17～0.37 0.70～1.00 ≤0.030 ≤0.030 ≤0.25 ≤0.15 ≤0.20 ≤0.25 ≤0.08
15CrMo 0.12～0.18 0.17～0.37 0.40～0.70 ≤0.030 ≤0.030 0.80～1.10 0.40～0.55 ≤0.20 ≤0.30
12Cr2MoG 0.08～0.15 ≤0.50 0.40～0.70 ≤0.030 ≤0.030 2.00～2.50 0.90～1.20 ≤0.20 ≤0.30
12Cr1MoV 0.08～0.15 0.17～0.37 0.40～0.70 ≤0.030 ≤0.030 0.90～1.20 0.25～0.35 ≤0.20 ≤0.30 0.15～0.30

10Cr9Mo

1VNb

 0.08～0.12 0.20～0.50 0.30～0.60 ≤0.020 ≤0.010 8.00～9.50 0.85～1.05 ≤0.20 ≤0.40 0.18～0.25 ≤0.015 0.06～0.10 0.03～0.07
ASME SA106 SA106B 0.17～0.25 ≥0.1 0.70～1.00 ≤0.030 ≤0.030
SA106C 0.23～0.27 ≥0.1 0.70～1.00 ≤0.030 ≤0.030
ASME SA333 SA333Ⅰ 0.09～0.12 / 0.7～1.00 ≤0.020 ≤0.010
SA333Ⅵ 0.09～0.12 ≥0.1 0.9～1.10 ≤0.020 ≤0.010
ASME SA335 SA335 P11 0.05～0.15 0.50～1.0 0.30～0.60 ≤0.030 ≤0.030 1.00～1.50 0.50～1.00
SA335 P12 0.05～0.15 ≤0.50 0.30～0.61 ≤0.030 ≤0.030 0.80～1.25 0.44～0.65
SA335 P22 0.05～0.15 ≤0.50 0.30～0.60 ≤0.030 ≤0.030 1.90～2.60 0.87～1.13
SA335 P5 ≤0.15 ≤0.50 0.30～0.60 ≤0.030 ≤0.030 4.00/ 0.45/
6 0.65
SA335 P91 0.08～0.12 0.20～0.50 0.30～0.60 ≤0.020 ≤0.010 8.00～9.50 0.85～1.05 ≤0.40 0.18～0.25 ≤0.015 0.06～0.10 0.03～0.07
SA335 P92 0.07～0.13 ≤0.50 0.30～0.60 ≤0.020 ≤0.010 8.50～9.50 0.30～0.60 ≤0.40 0.15～0.25 ≤0.015 0.04～0.09 0.03～0.07

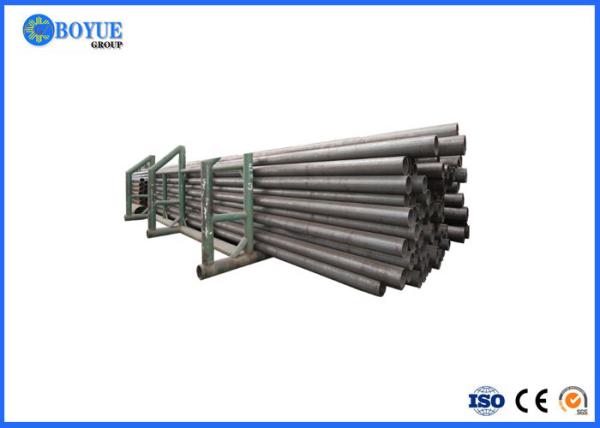

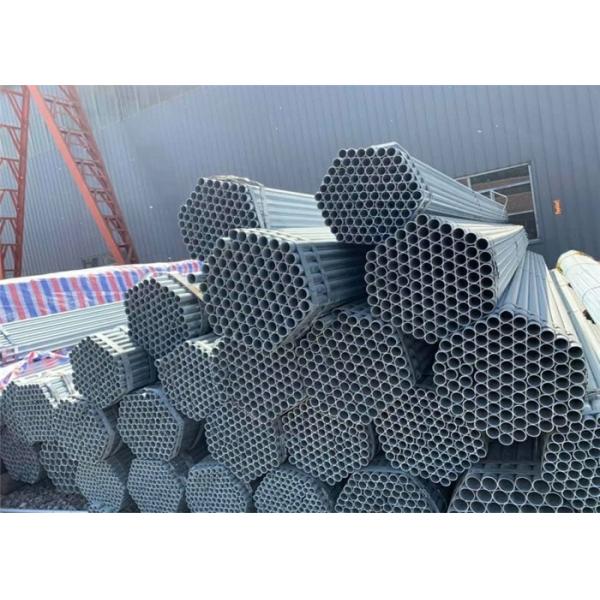

Product show:

Large Calibers Hot Dip Galvanized Tube For High Pressure Boilers / Petrochemical
Application:
Used for mechanical parts such as lever, shaft sleeve, screw, lifting hook, crankshaft, transmission shaft, gear, worm, key, pin and so on.It can also be used for carburizing and cyaniding parts with high surface hardness and small core strength requirement

Place of Origin

 China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type

Seamless
ModelNumber Hot Dip Galvanized Tube Thickness SCH 5-SCH XXS
Packing Depending on customer Payment 30%TT+70% Balance


Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000 ton per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: Depending on customer



Why Choose Us

1.One-Stop Service,One Single Source.
2.No MOQ.
3.Best quality,competitive price
4.Fast Reply.
5.On-Time Delivery
6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
