Specifications
Brand Name :
BY
Model Number :
BYAS00040
Certification :
CE, ISO, BV, SGS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 ton per Month
Delivery Time :
5-8 work days
Packaging Details :
PLY-WOODEN CASE OR PALLET
Product Name :
Steel Pipe
OD :
1/2"-48”
Type :
Seamless or welded
Thickness :
SCH 5-SCH XXS
Standard :
ASTM, AISI, JIS, DIN, EN, GB
Prodcut :
steel pipe tube
Description

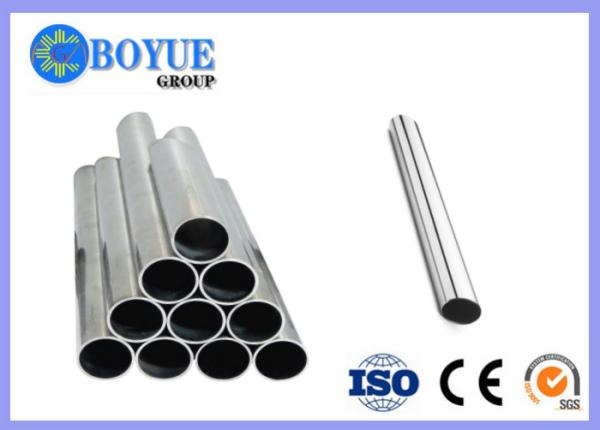

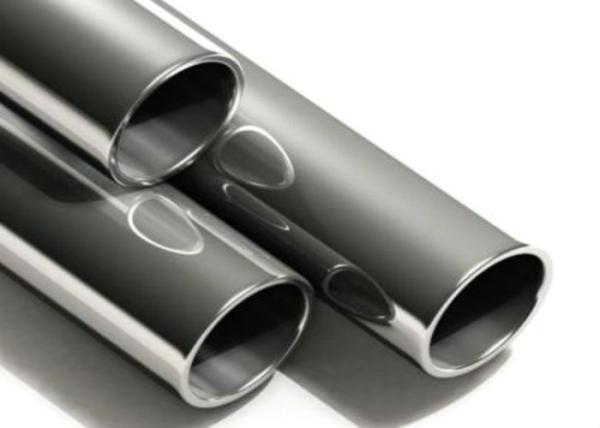

ASTM A312 TP304L/1.4301 / 1.4306 / 1/4307 Stainless Steel Seamless Pipe Screen OD1/2'-48'

ABS, BV, GL, DNV, NK certificated stainless steel pipe, ASTM A312 / A213-10a, TP304H, TP310H, TP316H, TP321H, TP347H , TP316Ti,904L ,317L Stainless Steel Seamless Pipe With Random Length

BOYUE GROUP deal with stainless steel seamless pipe and tube already more than 10 years, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 45 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.

ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS

Standard Specification:

ASTM A213 / A213M - 11a:Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

ASTM A511 / A511M - 12:Standard Specification for Seamless Stainless Steel Mechanical Tubing

ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service

ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe

DIN 17456-2010:GENERAL PUROSE SEAMLESS CIRCULAR STAINLESS STEEL TUBES.

DIN 17458-2010:Seamless Circular of Austenitic Stainless Steel Tube

EN10216-5 CT 1/2 : Stainless Steel Seamless Pipe & Tube

GOST 9941-81:SEAMLESS COLD- AND WARM-WORKED TUBES MADE OF CORROSION RESISTANT STEEL.

Others like BS, JIS standard or can supply

Material Grade:

American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
Russia Standard 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ.

Chemical Composition
SS 304 304N 304LN
Ni 8 – 11 8 – 11 8 – 11
Fe Balance
Cr 18 – 20 18 – 20 18 – 20
C 0.08 max 0.08 max 0.035 max
Si 0.75 max 0.75 max 0.75 max
Mn 2 max 2 max 2 max
P 0.040 max 0.040 max 0.040 max
S 0.030 max 0.030 max 0.030 max
N 　 0.10 – 0.16 0.10 – 0.16

STAINLESS STEEL TP304 / H / L / N / LN
AISI 304 / 304H / 304L / 304N / 304LN
UNS S30400 / S30409 / S30403 / S30451 / S30453
Werkstoff Nr. 1.4301 / 1.4306 / 1.4948 / 1.4311
Mechanical & Physical Properties 　
Density 8.0 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35%

Size Range:

Production Outside Diameter Wall Thickness
Seamless Pipe 6.00mm to 830mm 0.5mm to 48mm

Final Finishing:

Solution Annealed & Pickled


ASTM A312 TP304L/1.4301 / 1.4306 / 1/4307 Stainless Steel Seamless Pipe Screen OD1/2'-48'

Place of Origin

 China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type

Seamless
ModelNumber

Seamless Steel Pipe

 Thickness SCH 5-SCH XXS
Packing Depending on customer Payment 30%TT+70% Balance


Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000 ton per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: Depending on customer



Why Choose Us

1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
