304L Stainless Steel Slip On Pipe Flanges Duplex Steel Flanges RF FF TF RTJ PN40 DN10-DN1000
304L Stainless Steel Slip On Pipe Flanges Duplex Steel Flanges RF FF TF RTJ PN40 DN10-DN1000
Specifications
Brand Name :
BOYUE
Model Number :
BYSO00016
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, D/P
Supply Ability :
1000T/Week
Delivery Time :
5-10 Work days
Packaging Details :
wooden packing
Name :
SO Pipe Flanges
Material :
Alloy Steel
Size :
2"-12"
Pressure :
DN10-DN1000
Manufacturing process :
Push,Press,Forge,Cast,etc.
Standard :
ASME B16.5
Description

304L Stainless Steel Slip On Pipe Flanges Duplex Steel Flanges RF FF TF RTJ PN40 DN10-DN1000

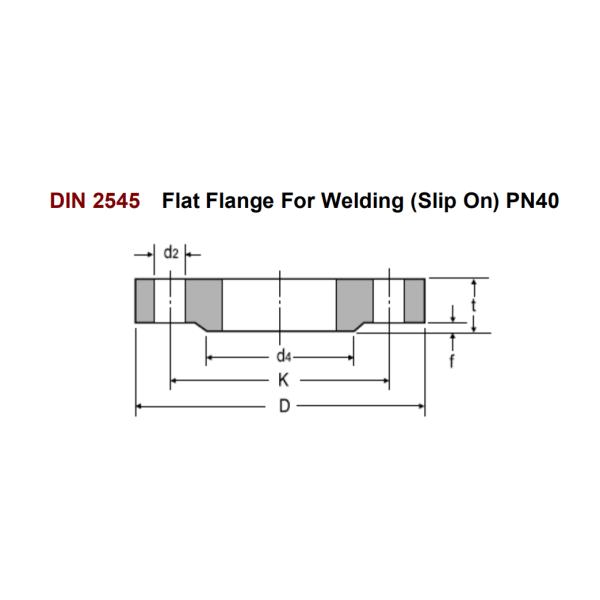

1. Flange Specification:
304L Stainless Steel Slip On Pipe Flanges Duplex Steel Flanges RF FF TF RTJ PN40 DN10-DN1000

DN ISO DIN d 4 D t f KØ No.of Holes d 2 KG
10 17.2 14 40 90 - 2 60 4 14 0.63
15 21.3 20 45 95 14 2 65 4 14 0.72
20 26.9 25 58 105 16 2 75 4 14 1.01
25 33.7 30 68 115 16 2 85 4 14 1.23
32 42.4 38 78 140 16 2 100 4 18 1.8
40 48.3 44.5 88 150 16 3 110 4 18 2.09
50 60.3 57 102 165 18 3 125 4 18 2.88
65 76.1 - 122 185 18 3 145 4 18 3.66
80 88.9 - 138 200 20 3 160 8 18 4.77
100 114.3 108 158 220 20 3 180 8 18 5.65
125 139.7 133 188 250 22 3 210 8 18 8.42
150 168.3 159 212 285 22 3 240 8 23 10.4
200 219.1 216 268 340 24 3 295 12 23 16.1
250 273 267 320 405 26 3 355 12 27 24.9
300 323.9 318 378 460 28 4 410 12 27 35.1
350 355.6 368 438 520 30 4 470 16 27 47.8
400 406.4 419 490 580 32 4 525 16 30 63.5
500 508 521 610 715 36 4 650 20 33 102
600 609.6 622 725 840 40 5 770 20 36 -
700 711.2 720 795 910 - 5 840 24 36 -
800 812.8 820 900 1025 - 5 950 24 39 -
900 914.4 920 1000 1125 - 5 1050 28 39 -
1000 1016 1020 1115 1255 - 5 1170 28 42 -

2.304L Stainless Steel escription


Type 304L stainless steel is an extra-low carbon version of the 304 steel alloy. The lower
carbon content in 304L minimizes deleterious or harmful carbide precipitation as a result
of welding. 304L can, therefore, be used "as welded" in severe corrosion environments,
and it eliminates the need for annealing.
This grade has slightly lower mechanical properties than the standard 304 grade, but is
still widely used thanks to its versatility. Like Type 304 stainless steel, it's commonly used
in beer-brewing and wine-making, but also for purposes beyond the food industry such as
in chemical containers, mining and construction. It is ideal for use in metal parts such as
nuts and bolts that are exposed to salt water.

3.304L Stainless Steel SO Flange Packaging

304L Stainless Steel SO Flanges are widely used in various industries including petrochemical, oil and
gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper
manufacturing, textiles and others. All our 304L Stainless Steel SO Flanges are manufactured in
accordance with international standards. 304L Stainless Steel SO Flanges are packaged to ensure that
there is no damage during transit. In case of exports, standard export packaging is done in wooden cases.
All 304L Stainless Steel SO Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On
special requests we can also, make custom marking on 304L Stainless Steel SO Flanges.

4.Delivery:


Port:
Tianjin/Shanghai/Ningbo
Lead Time :

Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15-30 To be negotiated


5.Documentation


• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
• Form A for the purposes of the Generalized System of Preferences (GSP)

304L Stainless Steel Slip On Pipe Flanges Duplex Steel Flanges RF FF TF RTJ PN40 DN10-DN1000

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ASME B16.5 Type SO Flange
ModelNumber Duplex Stainless Steel Thickness Sch40s,Sch80s,sch160
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:30000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally ply wooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Price: Depending on quantity
Minimum Order Quantity 1 PCS
Payment Terms: T/T or Western Union or LC
Supply Ability: 3,0000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
