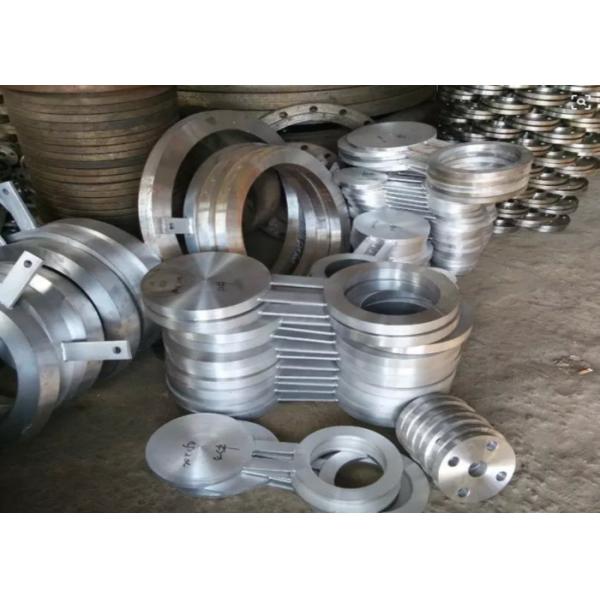

Duplex 2205 ASME B 16.48 Spectacle Blind Flange , 6 Inch Alloy Steel Flanges Class 1500
Duplex 2205 ASME B 16.48 Spectacle Blind Flange , 6 Inch Alloy Steel Flanges Class 1500
Specifications
Brand Name :
BoYue
Model Number :
BYSP00012
Certification :
ISO,BV,SGS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000pcs per month
Delivery Time :
10-100 days depending on quantity
Packaging Details :
PLY-WOODEN CASE OR PALLET
SIZE :
1/2" - 24"
PROCESS :
FORGED
CLASS RATING :
150#300#600#900#1500#
SEALING FACE :
RF FF RTJ
FACE FINISH :
SMOOTH /STOCK FINISH
PRODUCT NAME :
150#-2500# 1/2"-24" MONEL 400 FLANGE AS PER ASME B16.5
APPLICATION :
CHEMICAL /OIL/GAS/ENERGY
STANDARD :
ANSI/ASTM/ASME
Description

ASME B 16.48 Duplex 2205 Spectacle Blind Flange Paddle Alloy Steel Flanges Class 1500 Size 6'

1.SPECTACLE BLIND TYPES Duplex 2205 Paddle blind Spacer ring spectacle blind

There are three types of spectacle blinds:

  • Flat face spectacle blind (FF): similar to a flat face flange, the surface of the disc is flat (suited for flat face gaskets, for low-pressure applications).
  • Raised face spectacle blind (RF): likewise raised face flanges, there is an additional thickness on the surface of the disc.
  • This type fits semi-metallic gaskets, as the spiral wound type.
  • Ring joint face spectacle blind (RTJ): a groove is inscribed on the surface of the disc. This type is used in conjunction with ring joint gaskets.

Duplex 2205 ASME B 16.48 Spectacle Blind Flange , 6 Inch Alloy Steel Flanges Class 1500

Standard Type Class Size
ASME B16.5 WN/LWN/SO/Blind/Lap Joint 150#-2500#

1/2"-24"

(Except Blind Flange 2500lb 1/2"-12")
SW flange 150#-1500#

1/2"-3"

(Except 1500# 1/2"-2 1/2")
Threaded 150#-900# 1/2"-24"
1500# 2500# 1/2"-2 1/2"
ASME B16.47 Series A WN/blind flange 150# -900#

22"-48"

(Except 900# Size:26"-48")
ASME B16.47 Series B WN/blind flange 75#-300# 26"-48"
400# 600# 900# 26"-36"
DIN2527 Blind flange PN6-PN100 DN10-DN1000
DIN2543 SO flange PN16 DN10-DN1000
DIN2544 SO flange PN25 DN10-DN1000
DIN2545 SO flange PN40 DN10-DN500
DIN2565 Threaded flange with Neck PN6 DN6-DN200
DIN2566 Threaded flange with Neck PN16 DN6-DN150
DIN2567 Threaded flange with Neck PN25 PN40 DN6-DN150
DIN2568 Threaded flange with Neck PN64 DN10-DN150
DIN2569 Threaded flange with Neck PN100 DN10-DN150
EN1092-1:2002

Plate flange for welding/

loose plate flange with weld-on plate collar or for lapped pipe

end/Blind Flange/WN flange

 PN2.5-PN100 DN10-DN4000
JIS B2220

Welding flange,

lap joint flange,

threaded flange

 PN6-PN100 DN10-DN1500
BS4504 BS10 TableD/E

Plate Flange for welding/

WN flange/blank Flange

 PN6-PN100 DN10-DN1500
Other Products

Anchor/swivel/girth/l

ap joint/reducing/orifice

Spectacle blind/paddle blind/

spacer ring/orifice plate/bleed ring

Special Products: rings/

forgings/disc/shaft sleeves
Sealing Surface RF FF RTJ TF GF LF LM
Flange Face Finish

Stock finish/spiral serrated/

concentric serrated/smooth finish

(Ra 3.2 and 6.3 micrometers)
125-250 AARH(it is called smooth finish)
250-500 AARH(it is called stock finish)
Coating Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade Nickel Alloy Steel

ASTM/ASME B/SB564 UNS N02200(NICKEL 200),

UNS N04400(MONEL 400),
UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600),

UNS N06601(INCONEL 601), UNS N06625(INCONEL 625),

UNS N10675(HASTELLOY C276),

ASTM/ASME B/SB160 UNS N02201(NICKEL 201),

ASTM B/SB472 UNS N08020(Alloy 20)
Copper Alloy

ASTM/ASME B/SB151 UNS C70600(CuNi 90/10),

C71500(CuNi 70/30)
Stainless Steel

ASTM/ASME A/SA182 F304,304L,304H,309H,310H,

316,316H,316L,316LN,
317,317L,321,321H,347,347H
Duplex and Super Duplex Steel

ASTM/ASME A/SA182

F44,F45,F51,F53,F55,F60,F61
Carbon steel ASTM /ASME A/SA105(N)
Low Temp Carbon Steel ASTM/ASME A/SA350 LF2
High Yield Carbon Steel ASTM/ASME A/SA694 F52,F56 F60, F65, F70
Alloy Steel

ASTM/ASME A/SA182 GR F5,

F9, F11,F12,F22,F91
Titanium ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7

2.Class 150 Spectacle blind dimensions in mm

Spectacle Blind NPS Dimensions Class 150 A B C t W
1/2 45 16 60 3 38
3/4 54 21 70 3 38
1 64 27 80 3 38
1¼ 73 42 90 6.4 38
1½ 83 48 100 6.4 38
2 102 61 120 6.4 51
2½ 107 73 140 6.4 51
3 133 89 150 6.4 64
3½ 159 102 175 9.7 64
4 172 114 190 9.7 64
5 194 141 215 9.7 76
6 219 168 240 12.7 76
8 276 219 300 12.7 76
10 337 273 360 15.7 102
12 406 324 430 19.1 102
14 448 356 475 19.1 108
16 511 406 460 22.4 108
18 546 457 580 25.4 114
20 603 508 635 28.4 121
24 714 610 750 31.8 140

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

Duplex 2205 ASME B 16.48 Spectacle Blind Flange , 6 Inch Alloy Steel Flanges Class 1500

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type Spectacle Blind Flange
ModelNumber Duplex 2205 Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
