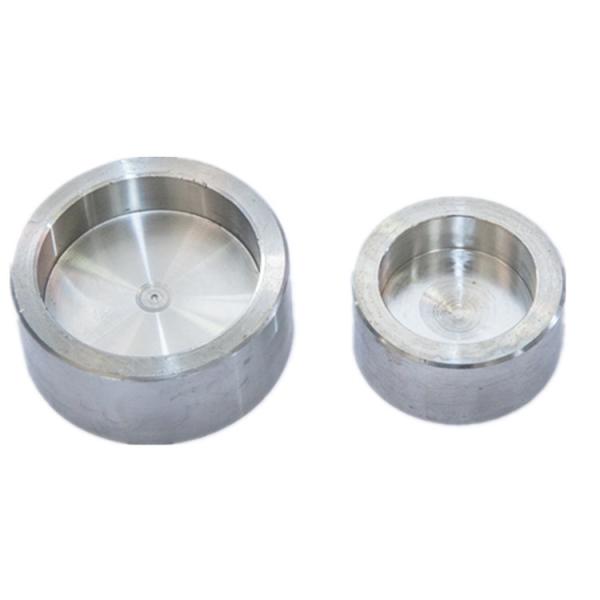

6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel
6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel
6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel
6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel
6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel
6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel
Specifications
Brand Name :
QD
Model Number :
socket tee
Certification :
CE
Place of Origin :
CHINA
MOQ :
50piece
Price :
0.16-0.86 usd/piece
Payment Terms :
L/C, T/T
Supply Ability :
10000 piece/week
Delivery Time :
7 work days
Packaging Details :
standard package
Material :
304 304L 316 316L
Shape :
Equal
Connection :
socket welding
Standard :
ANSI,JIS
Application :
Oil pipe ,Construction pipe
name :
sch160 ansi carbon steel buttweld caps
Description

6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel

Specifications:

The pipe cap includes convex pipe cap, cone shell, variable diameter section, flat cover and shrink mouth design. The difference between the pipe cap and the head is that the pipe cap is generally used in the case of low pressure, which is convenient for disassembly and maintenance. The pipe cap is generally not used in the case of medium and high pressure. The inner diameter of the head shall prevail. The diameter of the head is very large. There is no requirement for the transition part of the pipe cap.

Standard Types Class Rating/Schedule Ends Size
ASME B16.11 90°Elbow/ 45°Elbow/ Tee/ Cross 2000LB Threaded 1/4''~4''
90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling 3000LB/6000LB Threaded 1/4''~4''
Socket-welding 1/8''~4''
90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling 9000LB Socket-welding 1/2''~2''
Street Elbow 3000LB Threaded 1/8''~2''
6000LB 1/8''~1-1/2''
Lateral Tee 3000LB Socket-welding 1/4''~2''
6000LB 1/2''~1-1/2''
3000LB Threaded 3/8''~2‘’
6000LB 1/2''~2''
9000LB 1/2''~1-1/2''
Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug 3000LB/6000LB Threaded 1/8''~4''
MSS SP79 Reducer Inserts 3000LB/6000LB/9000LB Socket-welding 3/8‘’x1/4''~2x1/2''
MSS SP83 Union 3000LB Socket-welding/Threaded 1/8''~3''
MSS SP95 Concentric/Eccentric Swaged Nipples See Below Note1 1/4‘’~12''
Bull Plugs Threaded 1/8''~12''
MSS SP97 Weldolet STD, XS, Sch 160/XXS Butt-welding 1/8''~36‘’ or larger
Sockolet 3000LB/6000LB Socket-welding 1/8''~6''
Threadolet 3000LB/6000LB Threaded 1/8''~6''
Nipolet XS/XXS Plain/Threaded 1/2''~2''
Elbolet 3000LB/6000LB Socket-welding/Threaded 1/4''~2''
STD/XS/160/XXS Butt-welding 1/4''~2-1/2'' or larger
Latrolet 3000LB/6000LB Socket-welding/Threaded 1/2''~2''
STD/XS/160/XXS Butt-welding 1/2''~2-1/2''
Flangolet,Nipolet,Sweepolet,etc. available as per client' demands.
BS3799 Hex Nipple 3000LB/6000LB Threaded 1/8''~2''x1/2''
Bosses 3000LB Threaded 1/8''~2''
6000LB Threaded 1/8''~4''
Pipe Nipple 40/STD/80/XS /160/XXS See Below Note1 1/8''~6''
Material Grade Nickel Alloy ASTM / ASME B/SB 564 UNS N02200 (NICKEL200), UNS N04400 (MONEL 400), UNS N08825(INCOLOY825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N10276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3)
Copper Alloy ASTM / ASME B/SB 151 UNS C70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)
Stainless Steel ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex and Super Duplex Steel ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61,F904L
Carbon Steel ASTM / ASME A/SA 105(N)
Low Temp Carbon Steel ASTM / ASME A/SA 350 LF 2.
High Yield Carbon Steel ASTM / ASME A/SA694 F52 F56 F60, F65, F70
Alloy Steel ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.
Titanium ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7

6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel

6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel6000 LBS A182 F316l Socket Weld Pipe Cap Stainless / Alloy / Carbon Steel

FAQ:

Q1: How to order?

1. To specity standard and the thickness.

2. To specity surface treatment.

3. To specity figure size and quantity.

Q2: After sales service?

Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.

Q3: Can I have a sample order for pipe fittings?

Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q4: Do you offer guarantee for the products?

Yes, we offer almost 20 years warranty to our products.
