Specifications
Brand Name :
Fansi
Model Number :
Fansi-Fiberglass mesh 001
Certification :
CE ISO-2001
Place of Origin :
China
MOQ :
one 20FT container
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 rolls per Month
Delivery Time :
25-30 working days
Packaging Details :
Single item
Product name :
White Color Alkalis Resistant 160g 4x4mm fiberglass Plater Mesh
Weight :
65-165g
Mesh Size :
5x5mm 4x4mm 10x10mm Weave Type: Twill Woven Yarn Type: C-GLASS
Colour :
White,blue,yellow.orange,green
Material :
100% c glass e glass fiberglass yarn
length :
50m or as client's request
width :
1m or as client's request
Usage :
High Temperature Resistant Fabric
Features :
Insulated,Heat resistant,Corrosion resistant,High mechanical
Standing Temperature :
500
Description

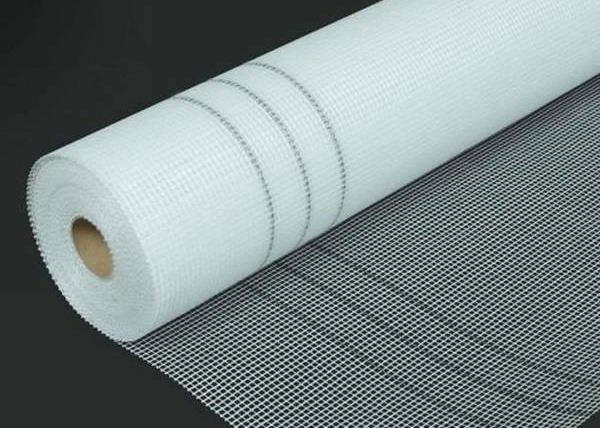

White Color Alkalis Resistant 160g 4x4mm Fiberglass Plater Mesh

Fiberglass plater mesh description

Fiberglass plater mesh is a cheap material that does not burn and is characterized by both low weight and high strength. These properties allow it to be successfully used in the formation of plaster facades, as well as used on internal wall and ceiling surfaces. This material is widely used for fastening the surface layer at the corners of the room.

Most widely used standard fiberglass plater mesh is the density of 145g/m2 and 165g/m2 for exterior cladding and facade work. Resistant to alkalis, does not decompose and will not rust over time, it does not emit toxic and harmful substances, has a high resistance to tearing and stretching, protects the surface from cracking and improves its mechanical strength. Easy to handle and use.

White Color Alkalis Resistant 4x4mm Fiberglass Mesh Fabric 160g Multipurpose

Our Fiberglass Plaster Mesh Sizes:

  • Plastering mesh facade fiberglass cloth 90, 140, 145 , 160, 165, 180, 185g/m2.
  • Mesh shape: square.
  • Mesh size 5 × 5mm, 4 × 4mm, 2 × 2mm.
  • Color: White, yellow, blue, green, red, orange.
  • Roll size: 1 × 50m.

Application of Plaster Fiberglass Mesh

  • Fiberglass mesh is used to strengthen the surface of the plaster layer all kinds of buildings.
  • This mesh reinforced liquid waterproofing layers slabs and roofs.
  • Fiberglass mesh used to impart mechanical strength filler floor coverings that are different self-leveling properties.
  • Application of glass fiber mesh contributes to strengthening plaster, and the bases used for laying ceramic tiles.

Drywall Fiberglass Tape

Drywall fiberglass not-sticking tape and fiberglass self-adhesive tape are used for combining the joints between walls and windows, door together with our fiberglass mesh to repair the cracks, joints and seams of drywall, plasterboard and other surfaces. Drywall fiberglass not-sticking tape should be used with cellophane tape. Fiberglass self-adhesive tape could be used alone.

Specification:

  • Length (m): 20, 30,40, 45, 50, 90, 100.
  • Width (mm): 35, 45, 40, 45, 50, 75, 100, 200.
Table 1: specification of drywall fiberglass tape
Class Design Density/25 mm Weight (g/m2) Tensile strength ≥ N/5 cm × 20 cm Weaving type Resin content (for self-adhesive) %
longitude latitude Wrap Weft
Standard FM-DFT-01 8 6 55 550 450 Leno 28±2
FM-DFT-02 9 9 60 550 500 Leno 28±2
FM-DFT-03 9 9 65 550 550 Leno 28±2
FM-DFT-04 9 9 70 550 600 Leno 28±2
FM-DFT-05 9 9 75 550 650 Leno 28±2
High strength FM-DFT-06 20 10 75 700 700 Plain 28±2
FM-DFT-07 5 5 100 1000 1000 Leno 28±2

Application of Drywall Fiberglass Tape

  • Connecting gypsum board, particle board, hardboard and other sheet materials.
  • Gluing joints of door and window frames to the walls.
  • Sizing of cracks, corners and joints in concrete, plaster surfaces.
  • For continuous reinforcement of walls and ceilings.

Benefits Plaster Reinforcing Mesh and Tape:

  • Resistant to alkalis;
  • Does not decompose and will not rust over time;
  • Does not emit toxic and hazardous substances;
  • Helps to overcome stress caused by sudden changes in temperature and humidity;
  • Has a high resistance to tearing and stretching;
  • Protects the surface from cracking and improves its mechanical strength;
  • Plaster mesh is easy to handle and use.

Selecting the Fiberglass Grid and Tape Should Pay Particular Attention to the Following Points:

  • To determine the resistance to alkalis grid pattern is recommended to put in an alkaline environment for 25 days, and then spend the tensile test. Decrease in strength when it should comply with international standards.
  • You also need to check the stability of the grid to the tensile stress. For this small piece of mesh is pursed as if molded snowball. After the compressive force stops, the elastic mesh should almost completely restore the original shape.

White Color Alkalis Resistant 4x4mm Fiberglass Mesh Fabric 160g Multipurpose
