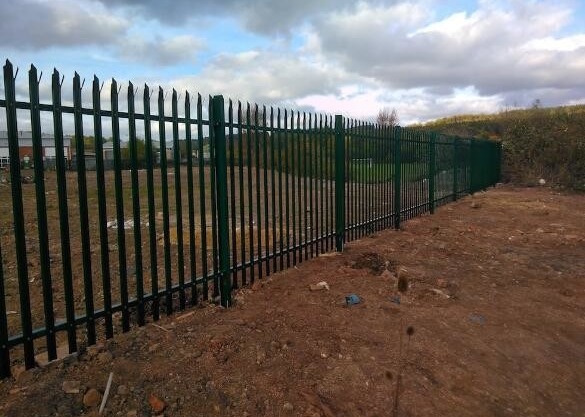

Palisade fencing, the most popular solution to premise protection, performs excellently to provide a high level of security and assault resistance. Taking full advantages of sharp prongs at the top of fencing, it is difficult to climb and provides the ultimate deterrent against would to be intruders.
Designed with smooth surface, rigidity structure, sharp prongs and narrow pale spacing, the palisade fences are normally considered to be difficult even impossible to climb, straddle, grab and gain foot-hold. Thereby, it effective deters would to be intruders and trespassers, protects your assets, office and factory from damages.
Most of all, the steel palisade fence can be installed with flexibility to follow the profile of uneven terrains and offers a professional feel to your areas. So the fences are always close to the ground, no oversized gaps that may cause security issues anymore!
Components | Domestic palisade fencing | Commercial palisade fencing | Industries palisade fencing | |
Pales | 42 × 2mm | 42 × 1.6mm | 50 × 2mm / 2.5mm or angle steel 40 × 40 ×2.3mm | 62 × 2.5mm / 3.0mm or angle steel 40 × 40 ×2.3mm |
Horizontal rails | 40 × 40 × 2.5mm | 40 × 40 × 2mm | 40 × 40 × 2.5mm / 3.0mm | 50 × 50 × 3.0mm / 5.0mm |
Square post | 76 × 76 × 1.6mm | 50 × 50 × 1.6mm or 76 × 76 × 1.6mm | 76 × 76 × 1.6mm | 76 × 76 × 1.6mm |
Post clamps | 29 × 3mm | 29 × 3mm | 29 × 3mm | 45 × 3mm |
Bolts and nuts | M6 ×No.34 for pale fixing | M6 ×No.34 for pale fixing | M8 ×No.38 | M8 ×No.34 for pale fixing |
M8 × No.4 for rail fixing | M8 ×No.4 for rail fixing | M12 ×No.4 for rail fixing |
Palisade Fening is available in varying specifications to suit a variety of commercial and industrial applications including:
Providing widest choices:
Our company is specification in manufacturing palisade fencing products and capable to offer the widest choices of designs and specifications in the markets.
A choice of pale profiles - W pale, D pale and angle steel pales.
A choice of head types - with incomparable nine types of head types.
A choice of assemble ways - by fishplates or post clamps as your request.
A choice of material - low carbon steel. Stainless steel, hot rolled steel, cold rolled steel or customized materials.
A choice of surface treatment - hot dipped galvanized with the optional PVC coating. Any color is available.
A choice of specifications - palisade fencing with the height ranging from 1.2m to 3.6m. Customized specifications are acceptable.
