1800mm High Durable Easily Assembled Industrial Palisade Fence

Product Introduction

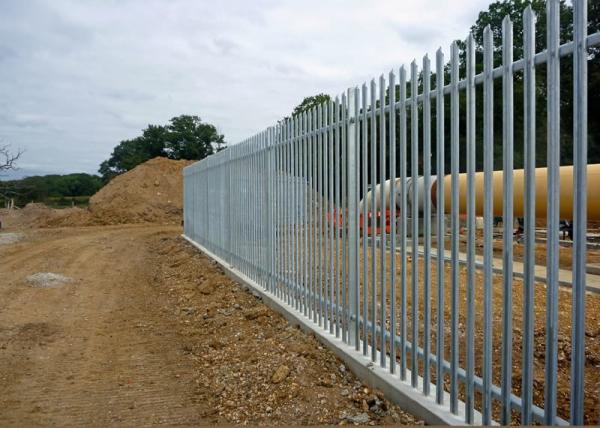

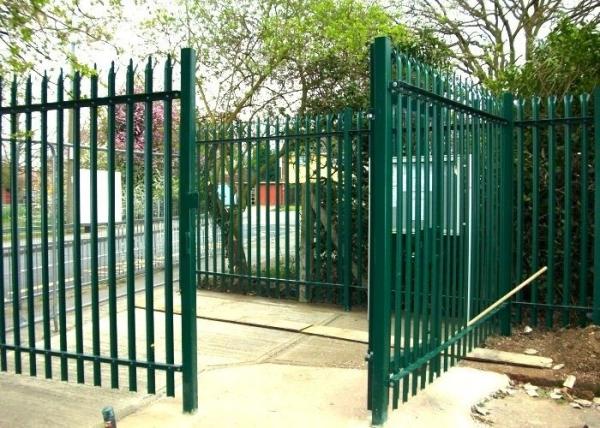

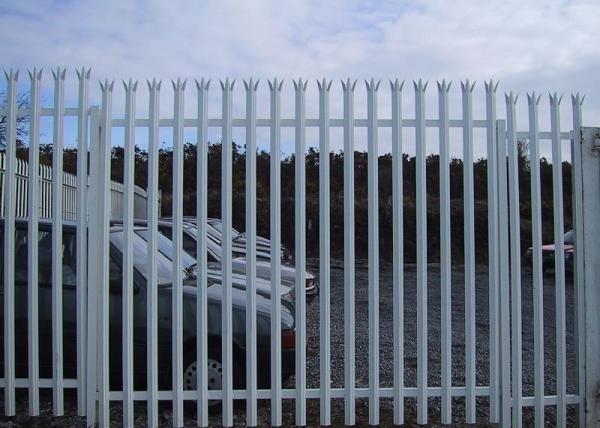

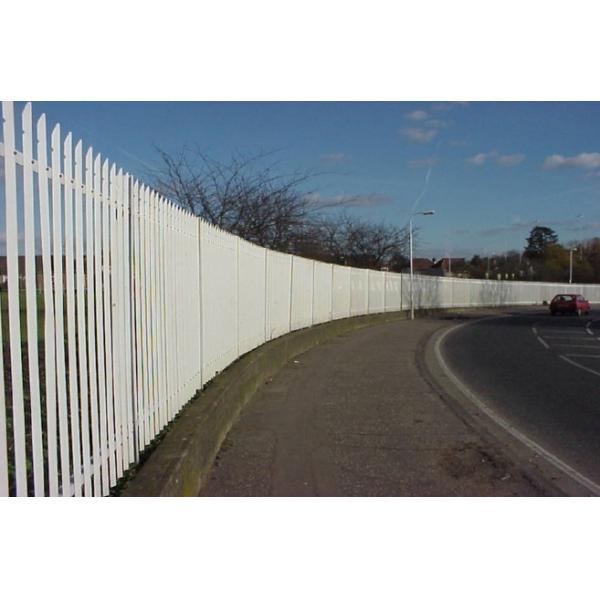

Designed to provide security and protection in a wide range of outdoor locations, Palisade Security Fencing can be erected on hard ground like concrete by using steel Bolt Down Posts, or on softer ground like grass, where Dig-In Posts are set within the ground. Palisade Fencing is designed for permanent installation and can also be installed on both level ground and sloping ground which has a gradient no greater than 30 degrees; as it can be assembled to run parallel to the ground without the need for stepping.

All Palisade Security Fencing and Palisade Gates are made from cold rolled steel and are galvanised with a protective zinc coating to help prevent rust over time. This galvanised finish meets the BS EN ISO 1461:2009 standard.

Specifications of Industrial Palisade Fence

Heights

2100mm, 2400mm and 3000mm heights are available.

Paling Profiles

Available in 2 standard profiles - ‘W’ profile and ‘D’ profile.

Paling Tops

Available in 5 standard tops; Single point - Triple point - Square - Round – Notched

Paling Thickness

Available in 3 standard gauges; 2.0MM - 2.5MM - 3.0MM

Horizontals

Available in 2 standard sizes according to height and site requirements - 50x50x6mm or 65x50x6mm

Posts

100x55 IPE (European steel I-beams)
Available with welded fishplates or slotted for use with loose fishplates. Can be concreted-in, base plated for bolting down or cranked. Posts can be vertically extended to accommodate barbed or razor wire.

Panels

2750mm wide panels (centre post-to -centre post) can be easily raked to allow for most site conditions.

Fixings

All fixings are tamper-proof and anti-vandal. M8x25LG ‘T’ HD bolts & cones.
Fixings per post:
2100mm (H) – 102x44
2400mm (H) – 102x44
3000mm (H) – 127x76

Hot-dip Galvanizing galvanized palisade fencing

BSENISO 1461 standard to achieve the highest quality and most reliable galvanized finish.

Advantages of Industrial Palisade Fence

Palisade Fencing is the perfect solution to your boundary security fencing.As palisade fencing is supplied piece small it is easily adapted to most site conditions.

Maintenance Free

Suitable for most site conditions

Cost Effective

Hot Dip Galvanized to British Standard EN ISO1461 or a color of your choice.

Applications of Industrial Palisade Fence

As Palisade Fencing offers dependability and a high level of security, you will often see it in a variety of private, public and commercial places. Examples of where Palisade Fencing is used include:

Businesses that have large amounts of stock

Commercial establishments

Water treatment plants and power stations

Bus and railway stations

General fencing for establishing boundaries

FAQ

1. What is your terms of delivery?

EXW, FOB, CFR, CIF, DDU.

2. What about delivery time after we placed the order?
Please inform us details about your order or project. We will have proper arrangement then.

3. What about your sample delivery?
Truly, we offer samples. Delivery of sample may be via express, air or ship, whichever agreed by both sides.

4. Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

5. What about warranty?
Customer satisfaction is our key concern. All fence can withstand 15 years’ corrosion resistance. We promise to reimburse or replace the products with defect immediately upon the confirmation of the problem.

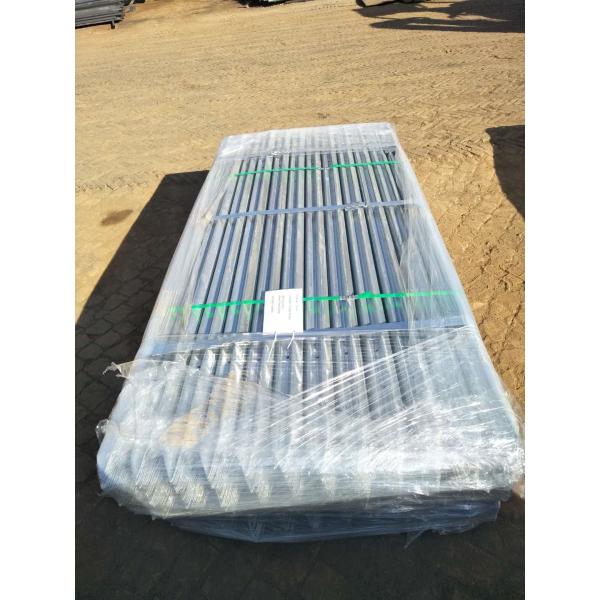

Packing and shipping
