Specifications
Brand Name :
AOBIAO
Model Number :
AB-PF-01
Certification :
ISO9001,CE
Place of Origin :
Anping China
MOQ :
50 sets
Price :
USD25-35/set
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
5000sets per month
Delivery Time :
15-20 work days
Packaging Details :
1.plastic film/Pallet or according to customer's request 2.plastic film shrink with pallet or wooden 3.also can be customized
Product Name :
W Section Triple pointed top Black Powder Coated Steel Palisade Fencing
Type :
Fencing, Trellis & Gates
Service :
Instruction book, video of installation
Material :
Low Carbon Steel
Pale head type :
Triple pointed top, single pointed top, round top
Fixings :
M8 & M12 nuts and bolts
Style :
"D" and"W"
Keywords :
Powder coated steel palisade fencing
Width :
2.4m,2.75m etc.
Height :
1.2m, 1.5m,1.8m, 2.1m,2.4m etc.
Description

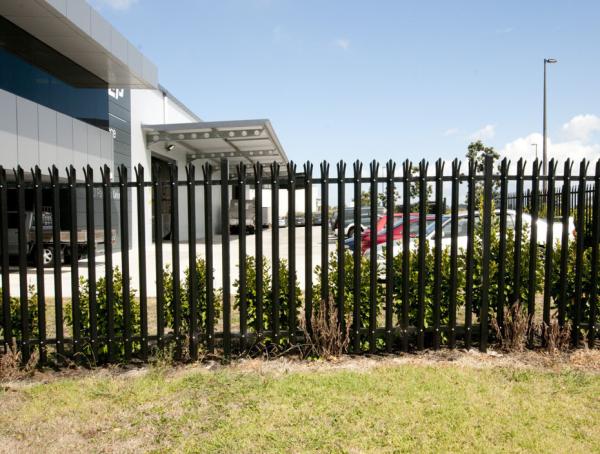

W Section Triple pointed top Black Powder Coated Steel Palisade Fencing

Product Introduction

Standard Palisade is available with in the traditional ‘D’ section pales or ‘W’ section pales. We supply a full range of heights starting from 1.2 metres up to 3.6 metres. All fencing purchased is made from material within the requirements of British Standard 1722 part:12. We supply Panels to which are normally supplied loose for assembly on site in bays of 2.75m.

If you require a fully welded option of palisade bays this is possible but at a additional cost. Palisade fencing is becoming more popular, and because of its strength and security, Designed specifically for security fencing applications, Palisade is used extensively for government projects and businesses as the ideal visual barrier against would-be intruders.

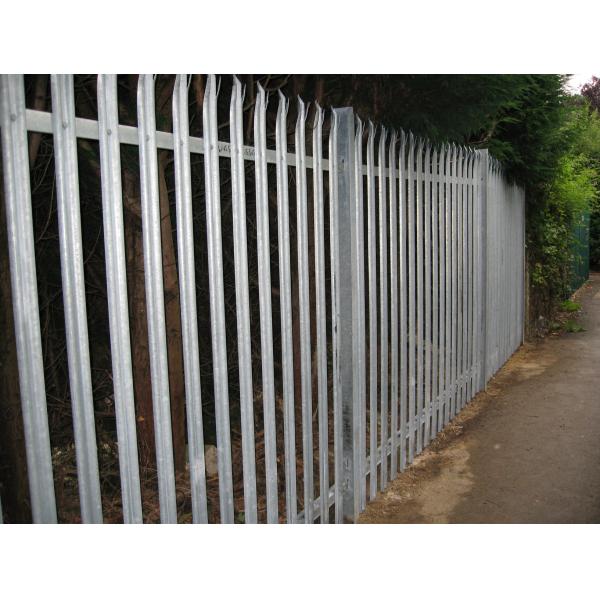

CE Black 1.2 Metres Steel Palisade Fencing With Triple Pointed Top

Specifications of Black Powder Coated Steel Palisade Fencing

Fence Height(mm) Pale Profile Sections D (mm) Pale Profile Sections W (mm) Horizontal Rail Angle Section(mm) IPA Section(mm) Length(mm) Support Feet per bay
1800 3 2.5 45×45×6 98×55 2400 2
2000 3 2.5 45×45×6 98×55 2625 2
2100 3 2.5 45×45×6 98×55 2725 2
2400 3 2.5 45×45×6 98×55 3125 2
3000 3 2.5 50×50×4 98×55 3925 2

Rails
Rails are available in four sizes, 40 x 40, 45 x 45, 50 x 50 and 65 x 50. The size of the rail is dependant on the height of fence and level of security required.

Gates
Gates are also available in the form of singular pedestrian gates OR double vehicle gates all as per the above spec. These gates are manufactured to look in keep as the rest of the palisade fencing system and are very reasonable as well as highly durable. All gates again are available in a RAL colour as specified.

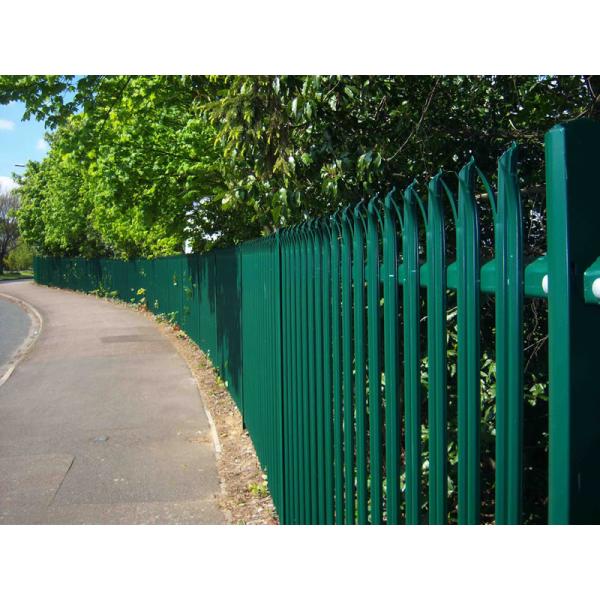

CE Black 1.2 Metres Steel Palisade Fencing With Triple Pointed Top

Features ofBlack Powder Coated Steel Palisade Fencing

1)palisade fence is widely accepted as the industry leader to protect and deter general attack from all types and conditions of intrusion.

2)The pales are made of hot formed and cold rolled steel belts. These belts offer both strength and rigidity combined with a long life span.

3)It is easy to be installed, moved. And the price is competitive.

Applications of Black Powder Coated Steel Palisade Fencing

Palisade Fencing can be supplied and erected all over Australia but out main area of service is Brisbane, Gold Coast, Sunshine Coast and Redlands Queensland. Palisade fencing is such a versatile fence in can be used in a number of locations. It is perfectly suited to the following uses:

Industrial Fencing

Commercial Fencing

School Fencing

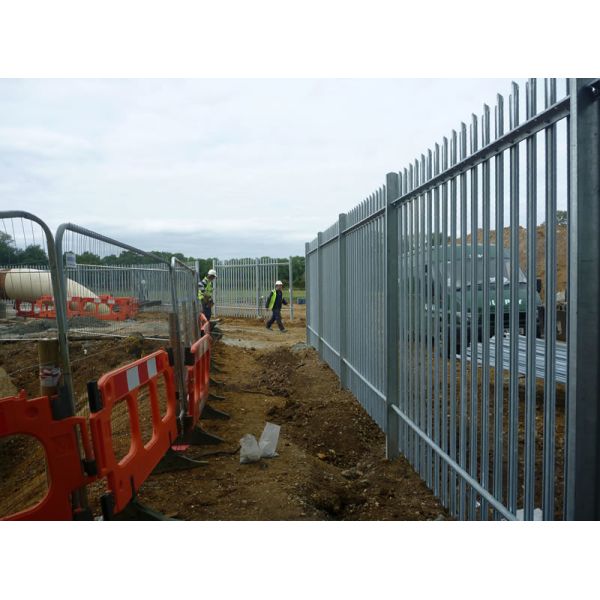

CE Black 1.2 Metres Steel Palisade Fencing With Triple Pointed Top

FAQ

1. Do you have certificate?

Yes, we have CE certificate and certificate of patent.

2. Do you have design team?

Yes, we have a perfessional design team, we wait for your confirmation and production.

3. Can you guarantee the deivery time?

Timely transport, ensure delivery time

4. Do you have OEM?

Yes

5. Are you manufacturer?

Yes, we are the prefessional steel fence, wrought iron fence, wire mesh fence manufacturer.

6. Do you have trial order?

Small quantity trial order acceptable

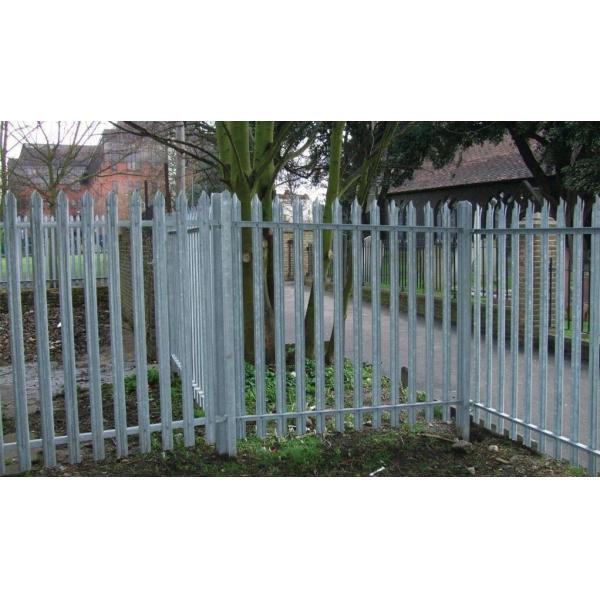

CE Black 1.2 Metres Steel Palisade Fencing With Triple Pointed Top
