45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket
45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket
45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket
45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket
45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket
45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket
45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket
45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket
Specifications
Brand Name :
AOBIAO
Model Number :
FSL-LHE-007
Certification :
CE, ISO
Place of Origin :
Anping China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1800 Ton/Tons per Month
Delivery Time :
about 25-30 days after receiving the deposit.
Packaging Details :
10 pcs /bundle and 400pcs/pallet or as your request
Name :
1.65m Length Metal 2.04kg Hot Dip Galvanized Steel Star Picket
Type :
Fencing,Trellis & Gates
Length :
450mm -3000mm
Weight :
1.58kg/m,1.86kg/m,2.04kg/m
Frame finishing :
Galvanized
Metal type :
Steel,Iron
Usage :
sheep,horse
Use :
for cattle and other animals
Application :
For garden, farm and house to security
Packing :
10 pcs /bundle and 400pcs/pallet or as your request
Description

1.65m Length Metal 2.04kg Hot Dip Galvanized Steel Star Picket

Star Picket description

Star Picket, Austrilian Style, without teeth, the main product of star pickets, features its three-pointed star shaped cross section. The tapered ends make it easy to be installed and the plain head is engineered for easy hammering the post into ground. Due to its high quality and stability, it is popular with most Australians, New Zealanders

Specification of star picket
Star picket standard specification
Length (cm) Hole number Hole distance (mm)

Weight (kg/pc)

2.04kg/m

Weight (kg/pc)

1.86kg/m

Weight (kg/pc)

1.58kg/m
45 2 25/30,100 0.918 0.837 0.711
60 3 25/30,120,120 1.224 1.224 0.948
90 5 25/30,120,120,120,120 1.836 1.836 1.422
135 11 25/30,100,100,100,60,120,75,75,80,70 2.754 2.511 2.133
AUS150 11 25,100,100,100,60,120,75,75,80,70 3.060 2.790 2.37
NZL 150 7 30,204,178,152,27,127,127 3.060 2.790 2.37
AUS165 14 25,130,100,100,100,60,120,75,75,80,75,75,60,95 3.366 3.069 3.366
NZL 165 7 30,204,178,152,127,127,127 3.366 3.069 3.366
AUS180 14 25,130,100,100,100,60,120,75,75,80,70,75,60,95 3.672 3.348 2.844
NZL 180 8 30,204,190,152,127,114,100,100 3.672 3.348 2.844
210 7 25,275,300,300,300,300 4.284 3.906 3.318
240 7 25,275,300,300,300,300 4.896 4.464

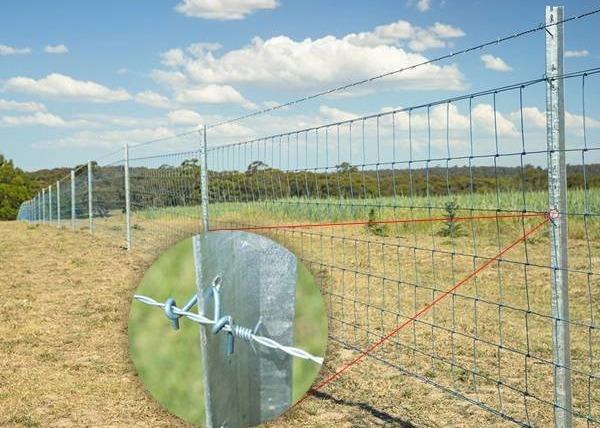

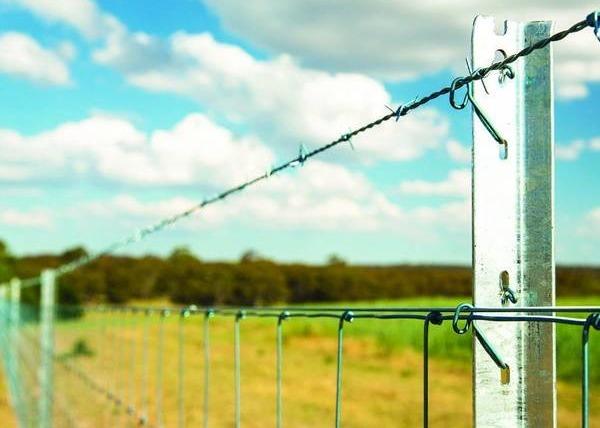

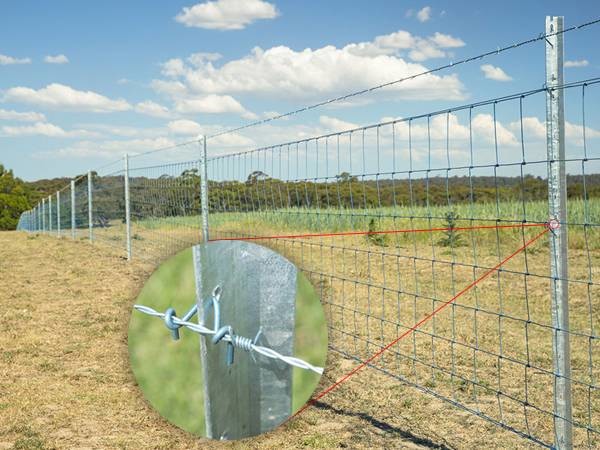

Star picket Applications


1. Posts for protective wire mesh fencing of expressway & railway;
2. Wire mesh fence posts for security fencings of beach farming, fish farming, and salt farm;
3. Wire mesh fence posts for security of forestry and forestry source protection;
4. Fencing posts for isolation and protecting husbandry and water sources;
5. Fencing posts for gardens, roads, and houses.

45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket

45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket

Structure classification of star picket


* According to the surface: * Y post with holes. There are consistent holes on the surface, which is commonly used to fastening the
steel wire lines.
* Y post with teeth. There is a consistent teeth-shaped gap on the surface, which is easy to fasten the wire mesh panels.
* According to the end types:
* Tapered ends Y post. It is easy to install.
* Plain head Y post. It is easy for hammering the post into the ground.

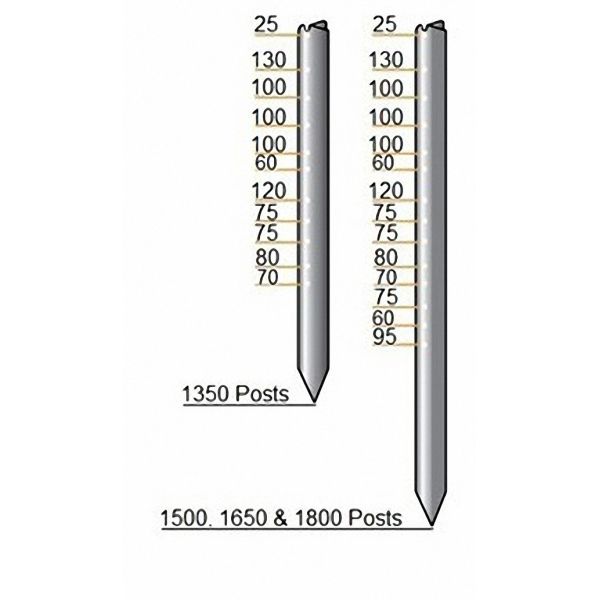

Star picket hole space drawing

45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket

Advantage of star picket


1.This kind of fence post enjoys an improved rate of 30% in its mechanical property and physical propery compared with common
steel posts with same section size;
2.Have nice appearance. Easily used, with a low cost;
3.Long service life.

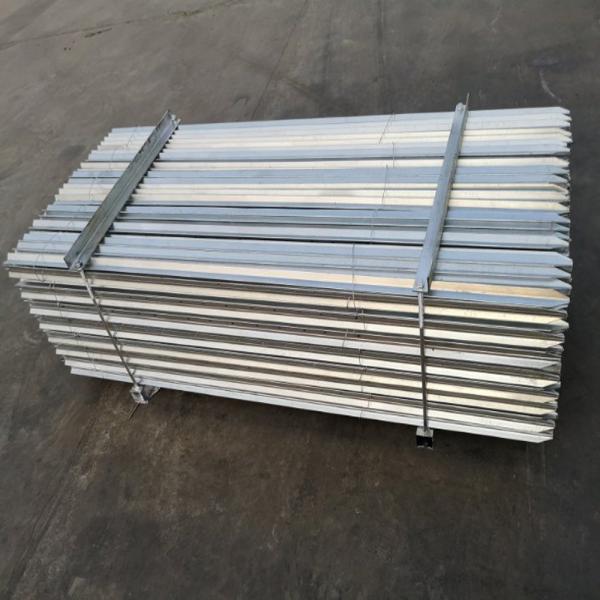

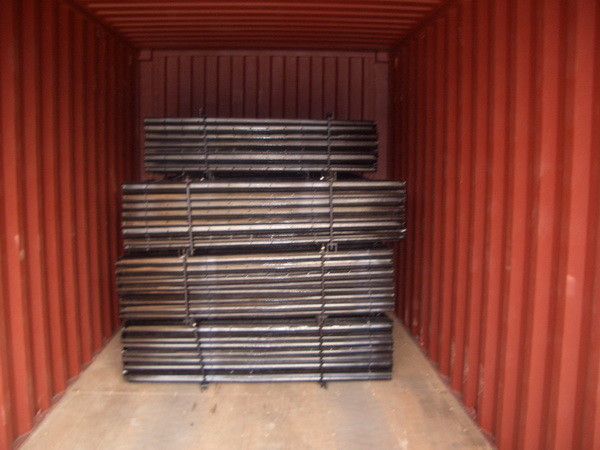

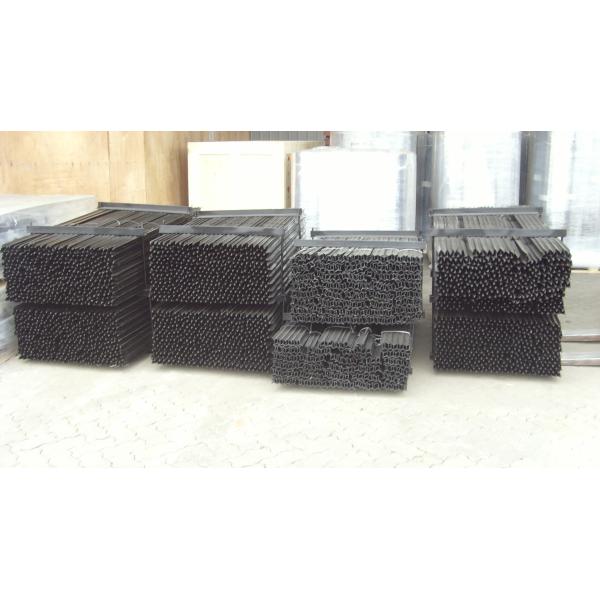

Star picket packing and loading

45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket45cm Length Galvanised Star Pickets , 2.04kg Steel Star Picket
