Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized
Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized
Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized
Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized
Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized
Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized
Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized
Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized
Specifications
Brand Name :
AOBIAO
Model Number :
AB-LIH-023
Certification :
CE, ISO
Place of Origin :
Anping China
MOQ :
30 rolls
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 roll per week
Delivery Time :
about 25-30 days after receicing the deposit.
Packaging Details :
1.woven bags of the above and bottom,high quality package or as customes requested 2.In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. 3. according to customers requirement.
Name :
Knuckle Twist Edge 2.5mm-3.0mm Hot DIP Galvanized Diamond Mesh Chain Mesh Fencing
Chain mesh fencing Wire :
1.5mm - 6mm
Aperture :
40x40mm, 50x50mm,60x60mm,70x70mm
Fence Roll :
10m,15m,20m,25m, 30m
Fence Application :
Fence Mesh,railway,Sport Field,etc,Residential
Frame finishing :
PVC Coated,Not Coated,stainless steel,Powder Coated,galvanized
Surface :
PVC coated,Hot Dipped Galvanized,Galvanized+PVC Coated,hot-dipped galvanized,PVC sprayed
Pressure treated wood type :
Heat Treated,Nature,Chemical
Roll Width :
0.5-6m
Usage :
Garden Fence, Sport Fence, Farm Fence
Packing :
Pallet,Waterproof Paper,in rolls with jute or pallet
Color :
Green,white,black
Description

Knuckle Twist Edge 2.5mm-3.0mm Hot DIP Galvanized Diamond Mesh Chain Mesh Fencing

Chain Mesh Fencing product description

Chain link fencing is also known as diamond fence, it is woven with high-quality mild steel wire. It has the features of woven simple, beauty and practical. Its finish treatment is galvanized and plastic coated with long-time use and corrosion protection. They are widely used as protective fences in residential sites, roads, and sports fields.

Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized

Chain mesh fencing specifications

Chain Mesh Common Specifications
Fence Height:
5ft, 6ft, 8ft, etc. (1.5m, 1.8m, 2.0m, 2.4m, etc.)
Fence Length:
9m, 12m, 15m, 20m, 30m
Wire Thickness:
2.5mm, 3.0mm, 3.15mm, 3.5mm, 4.0mm
Opening size:
25x25mm, 50x50mm, 75x75mm, 80x80mm
Flat Bar:
25.0mm*5.0mm
Fence Post:
Round Post (dia. 48mm, 60mm, 75mm)
Clamps:
Metal Clamps
Post Cap:
Metal Rain Cap / Anti-UV PP Cap
Surface treatment:
Pre-Hot Dipped Galvanized (100, 200, 250, 280g/m²)
PVC Coated (All colors in Ral)
Application
Wire diameter
Line Post
Top Rail
3’-4’ high
11 ga
1-5/8” 15 ga.
1-3/8” 17 ga.
5’-6’ high
11ga ,9ga
1-7/8” 16 ga.
1-3/8” 17 ga.
8'-10'high
9ga ,6ga
2-3/8” 15 ga.
1-5/8” 15 ga.

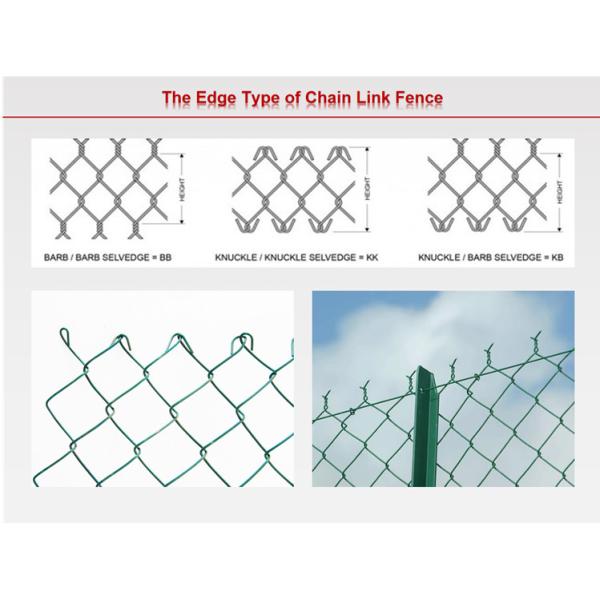

Chain mesh fencing type:

(1) Knuckle-Knukle:
The wire is knuckled at both ends and abbreviated as(KK)


(2) Knuckle-Barbed:
The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KB)


(3) Barbed-Barbed:
The wire is twisted in to a barbed selvedge at both ends and is abbreviated as(BB)

Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized

Chain mesh fencing production process:

Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized

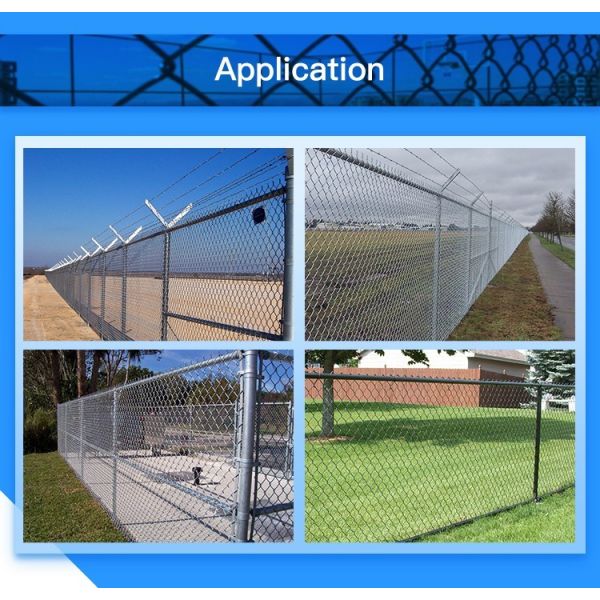

Chain mesh fencing usage:

This product is widely used in filters baskets, air filtration units,medicine ,building

cement, mechanical equipment protection, crafts manufacturing,high grade sound box nets, expressway fence,decorative ceilling,highway fence , walkway

Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized

Chain mesh fencing drawing:

Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized

Chain mesh fencing packing:

Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized

Chain mesh fencing gate:

Twist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped GalvanizedTwist Edge 2.5mm Steel Chain Link Fencing With Hot Dipped Galvanized
