Specifications
Brand Name :
AOBIAO
Model Number :
AB-X-FFC-08
Place of Origin :
Anping China
MOQ :
30 Piece
Price :
Please Contact Customer Service For The Specific Price.
Payment Terms :
T/T, For other payment methods, please contact customer service
Supply Ability :
5600 /Piece/ Month
Delivery Time :
15 -25 Day
Packaging Details :
Plastic Film, Wooden Pallet, Bulk Package Or As Your Demand
Name :
Cattle Wire Farm Fence
Height :
0.8-2.0m Or As Your Demand
Vertical Wire :
40-50 kgs/m²，etc
Zinc Coated :
Normally 60-100g/m² , max 230-240g /m²
Color :
Silver
Type :
Catttle Fence,Hinge Joint Fence,Livestock Field Farm Fence, etc
Edge Wire Dia :
2.0mm-3.2mm ETC
Post stye :
T-Post, Y-Post ,Barbed Wire
Packing :
Plastic Film, Wooden Pallet, Bulk Package
Material :
Galvanized Wire, Steel Wire
Length :
50m ,100m,200m etc
Horizontal Wire Space :
15*100mm+2*150mm+3*200mm; 16*50mm+4*100mm+3*150mm+1*200mm;Etc
Tensile Strength Horizontal Wire :
80-90kgs mm2
Application :
Forestry And Highway Grassland, etc
Wire Dia :
1.8mm-2.5mm ETC
Post Distance :
2.5m,3m etc
Description

Electric And Hot Dipped Galvanized High Tensile Wire Deer Or Goat Cattle Wire Farm Fence

200m Length Wire Cattle Fencing , 90kgs/Mm2 Galvanized Cattle Panels

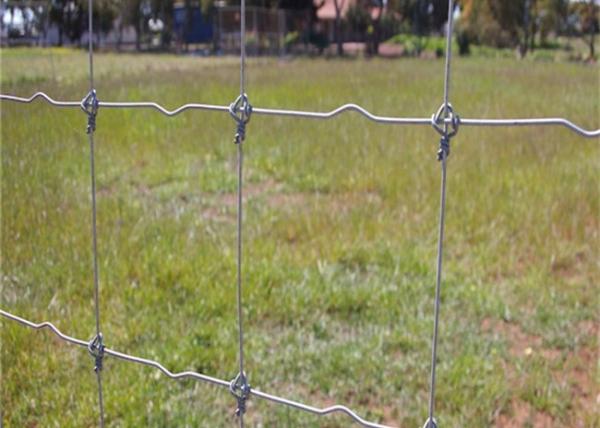

Cattle Wire Farm Fence Introduction

1>.A range of fence heights, wire configurations, and roll lengths to suit your fencing requirements.

2>.The hinge joint is a flexible joint that moves to absorb impacts and springs back to shape again.

3>.It is similar to the stock look mesh commonly used in the rural industry.

4>.All meshes are graduated with horizontal wires at the ground level closer together, gets wider at the top of the fence - this ensures smaller animals cannot get through the apertures near the ground. Vertical stay wires are 15cm apart.

200m Length Wire Cattle Fencing , 90kgs/Mm2 Galvanized Cattle Panels

200m Length Wire Cattle Fencing , 90kgs/Mm2 Galvanized Cattle Panels200m Length Wire Cattle Fencing , 90kgs/Mm2 Galvanized Cattle Panels

Cattle Wire Farm Fence Specification

NO

Item

Specification

Top & bottom
wires
diameter

(mm)

Middle
wire
diameter

(mm)

Roll
diameter

(mm)

1.

7/150/813/50

102+114+127+140+152+178

2.5

2.0

280

2.

8/150/813/50

89(75)+89+102+114+127+140+152

2.5

2.0

280

3.

8/150/902/50

89+102+114+127+140+152+178

2.5

2.0

280

4.

8/150/1016/50

102+114+127+140+152+178+203

2.5

2.0

280

5.

8/150/1143/50

114+127+140+152+178+203+229

2.5

2.0

280

6.

9/150/991/50

89(75)+89+102+114+127+140+152+178

2.5

2.0

280

7.

9/150/1245/50

102+114+127+140+152+178+203+229

2.5

2.0

280

8.

10/150/1194/50

89(75)+89+102+114+127+140+152+178+203

2.5

2.0

280

9.

10/150/1334/50

89+102+114+127+140+152+178+203+229

2.5

2.0

280

10.

11/150/1422/50

89(75)+89+102+114+127+140+152+178+203+229

2.5

2.0

280

Item number means:

the first number means the number of wire of width;
the second number means distance of horizontal wires (mm);
the third number means the height of mesh(mm);
the fourth number means length of mesh(m).
OTHER SIZES ARE ALSO AVAILABLE.

200m Length Wire Cattle Fencing , 90kgs/Mm2 Galvanized Cattle Panels

Cattle Wire Farm Fence Drawing

200m Length Wire Cattle Fencing , 90kgs/Mm2 Galvanized Cattle Panels200m Length Wire Cattle Fencing , 90kgs/Mm2 Galvanized Cattle Panels200m Length Wire Cattle Fencing , 90kgs/Mm2 Galvanized Cattle Panels

Cattle Wire Farm Fence Accessories

200m Length Wire Cattle Fencing , 90kgs/Mm2 Galvanized Cattle Panels

Packing

1.Plastic Film,

2.Wooden Pallet,

3.Bulk Package Or As Your Demand
