Powder Coating 3d Welded Mesh Fencing Metal Steel 2100mm Rolltop
Powder Coating 3d Welded Mesh Fencing Metal Steel 2100mm Rolltop
Powder Coating 3d Welded Mesh Fencing Metal Steel 2100mm Rolltop
Powder Coating 3d Welded Mesh Fencing Metal Steel 2100mm Rolltop
Specifications
Brand Name :
AOBIAO
Model Number :
WMF-L-010
Certification :
CE,ISO 9001
Place of Origin :
CHINA,ANPING
MOQ :
50 sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000 sets per month
Delivery Time :
25-30 working days
Packaging Details :
1: fence panel are packed in metal pallet and wrapping with plastic film 2: fence post in pallet or in bulk 3: accessories in the carton Package can be on customers' request
Product name :
Powder Coating Metal Steel 2100mm Rolltop Weld Rolltop Fencing
Height :
900mm-2400mm
Width :
2.4m , 3m
Guage :
4.00mm , 5.0mm
Mesh opening :
50mm X 150mm Or 50m X200mm
Post length :
1.5-3.0m
Material :
galvanized iron wire
Application :
seaport, feeding and husbandry, military base
Surface Treatment :
galvanized, powder coating
Process :
Made through weaving, punching and welding
Clamp :
Metal V Clamp / Anti-UV Plastic Clamp
POST CAP :
Metal Cap / Anti-UV Plastic Cap
Description

Powder Coating Metal Steel 2100mm Rolltop Weld Rolltop Fencing

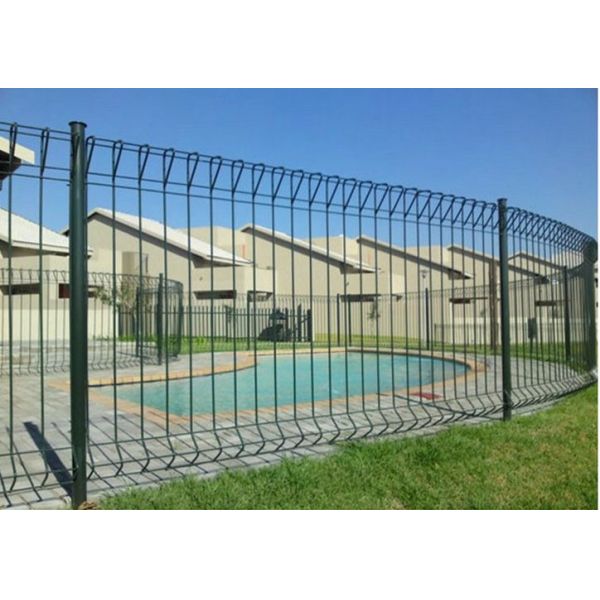

Rolltop fencing ​description:

It is also called BRC wire mesh fence, which is a mesh panel fence system that has a rolled top for enhanced safety and rigidity.

The panels have an attractive, unique, and “user-friendly” closed beam section located along the top and bottom edge of the panel. With no sharp or raw edges, Roll Top panels are suitable where safety is a consideration.

Roll Top Mesh is perfect for use in schools, parks/sports areas, and company premises. Easy to Install

The fence is rolled at the top and bottom which makes each individual panel perfectly rigid and eliminates

the need for tension. The posts are also pre-drilled and ready for assembly on site

Powder Coating 3d Welded Mesh Fencing Metal Steel 2100mm Rolltop

Rolltop fencing specification:

FB Series
Mesh Spacing (mm) Vertical Horizontal
75 300
Wire Diameter (mm) 6
Panel Size Height X Width (mm) 900X2400
1200X2400
1500X2400
1800X2400
2100X2400
2400X2400
Post Specification (mm) Ultragal Post 60 (Stainless Steel U-Clip & M6 Bolt&Nut)
FA Series
Mesh Spacing (mm) Vertical Horizontal
50 150
Wire Diameter (mm) 5
Panel Size Height X Width (mm) 900X2400
1200X2400
1500X2400
1800X2400
2100X2400
2400X2400
Post Specification (mm) Ultragal Post 60 (Stainless Steel U-Clip & M6 Bolt&Nut)

Rolltop fencing details:

Fencing Panel
Material: Steel Welded Wire Mesh
Wire Diameter: Ø 6mm
Vertical Spacing: 75mm
Horizontal Spacing: Varies
Height of Fence (mm) 900, 1200, 1500, 1800, 2100 & 2400
Width of Fence (mm) 2400
Post
Ultragal Post: 60mm
Accessories : Galvanized Cap, Stainless Steel U-Clip, Bolts & Nuts
Finishing
Hot Dipped Galvanized
*Other Sizes & Powder Coated Available Upon Customer Request

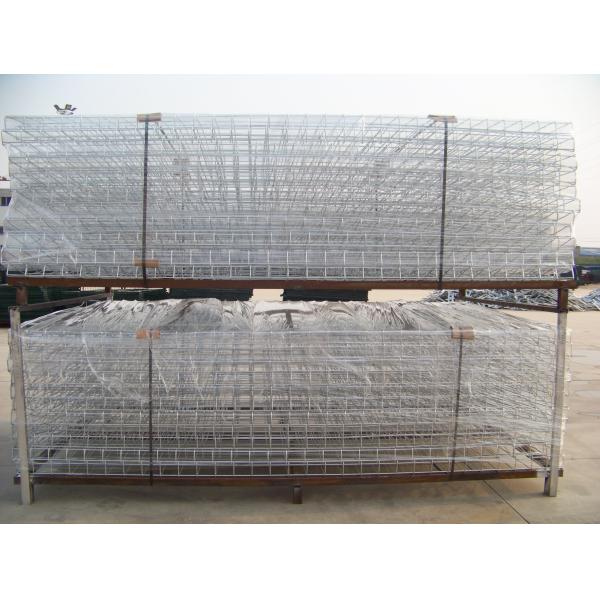

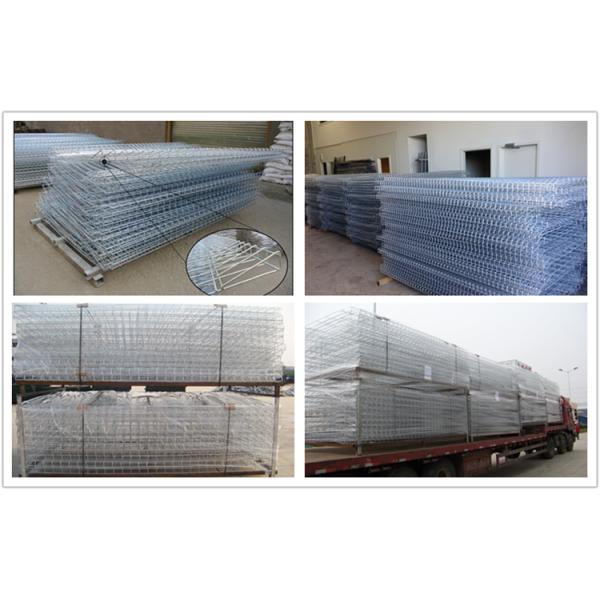

Rolltop fencing packing:

Powder Coating 3d Welded Mesh Fencing Metal Steel 2100mm Rolltop

Powder Coating 3d Welded Mesh Fencing Metal Steel 2100mm Rolltop
