Specifications
Brand Name :
AOBIAO
Model Number :
FSL-USTF-007
Certification :
CE ISO
Place of Origin :
Anping China
MOQ :
50 sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per week
Delivery Time :
25-30 days after receiving the deposit.
Packaging Details :
1. in bundle 2. on steel pallets
Product Name :
Metal Steel Construction Site Galvanized Temporary Chain Link Movable Fence
Fence Height :
6ft 8ft
Fence Width :
8ft 10ft 12ft
Frame material :
Metal
Size :
6x8ft 6x10ft 6x12ft 8x12ft
Guage :
3.2mm,3mm,2.5mm,11.5ga
Aperture :
2'' 2.5'' 50x50mm 60x60mm
Fence pipe :
1 5/8” OR 1 3/8” 32OD 38OD
Material :
iron wire and pipe
Surface finish :
hot dip galvanized
Wire :
2.5mm, 3.0mm,3.2mm,3.5mm
Application :
Protection,many places,Sport Field,School /gardon/ playground
Description

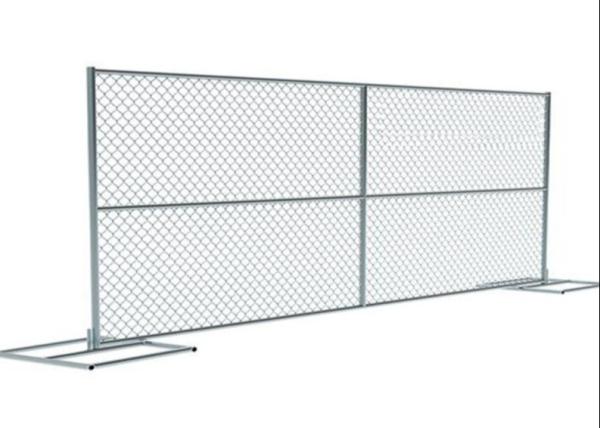

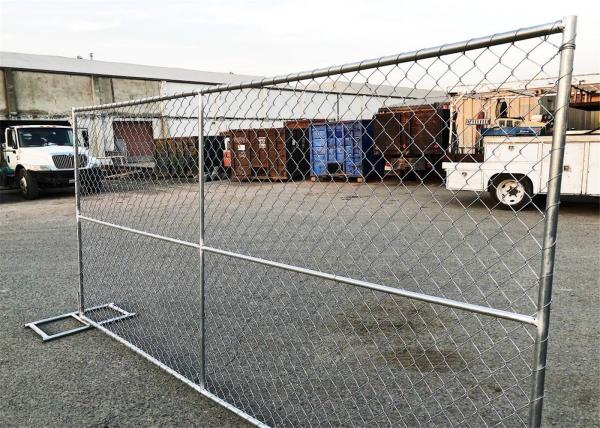

Metal Steel Construction Site Galvanized Temporary Chain Link Movable Fence

Chain link movable fence introduction

Chain link mesh for fencing, woven from steel wire, is probably the most widely used and versatile of all fencing fabrics, available in a variety of wire gauges and mesh sizes to suit specific applications. Available in three finishes, heavily galvanized, P.V.C coated with a bright core or for double protection, PVC coated with a galvanized wire core. Chain link fence is recommended for use for House Garden fronts and divisions, Children's Playgrounds, Playing Fields, and Recreational Grounds.

Chain link movable fence specification

Fence height
4ft, 6ft, 8ft (1200mm,1800 mm, 2400 mm)
Fence width/length
8ft,10ft, 12ft, 14ft, etc (2400 mm, 3000 mm, 3700 mm, 4300 mm)
Wire diameter
2.7mm, 2.5mm, 3mm
Chain link mesh size
57x57mm (2-1/4"), 50x50mm, 60x60mm, etc.
Frame tube O.D
33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness
Vertical/cross brace tube O.D
25mm or 32mm with 1.6mm (0.065") wall thickness

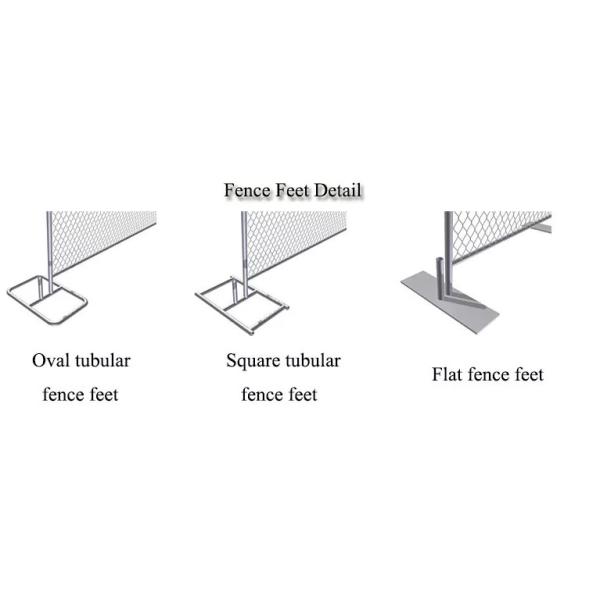

Fence base/stand
610x590mm, 762x460mm, etc
Accessories
clamps, base feet, tension wire and tension bar (optional)
Material
hot dipped galvanized
Surface treatment
All joints are welded and sprayed with a galvanized paint to cover any exposed metal

Our most popular size Height: 6’ and Length:12’ is for construction, municipalities, schools, events and

residential projects.

Height: 8’ and Length: 12’ for large construction and commercial projects that give you that added level

of security and safety.

Chain Link Fence panels comply with ASTM A392-06 standards, having superior exposure and corrosion

resistance in an outdoor construction site.

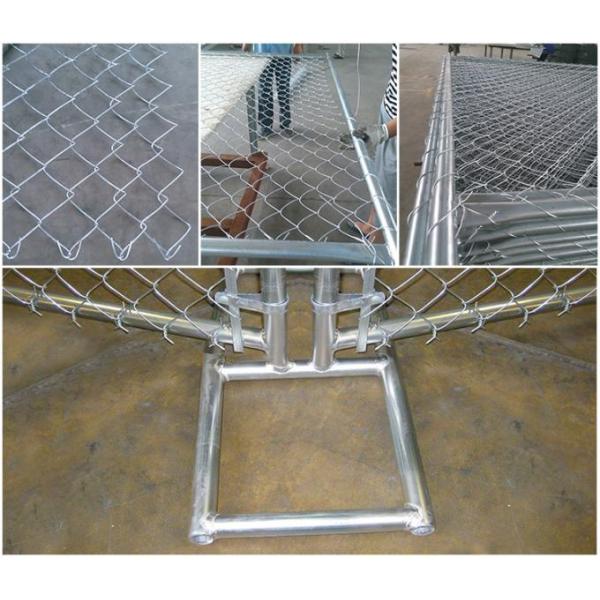

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure.

This can ensure that the temporary fencing is not damaged during the frequent moving process, and will

not be corroded even in a hostile environment.

Handcraft techniques manufacture. Panels are filled with galvanized chain link mesh and sometimes

wrapped around the frame tube with tension bars and tension bands by hand in a rather tense way.

Another option sturdy attached way. Available flat bars that use clamps to connect the two adjacent

panels.

Metal Steel 3.2mm Site Security Fencing Construction Galvanized Chain Link Movable

Metal Steel 3.2mm Site Security Fencing Construction Galvanized Chain Link Movable

Chain link movable fence usage

Construction sites and private property
Residential housing sites and schools
For major public events, sports,concerts, festivals,gatherings, Sports playground or
swimming pools.
Traffic control and crowd control.

Chain link movable fence packing

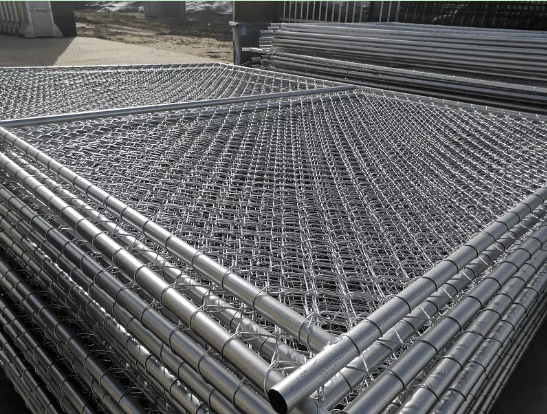

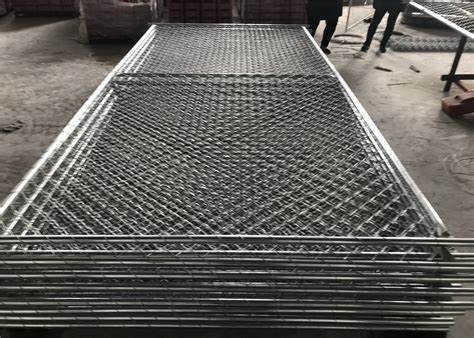

Panels: in order to load more quantity into the container, the fence panel package will be in bulk. We will load panels piece by piece.

Stands/feet: steel pallet and fastened with a nylon belt.

Clamps: in a carton. 50pcs/carton

Screen/shade cloth (if required): in bundle

Metal Steel 3.2mm Site Security Fencing Construction Galvanized Chain Link Movable
Metal Steel 3.2mm Site Security Fencing Construction Galvanized Chain Link Movable
