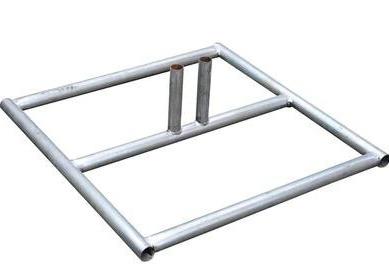

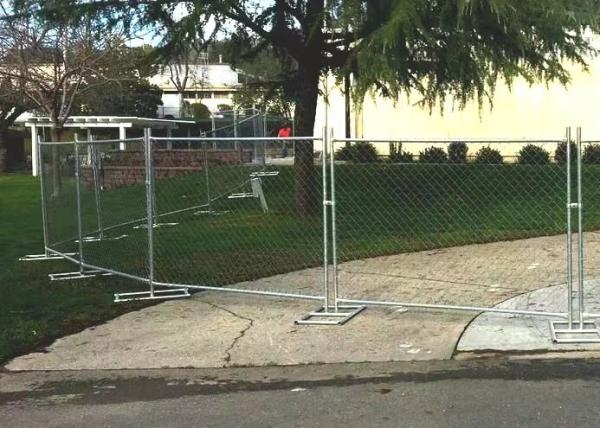

Temporary fence panel stands are used to hold chain link fence panels upright on level ground. Simply lift temporary fence panel and slide onto small uprights welded to the base. Temporary fence panels made of chain link fencing materials are popular for special events such as concerts and festivals and also for construction sites. Chain link fence panel stands are made from galvanized 1-3/8" diameter tubing and are welded in an approximate 16" x 36" rectangle. Two smaller diameter uprights are welded in place to accept the uprights of the temporary fence panel. One single temporary fence panel stand is used where two temporary panels meet since this base accepts two panel uprights. Temporary fence panels are often connected to one another with either saddle clamps (often referred to as 'kennel clamps'), or panel clamps which are heavier duty and accept a different size nut and bolt.
Temporary Chain Link Fence /Construction Fence Panels | |
Tubing | 1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) |
Thickness of Tubing | 16GA/ 1.6mm thick or as customized size |
Chain mesh aperture | 2"x2/"(50mm x 50mm) 2½”x2½”(60mmx60mm) |
Height | 6ft,8ft |
Width | 8ft,10ft,12f |
Panels Size | 6ftx8ft,6ftx10ft,6ftx12ft,8ftx12ft |
Diameter /Gauge | 10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm |
Base Optional 1 | 36" length x 30" width x 8" Height /914mmx762mmx203mm |
Base Optional 2 | 36" length x 16" width x 8" Height /914mmx406mmx203mm |
Base Optional 3 | 30" length x 18" width x 8" Height /762mm x460mm x203mm |
Standard | ASTM A392-06 |
Steel | Galvanized Steel Construction |
Finish | Corrosion-Resistant Zinc Coating |
Transport Packing | Metal pallet Wrapped with Plastic |
The Welding Corner Joints Are Galvanized Sprayed Painting To Cover Any Exposed Metal
Galvanized or powder coating Saddle Clamps, Nuts, Bolts Used To Attach Panels Together
High-Quality temporary Fence Panels Are Free-Standing, No Drilling Post Hole Is Required
Single Swing Gate, Double Swing Gate, and Heavy Duty Sliding Fence Gate With Gate Latch Supplied In Construction Sites
Easy Set-Up And Tear-Down To Save You Time And Money
Installation of these fences is very easy as the main components come ready to install from the manufacturer. Just follow these simple steps:
Set up fencing perimeter.
Install the support posts on the ground.
Install fence panels on support posts. Use a single support post for two adjacent panel posts.
Attach two to three fence clamps with two adjacent panels.
Install gates at access points.
Install additional components like barbed wire or privacy screens if you require.
1. To secure construction sites and private property
2. Temporary fencing of residential housing sites
3. Temporary fencing and crowd control barriers for major public events, sports, concerts, festivals, gatherings and so on.
4. Temporary safety fencing for swimming pools
1. The fastest delivery time;
2. Design and customize for customers for free ;
3. Advanced testing equipment has provided a reassuring guarantee for the testing of performance of products;
4. Arrange the delivery and custom clearance for customers.
