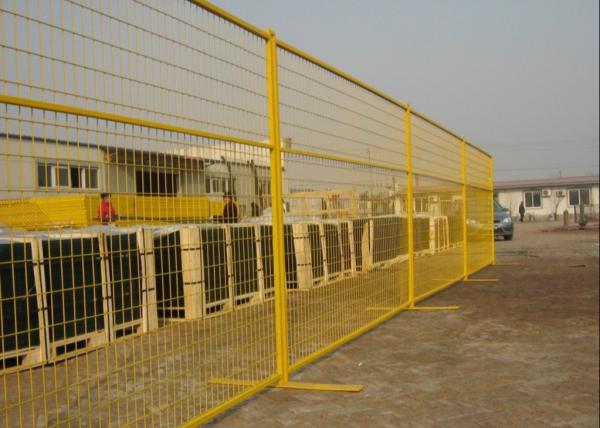

Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels
Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels
Specifications
Brand Name :
AOBIAO
Model Number :
FSL-CATF-005
Certification :
CE, ISO
Place of Origin :
Anping China
MOQ :
50 sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1400 sets per week
Delivery Time :
25-30 working days after receiving the deposit.
Packaging Details :
1. In bundle 2. On steel pallets.
Name :
Yellow Color Canada Standard Movable 6ft X10ft Steel Temporary Security Fence Panels
Wire Guage :
8ga. 9ga, 10ga.
Hole :
50x100,50x150mm etc.
Frame Pipe :
20x20mm,25x25mm,30x30mm
Fence Panel :
6x9.5ft, 6x10ft, 8x9.5ft, 8x10ft
Wire diameter :
3.0mm,3.5mm,4.0mm
Length :
8ft,9.5ft,10ft
Height :
4ft,6ft,8ft
Material :
Steel wire and pipe
Accessory :
top clip, feet
Color :
Silver, red, green, blue etc
Surface finish :
galvanized, pvc coated, powder coated
Usage :
fencing, rental, security
Description

Yellow Color Canada Standard Movable 6ft X10ft Steel Temporary Security Fence Panels

Temporary security fence panels introduction

As a professional manufacturer of CA temporary fencing, we own experienced technicians and a first-class product line. Use high-quality mild steel wire and tube as raw material, after welding with high-frequency welding technology. Plus strong corrosion treatment of electric galvanized before powder coated or hot dipped galvanized after welding. Service life can be up to 10 years.

Temporary security fence panels specification

Panel size 6ft(H)*9ft(L),6ft(H)*9.5ft(L), 6ft(H)*10ft(L)
Opening (mm) 50x100 / 50x150 / 50x200 /60*150 / 75x150
Wire Dia(mm) 3 /3.5 /4 mm
Panel Frame(mm) 25*25,30*30 etc. ,2.0,2.5
Middle beam 19*19,20*20,25*25 Thickness:1.2,1.5,1.6 ,1.8,2.0
Steel feet 3.5"x 34" *7.5mm
Top coupler Welded by round tube or square tube
Finishing of fence hot-dipped galvanized then paint, galvanized then Powder coated
Fence color Dark Green, Orange, Red etc

Temporary security fence panels details

Panel Specifications

Some of the most commonly used panel specifications, usually we have a large inventory of these popular specifications. The order can be shipped the same day.

  • Standard Panel Size: 6’×9.5′ (182.9cm×289.6cm)
  • Available Panel Sizes: 6’×4′, 6’×6′, 6’×8′, 6’×10′
  • Wire Diameter: 2.9mm-3.5mm (0.118′-0.13′)
  • Mesh Size: 50×100mm(1.97’×3.94′), also supports customization
  • Frame Border Pipe: 25×25×(1.2mm-2.5mm thickness)
  • Horizontal Middle Brace: 20x20x(1.0mm-1.5mm thickness)
  • Available Colours: Safe yellow, orange, green, blue, red, black, etc

Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels

Fence Feet, Panel Stand

Fence feet are used to support fences, which are easy to disassemble and install. It is also can be galvanized or the same anti-corrosion treatment and color as the fence panel.
Made from 6 mm solid or hollow steel and with a steel plate length of over 85 cm, it provides a solid base for the fence.

  • Feet Size: 600 – 870mm(length) × 120-160mm(width) × 5-10mm(thickness)
  • Inside Round Steel Insert: 22mm(diameter) × 160mm(height)
  • Outside Square Steel Insert: 22mm × 22mm × 160 mm(height)
  • Square Steel and Round Steel Spacing: 40mm

Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels

Top Connector

Insert the connector at the top of the fence to securely attach temporary fence panels together. These top connectors are available in solid or hollow steel and can be hot-dip galvanized or PVC coated, powder-coated finish.

  • Connection Top Size: 100mm(length) × 22mm(width) × 10mm(thickness)
  • Left Round Steel Insert: 21.6mm(diameter) × 150mm(height)
  • Outside Square Steel Insert: 21.7m

Solid steel for better stability, Hollow steel has a lower cost.

Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels

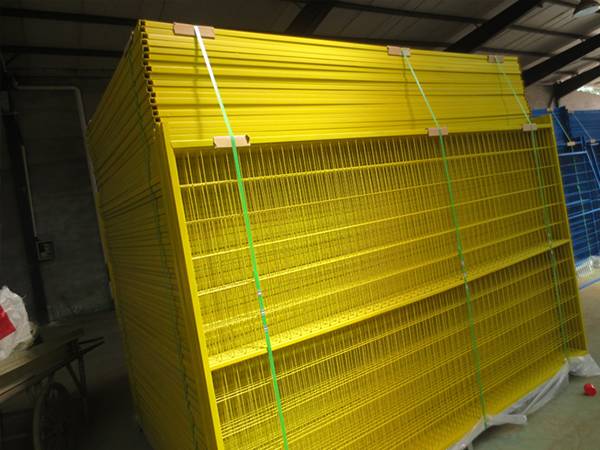

Temporary security fence panels packing

Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels
