50x100 Temporary Fencing Construction Frame Tubing 1 By 16 Ga Thick Middle Brace 3/4
50x100 Temporary Fencing Construction Frame Tubing 1 By 16 Ga Thick Middle Brace 3/4
Specifications
Brand Name :
AOBIAO
Model Number :
FSL-CATF-003
Certification :
CE, ISO
Place of Origin :
Anping China
MOQ :
50 sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1400 sets per week
Delivery Time :
25-30 working days after receiving the deposit.
Packaging Details :
1. In bundle 2. On steel pallets.
Name :
Frame Tubing 1" By 16ga Thick Middle Brace 3/4" Canada Rental Temporary Construction Fence
Panel :
6x9.5ft, 6x10ft, 8x9.5ft, 8x10ft
Guage :
8ga. 9ga, 10ga.
Pipe :
20x20mm,25x25mm,30x30mm
Mesh :
50x100,50x150mm etc.
Wire diameter :
3.0mm,3.5mm,4.0mm
Material :
Steel wire and pipe
Accessory :
top clip, feet
Color :
Silver, red, green, blue etc
Height :
4ft,6ft,8ft
Length :
8ft,9.5ft,10ft
Surface finish :
galvanized, pvc coated, powder coated
Usage :
fencing, rental, security
Description

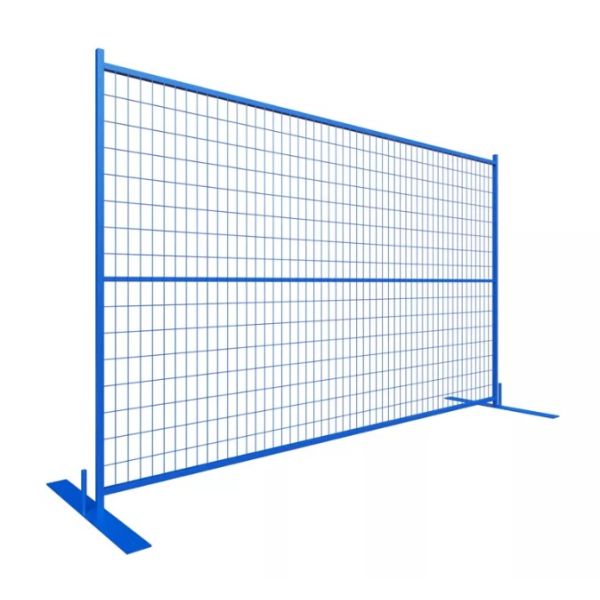

Frame Tubing 1" By 16ga Thick Middle Brace 3/4" Canada Rental Temporary Construction Fence

Temporary construction fence introduction

Material: Carbon steel wire.

Surface treatments: Hot-dipped galvanized, electric galvanized & elec galvanized then PVC.

Applications: Secure construction sites, private property, major public events, sports, concerts, festivals & gatherings, etc.

Main Market: Canada, USA, and so on.

Temporary construction fence specification

Panel Specification
Available Dimensions
(H × W)

6' × 9.5' (equal to 1.8 × 2.9 m)

8' × 9.5' (equal to 2.4 × 2.9 m)

8.2' × 8' (equal to 2.5 × 2.4 m)

8.2' × 9.5' (equal to 2.6 × 2.4 m)

6.2' × 8' (equal to 1.9 × 2.4 m), etc.
Wire diameter 4.0, 6.0 mm optional.
Mesh opening 50 × 100, 50 × 150, 75 × 150 mm optional.
Frame O.D. × TH 30 × 30 × 2, 40 × 40 × 2 mm optional.
Frame TH 2.0–2.5 mm.
Middle horizontal pipe O.D. 25 × 25 × 2 mm.
Surface treatment

Electric galvanized before powder coated.

Hot dipped galvanized after welding.
Color Dark green, yellow, red, blue, other RAL colors.
Fence feet Specification
Material Steel plate, steel solid rod, steel pipe.
Dimensions
(H × W × TH)		 600 × 110 × 8, 900 × 80 × 7 mm optional.
Hole size O.D. 19 mm.
Interior round steel rod/pipe 30 mm O.D. × 150 mm H.
Exterior square steel rod/pipe 30 × 30 × 150 mm.
Rod space 30 mm.
Surface treatment Electric galvanized before powder coated.
Top Clips Specification
Material Steel plate, steel solid rod, steel pipe.
Coupler top plate/pipe 110 × 40 × 8 mm.
Left round steel rod/pipe 30 mm O.D. × 150 mm H.
Right square steel rod/pipe 30 × 30 × 150 mm H.
Surface treatment Electric galvanized before powder coated.
Clamp Specification
Clamp center distance 80, 90, 100 mm optional.
Applied post O.D. 25, 28, 32, 38, 40, 42 mm optional.
Clamp TH 4 mm.
Bolt Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter.
Nut 15.9 mm, 17 mm optional.
Surface Treatment Hot dipped galvanized.
Weight 0.42 kg/set.
Accessory List 2 pieces clamps with 1 bolt and 1 nut.

50x100 Temporary Fencing Construction Frame Tubing 1

Temporary metal fencing accessories

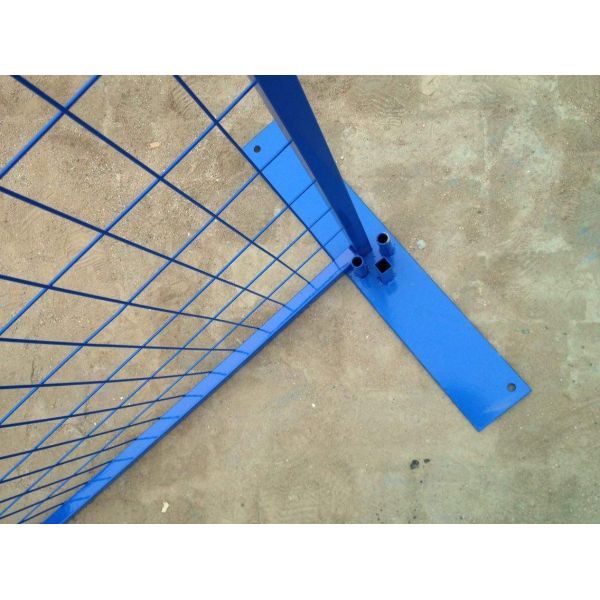

STEEL BASE

No need to dig holes or lay foundations. Only need to place the base on a flat surface. If necessary, there are two 19 mm diameter pin holes to peg the footing on the ground when the install completes.

Adapt cement or asphalt areas. With good regional adaptability, the ground is not required to be absolutely flat, nor cement or asphalt areas.

Stable enough. Technical staff will give reliable advice on platy fencing feet size according to the panel dimensions.

Three different styles are available. We provide flowing three types of base connector clips for your standard and special demand.

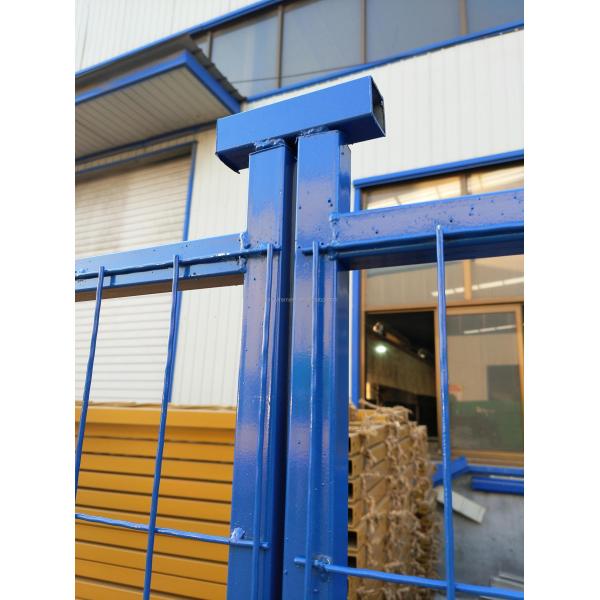

TOP CLIPS

A special fencing coupler which is popular in Canada and North America, it gives a secure clamp to the CA temporary fencing. In addition, it provides a flexible isolation angle for the requirement of rapid re-configuration of the construction area.

50x100 Temporary Fencing Construction Frame Tubing 1

50x100 Temporary Fencing Construction Frame Tubing 1

Temporary metal fencing Features:


With many available high-visibility colors to choose from.

Anchored to sturdy metal bases, connected at the top by metal clips. temporary fencing systems can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.

Temporary metal fencing Packing & container loading
1> Fence panel: Air bubble flim+metal pallet
2> Fence post: every post pack with a plastic film bag(the cap is welded well on the post)+pallet
3> Fence accessories: Carton

50x100 Temporary Fencing Construction Frame Tubing 1
