Specifications
Brand Name :
AOBIAO
Model Number :
WCF-W-01
Certification :
CE,ISO 9001
Place of Origin :
CHINA,ANPING
MOQ :
50 rolls
Price :
US$25-65 per roll
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 rolls per month
Delivery Time :
25-30 working days
Packaging Details :
1. in bulk 2. On steel pallet
Product name :
Hot Dipped Galvanized Security Field Agricultural Fence for Cattle
Material :
low carbon electric galvanized wire
Surface Treatment :
Electro galvanized or hot-dipped galvanized
Height :
700-2400mm
Edge wire diameter :
2.5mm,3.0mm
Inner wire diameter :
2.0mm,2.5mm
Roll Length :
30m/roll,50m/roll
Horizontal wire quantity :
10
Characteristics :
Corrosion resistance, high tensile strength wire
Advantage :
Less weight, easy transport, fast installation
Description

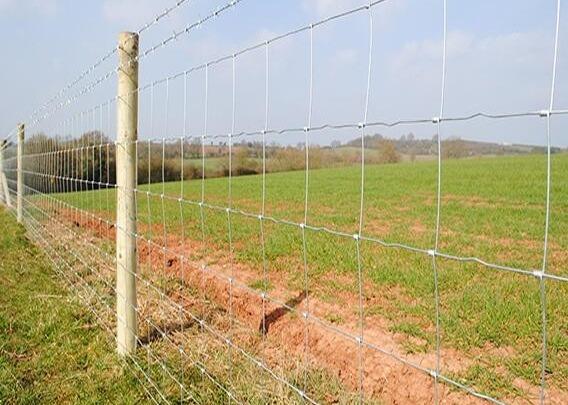

Hot Dipped Galvanized Security Field Agricultural Fence For Cattle

Brief Introduction

Farm fence is also a kind of popular fence for fields or agriculture.

It is a type of very economical fence for the farm, orchard, fields, grasslands, forest zone ...etc.

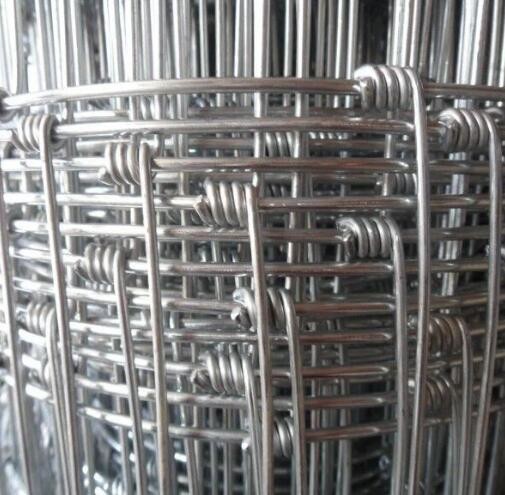

The formation of the field fencing is automatic twist plait by the line wire and the cross wire. So the fencing mesh is knotted.


And the spacing between the line wire is different, smaller spacing in the bottom of mesh panel, then the spacing become much more bigger than the the bottom one.


To design like that is to protect the little rodents or animals from getting through.

2.4m Hot Dipped Galvanized Steel Cattle Fencing Security Field Agricultural

Specification

Material: low carbon electric galvanized wire, low carbon hot dipped galvanized iron wire, high carbon hot dipped galvanized wire, high strength galvanized steel wire.
Height: 700--2400mm
Post distance: 2500mm; 3000mm
Edge wire× inner wire: 2.5mm× 2.0mm; 2.5mm× 2.5mm; 3.0mm× 2.5mm
Vertical wire space: 150mm; 300mm

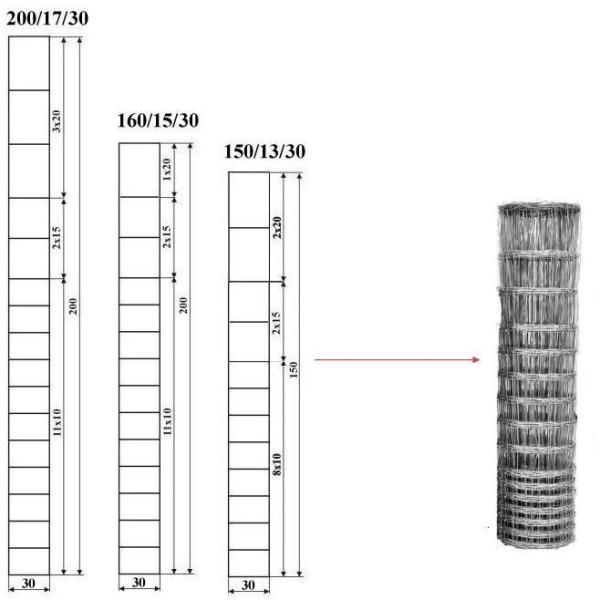

Horizontal wire space: 15× 100mm+2× 150mm+3*200mm; 16× 50mm+4× 100mm+3× 150mm+1× 200mm; according to the height to design mesh sorting specifications; or as your request.
Length: 30m/roll; 50m/roll

Num Type specification Gross weight Top and bottom wire diameter In wire diameter Volume diameter
kg mm mm mm
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0 270
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2.0 270
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0 270
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.2 270
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0 270
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2.0 270
7 9/150/1245/50 102+114+127+140+152+178+203+229 26.0 2.5 2.0 270
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2.0 270
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0 270
10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2.0 270

2.4m Hot Dipped Galvanized Steel Cattle Fencing Security Field Agricultural

Application

cattle,horse paddock fence

Deer,wildlife and game fence

Sheep and goat fence

Property line fence

Parks and public areas

Emu and ostrich enclosures

Orchard and vineyard fence

Features

  • Extremely strong and durable

  • Small mesh opening discourage animals from putting heads through

  • Woven construction allows fence to conform to uneven terrain
  • Long lasting and rust resistant

2.4m Hot Dipped Galvanized Steel Cattle Fencing Security Field Agricultural

Our Service:

Cattle Fence Order Guide:
1. We take great pride in our work and in the wide variety of cattle fence that we offer.
2. We are specializing in servicing the US market, European Market.
3. Please be aware that our production lead time depend on specific terms and items quantities.
4. Our success has been based on our understanding of the demands and nature of promotional and market deadlines.
5. We ensure our order delivered on time.

FAQ:

1. Are the prices negotiable?
Yes, we will consider it accordingly.


2. Can I order in small quantity?
Sure. Big business sometimes start with small order.

3. What about delivery time after we placed the order?
Please inform us details about your order or project. We will have proper arrangement then.

4. What about your sample delivery?
Truly, we offer samples. Delivery of sample may be via express, air or ship, whichever agreed by both sides.

5. Will you get the lowest shipping cost for us?
Usually we ship from the Tianjin by sea. Please confirm to us if you have co-load request. We will discuss with your supplier and make satisfying arrangement.
