Specifications
Brand Name :
AOBIAO
Model Number :
ACF-W-16
Certification :
CE,ISO 9001
Place of Origin :
CHINA,ANPING
MOQ :
50 sets
Price :
US$25-55 per set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 sets per month
Delivery Time :
25-30 working days
Packaging Details :
Packing 1)Fence panel: 1> in bulk 2>plastic film + metal/wooden pallet 2)Fence post: plastic bag + metal/wooden pallet (with rainhat installed) 3)Fence accessories: plastic bag + carton box (clips & screws)
Product name :
Military site anti-intrusion 358 pvc coated security fence
Type :
Fencing, Trellis & Gates
Surface Treatment :
galvanized +pvc coated
Height :
2.0m,2.4m,3.0m,3.6m
Width :
2.5m.3.0m
Color :
Black, Green,Gray
Horizontal wire :
3.0 ,3.5,4.0mm
Vertical wire :
4.0mm
Mesh size :
12.7x76.2mm
Material :
low carbon steel wire
Description

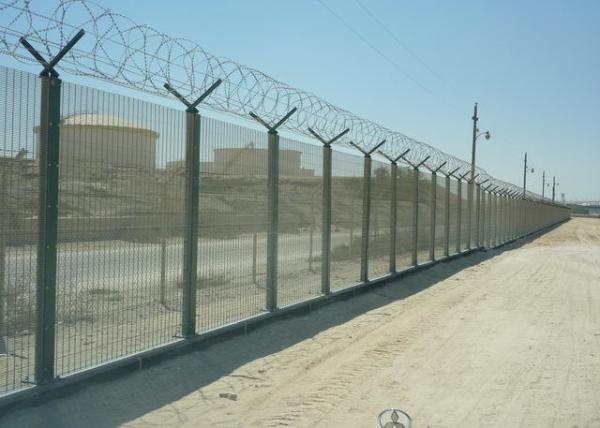

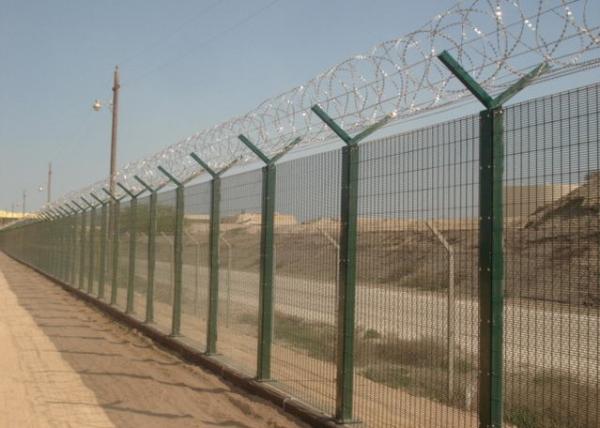

Military site anti-intrusion 358 pvc coated security fence top with razor barbed wire

Brief Introduction

358 fencing system,the ultimate in high security perimeter protection, this system is extensively used when defend able space is paramount, used throughout the world in varying applications.

358 fencing is highly regarded as the most difficult mesh security fence to penetrate, providing an excellent defence against climbing and cut-through.

358 fencing is the popular choice when securing the perimeter of your business. 358 fencing's unique design ensures maximum security to your building, because of the anti-cut, anti-climb and enhanced security barrier that ensures maximum visibility for security cameras.

It is also very difficult and time consuming to attempt to pass items from the protected area 358 fencing.

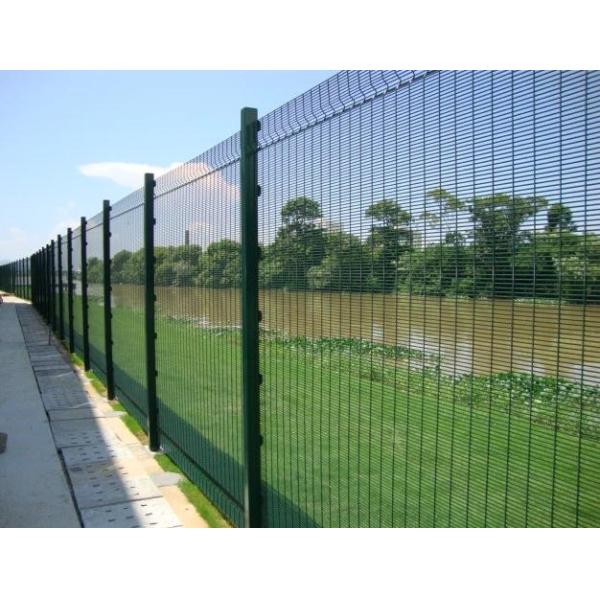

Military Site Anti Intrusion Pvc Coated 358 Mesh Fencing Top With Razor Barbed Wire

Specification

Panel:

Wire dia: 3mm-5mm.

Mesh size: 12.7*76.2mm

Package: wrapped with shrink film or packed in pallet.

Panel width: 2400 mm.

Panel height: 2000–3600 mm.

Post:

Material: High grade steel.

Post type: RHS post or H post.

Post section: 60 × 60, 80 × 80, 100 × 100, or 120 × 120 mm.

Post Plate thickness: 2.5, 3.0, 4.0, 5.0 mm.

Post cap: metal caps or plastic cap.

Master View 358 2.1m 2.4m 3.0m
Panel Height 2134mm 2438mm 2997mm
Panel Width 2515mm 2515mm 2515mm
Mesh Size 12.7x76.2mm 12.7x76.2mm 12.7x76.2mm
Horizontal Wire 4mm 4mm 4mm
Vertical Wire 4mm 4mm 4mm
Panel Weight 50kg 57kg 70kg
Posts 60x90x4mm 60x90x4mm 80x80x4mm
Post Length 2.8m 3.1m 4.0m
Clamp Bar 40x6m slotted 40x6m slotted 40x6m slotted
Fixings 8 security nuts
No. Of fixings 8 9 11
Other specifications could be customized by your requirements

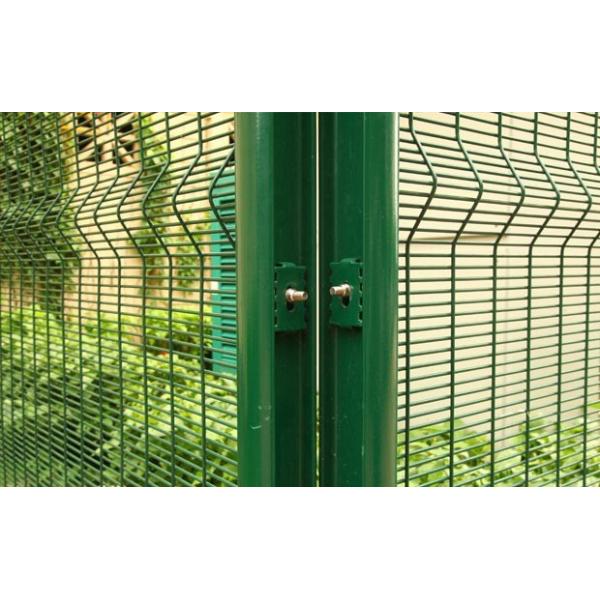

Military Site Anti Intrusion Pvc Coated 358 Mesh Fencing Top With Razor Barbed Wire

Application

358 wire mesh fence gates

Shipping Port Security fencing

Electrical sub-station fencing

Water Treatment works

Gas pipelines Security Fence

High security window grilles

Balustrades Security Fence

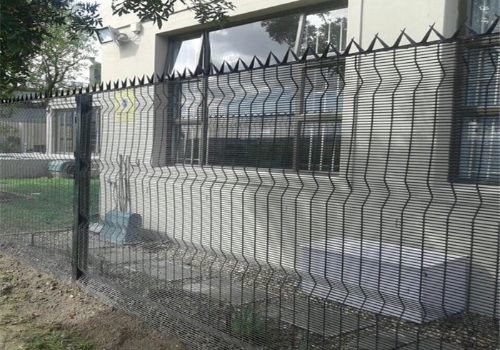

Military Site Anti Intrusion Pvc Coated 358 Mesh Fencing Top With Razor Barbed Wire

Features

High density yet good viewing visibility.

Anti-climbing, anti-cutting, anti-corrosion.

Easy to install and long service life.

Anti-Climb.

Protects against cut-through.

Increased delay factor.

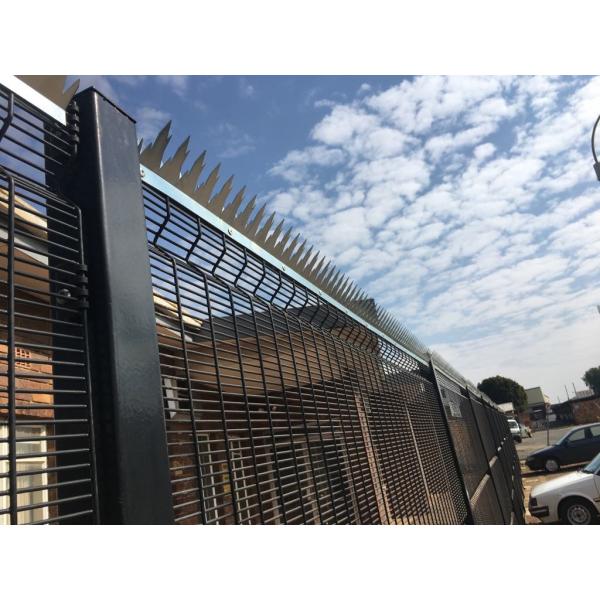

Military Site Anti Intrusion Pvc Coated 358 Mesh Fencing Top With Razor Barbed Wire

Our service:

1. Free Sample for the quality test;

2. We provide quality iron fence panel, post, fence hardware, and accessories. To make sure you will have complete fence projects on time;

3. If you don't see what exactly you need, or the specification you need is special, contract with us and our design team will satisfy your demand asap.

4. Before the order can be confirmed finally, we would strictly check the material, color, dimension of the sample step by step.

5. Our salesman, also as an order follower, would trace every phase of production from the beginning.

Military Site Anti Intrusion Pvc Coated 358 Mesh Fencing Top With Razor Barbed Wire
