2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating
2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating
2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating
2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating
Specifications
Brand Name :
AOBIAO
Model Number :
FSL-PF-003
Certification :
ISO,CE
Place of Origin :
Anping China
MOQ :
50 sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
About 25-30 days after receiving the deposit.
Packaging Details :
pallets
Product name :
2.75m Long By 2.4m High Hot Dipped Galvanized And Powder Coating Palisade Fencing Panels
Width :
2.75m, 2.98m, 3.0m
Height :
1200mm-3000mm
Rail Angle :
50x50mm
Upright Pales :
62mm, 65mm, 68mm,70mm
Angle Thickness :
5.0mm, 6.0mm
Pale thickness :
2.0mm, 3.0mm
H Post :
50x100mm
Style :
D section or W section
Surface finish :
hot dip galvanized, powder coating
Type :
Fencing,Trellis & Gates,"D"or"W",palisade fence
Application :
Residential,Garden,school,fence
Usage :
Home Decration,Garden Decoration,Interior Decoration,Outdoor Decoration
Keywords :
palisade fence,Steel Palisade Fencing
Pale top :
Single pointed Triple pointed Square Round and notched Rounded
Description

2.75m Long By 2.4m High Hot Dipped Galvanized And Powder Coating Palisade Fencing Panels

Palisade fencing panels introduction

It is a high spec security fencing it is designed to provide a formidable barrier against intrusion and theft. It is manufactured using hot-formed and cold-rolled substantial steel sections. It is a cost effective way to providing a high level of security to the boundary line of any property.

2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating

Palisade fencing panels size

Height
Post Dimensions
Rail Dimensions
Support Legs
Corrugated Steel Palisades

1.2m
102x44 or 100x55
40x40x6mm
1
W - 2.0mm or D - 3.0mm

1.5m
102x44 or 100x55
40x40x6mm
1
W - 2.0mm or D - 3.0mm

1.8m
102x44 or 100x55
40x40x6mm
1
W - 2.0mm or D - 3.0mm

2.0m
102x44 or 100x55
45x45x6mm
1
W - 2.0mm or D - 3.0mm

2.1m
102x44 or 100x55
45x45x6mm
1
W - 2.0mm or D - 3.0mm

2.4m
102x44 or 100x55
45x45x6mm
1
W - 2.0mm or D - 3.0mm

2.7m
102x44 or 100x55
50x50x6mm
1
W - 2.0mm or D - 3.0mm

3.0m
127x76
50x50x6mm
2
W - 2.5mm or D - 3.5mm

3.6m
127x76
50x50x6mm
2
W - 2.5mm or D - 3.5mm

Palisade security fencing drawing

2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating

Palisade security fencing details and options

Post centers

2.75m

Heights

1.2m
1.5m
1.8m
2.0m
2.1m
2.4m
3.0m

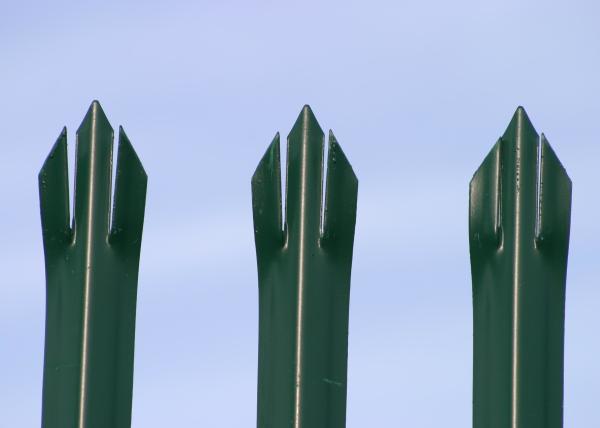

Paling tops

Single pointed
Triple pointed
Square
Round and notched
Rounded

Pale thickness

‘W’ profile 2.0mm – commercial specification
‘W’ profile 2.5mm – general purpose to BS: EN: 1722 Pt 12
‘W’ profile 3.0mm – security purpose to BS: EN: 1722 Pt 12
‘D’ profile 3.0mm – general purpose to BS: EN: 1722 Pt 12
‘D’ profile 3.5mm – security purpose
‘D’ profile 4.0mm – security purpose to BS: EN: 1722 Pt 12

Horizontal cross rails

Three standard sizes to suit height and site requirements.

45x45mm for 1.2, 1.5 and 1.8m heights
50x50mm for 2.0, 2.1 and 2.4m heights
65x50mm for 3.0m

2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating

Accessories

2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating

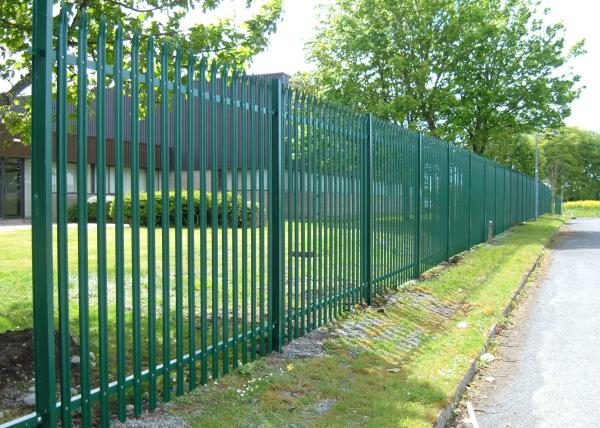

Palisade fencing panels usage

Common uses include railway and track protection, schools, colleges and universities, research laboratories, motorways and highways protection, utility companies protection and around industrial sites.
