Specifications
Brand Name :
AOBIAO
Model Number :
AB-PF-03
Certification :
ISO9001,CE
Place of Origin :
Anping China
MOQ :
50 sets
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
5000sets per month
Delivery Time :
15-20 work days
Packaging Details :
1.plastic film/Pallet or according to customer's request 2.plastic film shrink with pallet or wooden 3.also can be customized
Product Name :
Metal D And W Pale Industry Security Palisade Fencing Panels
Application :
Garden,garage,home,factory,school,villa,etc
Service :
Video of installation
Post Type :
Dig In, Bolt Down
Frame finishing :
Hot dipped galvanized,powder coated
Pale Type :
Triple Pointed, Round & Notched, Single Point
Feature :
High Strength,Easily Assembled
Wide :
2.4m,2.75m,3m or as customers demands
High :
1.2m, 1.5m,1.8m, 2.1m,2.4m etc.
Color :
as your demands
Stock :
Have stock or accept customer made
Description

Metal D And W Pale Industry Security Palisade Fencing Panels

Metal D And W Pale 1.5m Steel Palisade Fencing Industry Security Panels

About palisade fence:

Palisade fence is a high security fencing, it is very popular in Europe market, Australia market, South Africa market. It is designed to provide a protection against introduction and theft and provides a good alternative to a high wall. It is manufactured using hot-formed and cold-rolled substantial steel sections. Also it has a very neat-looking option,like different pales sections and pale top point, and can be painted easily with your colour of choice to match the environment or buildings.Palisade fence is easily to install and move.

Specifications of palisade fence:

Fence panel height 1m-6m
Fence panel width 1m-3m
Pale height 0.5m-6m
Pale width W pale 65-75mm d pale 65-70mm
Pale thickness 1.5-3.0mm
Angle rail 40mmx40mm 50mmx50mm 63mmx63mm
Angle rail thickness 3mm-6mm
RSJ post 100mmx55mm 100mmx68mm 150mmx75mm
Square post 50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
Square post thickness 1.5mm-4.0mm
Straight fishplates or post clamps 30mmx150mmx7mm 40mmx180mmx7mm
Bolts and nuts M8XNo.34 for pale fixing M12xNo.4 for rail fixing

Fence panel height 1m-6m
Fence panel width 1m-3m
Pale height 0.5m-6m
Pale width W pale 65-75mm d pale 65-70mm
Pale thickness 1.5-3.0mm
Angle rail 40mmx40mm 50mmx50mm 63mmx63mm
Angle rail thickness 3mm-6mm
RSJ post 100mmx55mm 100mmx68mm 150mmx75mm
Square post 50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
Square post thickness 1.5mm-4.0mm
Straight fishplates or post clamps 30mmx150mmx7mm 40mmx180mmx7mm
Bolts and nuts M8XNo.34 for pale fixing M12xNo.4 for rail fixing

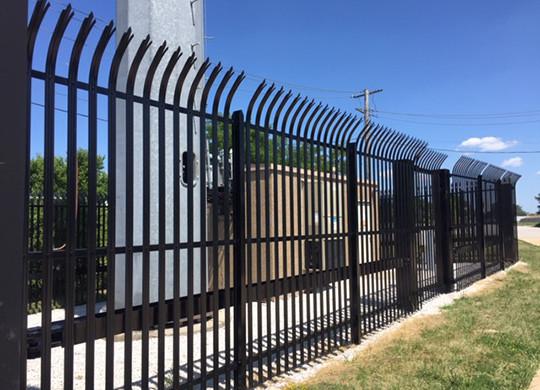

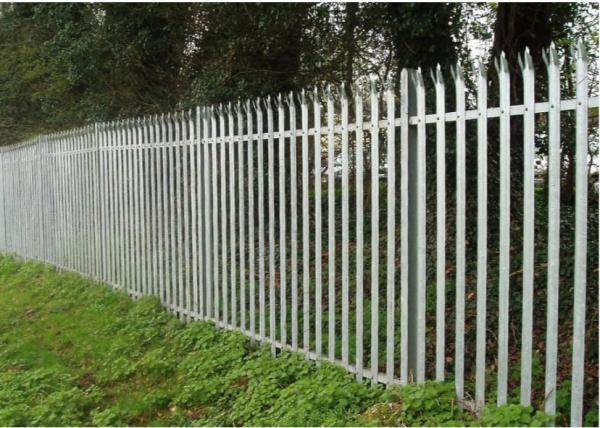

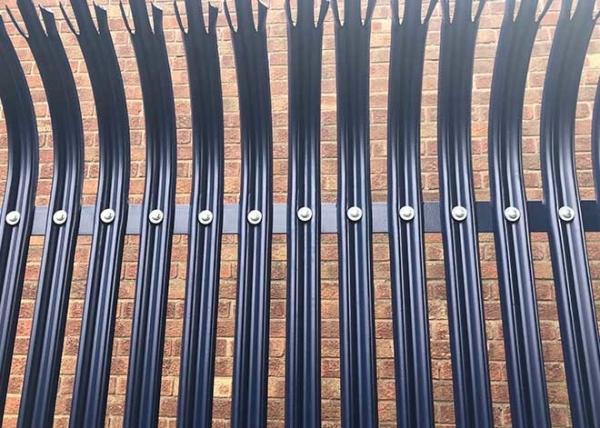

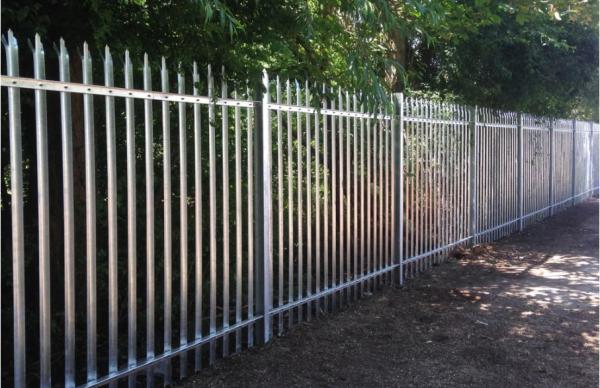

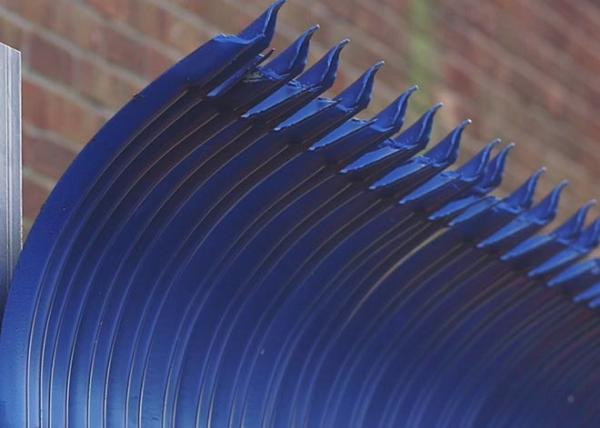

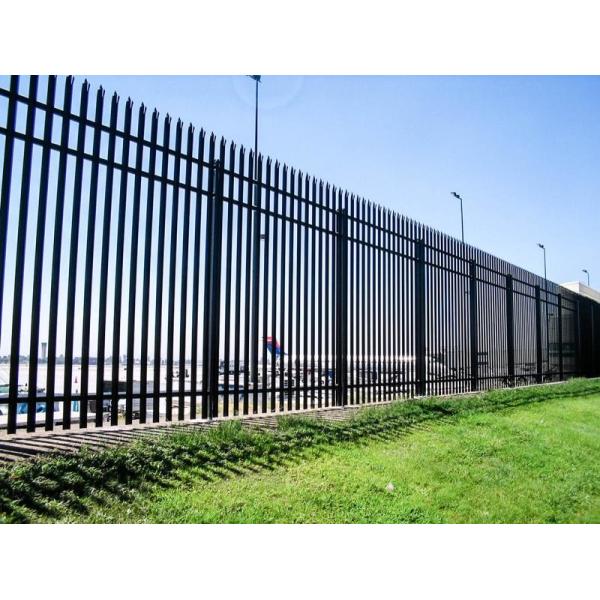

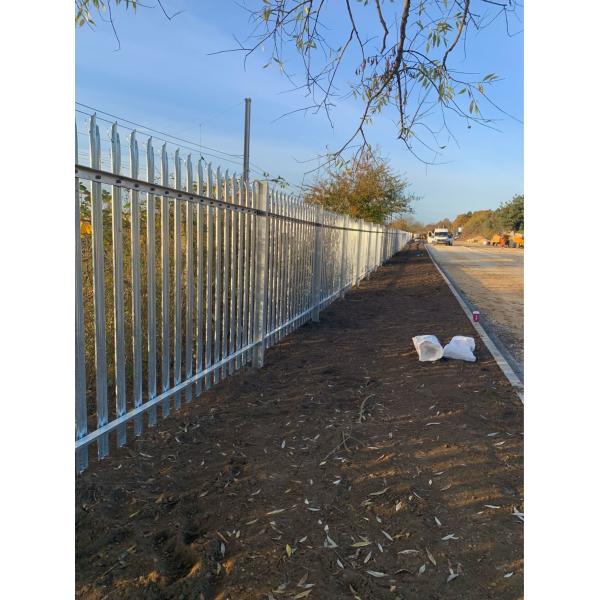

Show of palisade fence:

Metal D And W Pale 1.5m Steel Palisade Fencing Industry Security PanelsMetal D And W Pale 1.5m Steel Palisade Fencing Industry Security PanelsMetal D And W Pale 1.5m Steel Palisade Fencing Industry Security PanelsMetal D And W Pale 1.5m Steel Palisade Fencing Industry Security PanelsMetal D And W Pale 1.5m Steel Palisade Fencing Industry Security Panels

Advantage:

The steel palisade fencing is very tough with smooth surface and sharp profiled heads.
According to the variety of heads, palisade fencing can be divided into steel profile head, triple pointed head or single pointed head.

Steel palisade fencing makes ideal rigid barriers for garden, yards and other fields offering good visual integrity to the environments.

Metal D And W Pale 1.5m Steel Palisade Fencing Industry Security Panels

Fence Installation:

1. Posts:

Available with welded fish plates or slotted, complete with loose fish plates that can be concreted-in, base plated for bolting down or cranked. Posts can be vertically extended to take barbed or razor wire.

2. Panels:

Panels can be easily raked to allow for most site conditions, and can also be welded at our factory for added security.

3. Fixings:

All fixings are anti-vandal.

We can supply additional toppings for security fences including razor wire coils, razor wire tape, barbed wire, rotating spikes.

We can also prepare fence posts to take electric security fence on the back and work closely with the major electric security fence manufacturers.

FAQ:

1. What's the price of your fence?

A: We keep innovation and reducing the production cost, so we will provide you with the best price. Please send inquiry to us for more details.

2. I need different dimensions and styles. Can you customize the fences for me?

Yes, we can customize the fence according to your requirement.

3. Are the fences easy to wrap or rust?

A: Our fences are processed by full welding, sand blasting and phosphating, then powder coated by famous brand powder (Akzo Nobel or Dupont, etc.), which ensure the fences seamless and anti-rust, and generally we provide 5-year warranty.

4. How can I get quotation and free sample?

A: You need to send inquiry to us before getting them.

5. What is the delivery time?

A: Usually 15-20 days after receiving advanced payment.

6. What is the payment term?

A: Usually payment term is 30% by T/T in advance, the balance by T/T against the fax copy of B/L.

Our Service:

1.) Free Sample for the quality test;

2.) We provide quality iron fence panel, post, fence hardware, and accessories. To make sure you will have complete fence projects on time;

3.) If you don't see what exactly you need, or the specification you need is special, contract with us and our design team will satisfy your demand asap.

Packing and delivery:

Metal D And W Pale 1.5m Steel Palisade Fencing Industry Security PanelsMetal D And W Pale 1.5m Steel Palisade Fencing Industry Security Panels
