50x100mm Post Triple Pointed Palisade Fencing Hot Dip Galvanized Gp Security Grade
50x100mm Post Triple Pointed Palisade Fencing Hot Dip Galvanized Gp Security Grade
50x100mm Post Triple Pointed Palisade Fencing Hot Dip Galvanized Gp Security Grade
50x100mm Post Triple Pointed Palisade Fencing Hot Dip Galvanized Gp Security Grade
Specifications
Brand Name :
AOBIAO
Model Number :
FSL-PF-001
Certification :
ISO,CE
Place of Origin :
Anping China
MOQ :
50 sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
About 25-30 days after receiving the deposit.
Packaging Details :
pallets
Product name :
Hot Dip Galvanized GP And Security Grade Steel Palisade Fencing
Fence height :
1.2m-3.0m
Length :
2.75m, 2.98m, 3.0m
Pale :
62mm, 65mm, 68mm,70mm
Angle :
50x50mm
Angle Thickness :
5.0mm, 6.0mm
Pale thickness :
2.0mm, 3.0mm
Post :
50x100mm
Style :
D section W section
Surface finish :
hot dip galvanized, powder coating
Type :
Fencing,Trellis & Gates,"D"or"W",palisade fence
Application :
Residential,Garden,school,fence
Usage :
Home Decration,Garden Decoration,Interior Decoration,Outdoor Decoration
Width :
2750mm,2.0m-3.0m,2.75m
Keywords :
palisade fence,Steel Palisade Fencing
Frame material :
Metal
Description

Hot Dip Galvanized GP And Security Grade Steel Palisade Fencing

Steel palisade fencing introduction

Palisade fencing is manufactured and supplied in a wide range of styles, heights, and designs to suit applications ranging from general-purpose boundary demarcation to high security applications.

Palisade is available with either a D or W profile and in seven heights ranging from 1.2-3.0m.

50x100mm Post Triple Pointed Palisade Fencing Hot Dip Galvanized Gp Security Grade

Steel palisade fencing specification

Heights: 0.9 m, 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.4 m, 3.0 m, 3.6 m as standard (other heights available on request)
Pale profile: D-section or W-section (other sections available on request)
Pale head styles: rounded, rounded and notched, single-spike, splayed triple-spike
Pale material thickness: D-section 2.5 mm to 3.5 mm W-section 2.0 mm to 3.0 mm
Panel width: 2750 mm as standard (other widths available on request)
Rails: rolled steel angle (RSA) 50 x 50 x 2.75 mm
Posts: 102 x 44 mm steel RSJ (127 x 76 mm for fences above 2.7 m) hot-dip galvanised and optional polyester powder coat finish
Fixings: zinc-plated steel bolts with shear nuts as standard (stainless steel rivets available for higher security)
Finish: hot-dip galvanised plus optional polyester powder coating in green, black or other colours on request
Compliance: BS EN 1722-12, BS EN ISO 1461, NG TS 2.22
Additional security measures: contact us to discuss options (eg barbed wire, razor wire or rotating toppings, monitored electric pulse fencing, concrete sills, buried pales)

Steel palisade fencing features

Strong, durable steel palisade fence

Conforms to BS EN 1722: Part 12

Meets gas, water and electric company specifications

General purpose, commercial and high-security grades

Seven heights from 1.2-3.0m

Five paling top options

Security toppings if required

Powder coating option

Matching gates

Steel palisade fencing details and options

Post centers

2.75m

Heights

1.2m
1.5m
1.8m
2.0m
2.1m
2.4m
3.0m

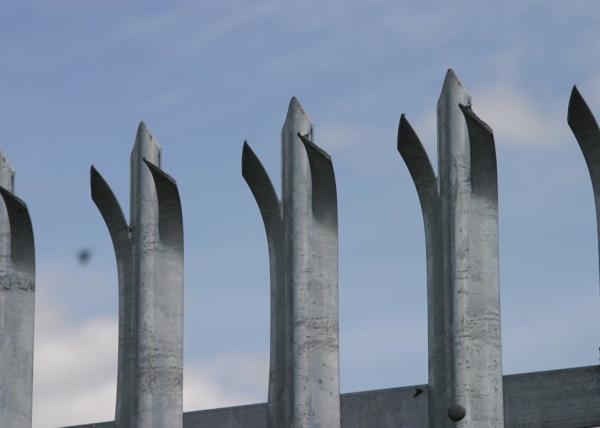

Paling tops

Single pointed
Triple pointed
Square
Round and notched
Rounded

Pale thickness

‘W’ profile 2.0mm – commercial specification
‘W’ profile 2.5mm – general purpose to BS: EN: 1722 Pt 12
‘W’ profile 3.0mm – security purpose to BS: EN: 1722 Pt 12
‘D’ profile 3.0mm – general purpose to BS: EN: 1722 Pt 12
‘D’ profile 3.5mm – security purpose
‘D’ profile 4.0mm – security purpose to BS: EN: 1722 Pt 12

Horizontal cross rails

Three standard sizes to suit height and site requirements.

45x45mm for 1.2, 1.5 and 1.8m heights
50x50mm for 2.0, 2.1 and 2.4m heights
65x50mm for 3.0m

Installation

Posts

RHS 100x55 IPE

Available with welded or slotted fishplates, complete with loose fishplates that can be concreted-in, base-plated for bolting down, or cranked.

Posts can be vertically extended to take barbed or razor wire.

Panels

Panels can be raked to allow for most site conditions.

Fixings

All fixings are anti-vandal.
For added security, pales can be welded in place.

Finishes

Hot dip galvanised to BS EN ISO 1461 as standard.

Polyester powder coating option.

Accessories

Security topping options

Razor wire coils
Razor wire tape
Barbed wire
Rotating spikes

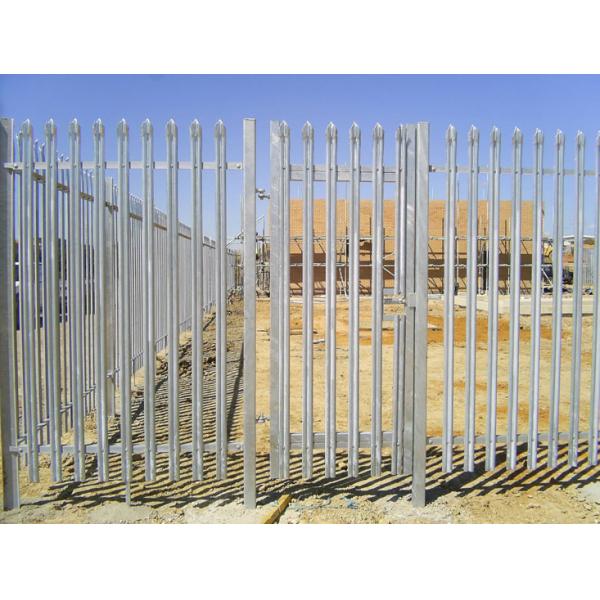

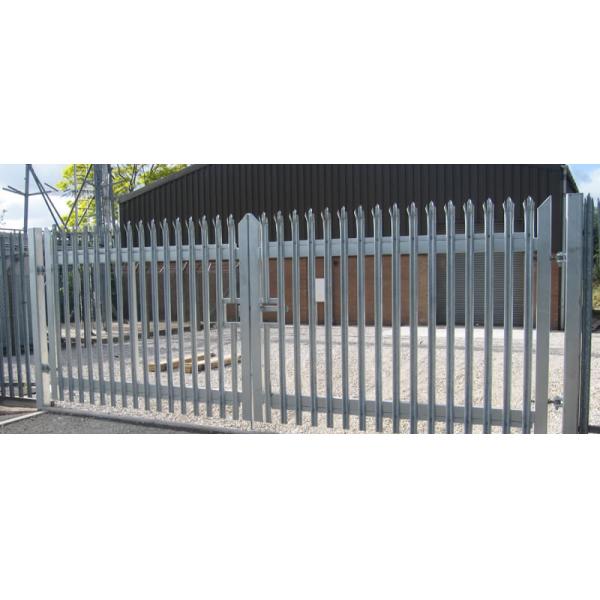

Gates

Standard and tailor-made gates are available to suit requirements.

They are supplied multi-holed to suit site conditions with an anti-climb PROTECTORGATE slide latch, rear-hung adjustable hinges and padlockable drop-bolts
