Specifications
Brand Name :
Ruly Steel
Model Number :
Ruly0286
Certification :
SGS, BV, ISO
Place of Origin :
China
MOQ :
500 Square Meter
Price :
USD29-USD99 Per Square Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 Square Meter Per Month
Delivery Time :
30 Days
Packaging Details :
As request
Features :
Pre Engineered Building Structure
Type :
PEB Steel Buildings
Application :
logistics warehouse, workshop, plant
Raw steel material :
Q235B, Q355B
Surface treatment :
Painting
Service life :
50 Years
Wall and Roof :
Sandwich panel
Working scope :
Design,Fabrication, Installation
Description

Pre Engineered Building Structure Steel Support Structure Construction For Building

Material list and technical parameters:

  Item Specification
1 Main Pillar & Beams Q355B
2 Roof Purlins

C200*70*20*2.5

Galvanize

3 Tie Bar Φ114*4
4 Pillar Supporters Φ20
5 Tie rod Φ12,Φ32*2.5
6 Kneebracing L50*4
7 Foundation bolt M24
8 General Bolts C Grade
9 Bolt screw Φ19
10 High Strengthened Bolts 10.9 Grade
11 Roof Panel 0.5mm Galvanized Steel Plate
12 Ribbon skylight 1.2mm FRP
13 Floor Steel deck 1.00 mm steel plate
14 Doors Sliding door
15 Windows Steel windows
16 Gutters 3mm thick galvanized steel
17 Edge and corner wrapping 0.5mm Galvanized Steel Plate
18 Fans
19 Accessories
20 Down pipe Φ140PVC

Steel structure advantages:

(1) Wide range of applications: applicable to factories, warehouses, office buildings, stadiums, hangars, etc. Suitable for single-story, large-span buildings as well as multi-storey or high-rise buildings.
(2) Simple construction and short construction period: all components are prefabricated in the factory, and the site is simply assembled, which greatly shortens the construction period. A 6000 square meter building can be basically installed in 40 days.
(3) Durable and easy to repair: The steel-framed design of a general-purpose computer can withstand harsh weather conditions and requires minimal maintenance.
(4) Beautiful and practical: the steel structure building lines are simple and smooth, with a modern sense. The color wall panels are available in a variety of colors, and the walls are available in other materials for greater flexibility.
(5) Reasonable cost: The steel structure has light weight, reduces the basic cost, and has a fast construction speed. It can be completed and put into operation as soon as possible, and the comprehensive economic benefits are much better than the concrete structure.

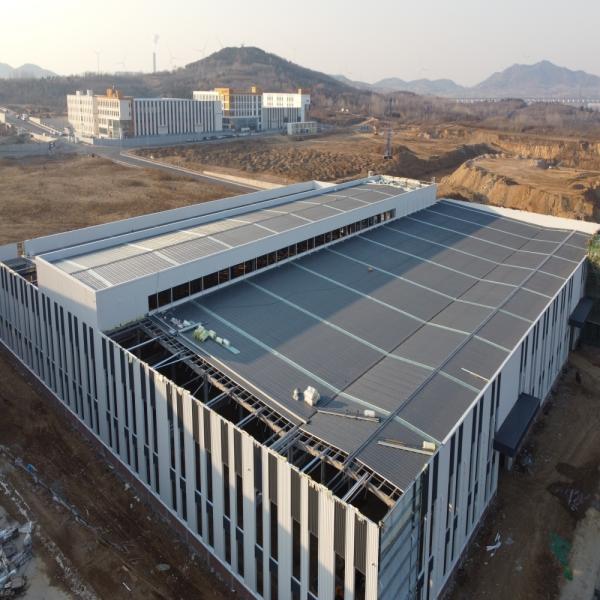

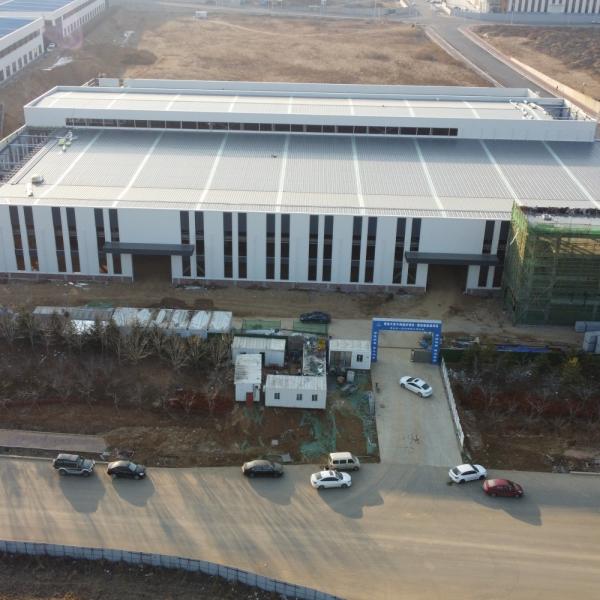

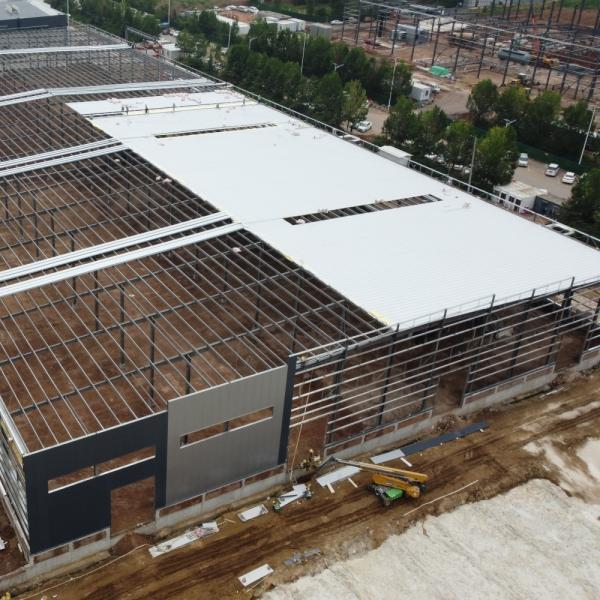

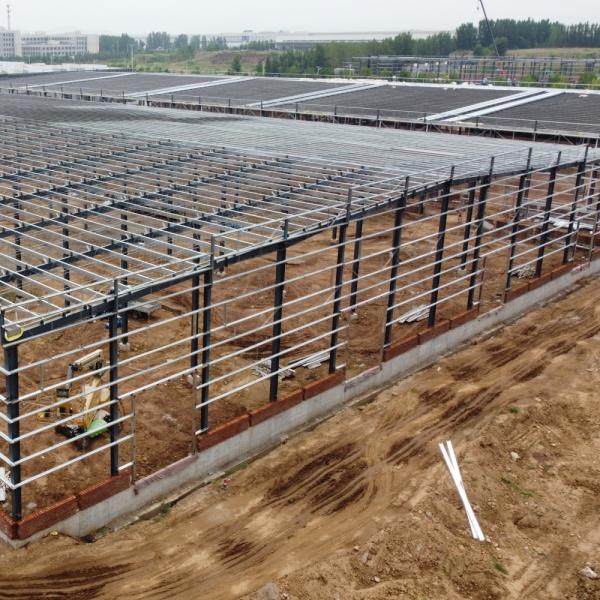

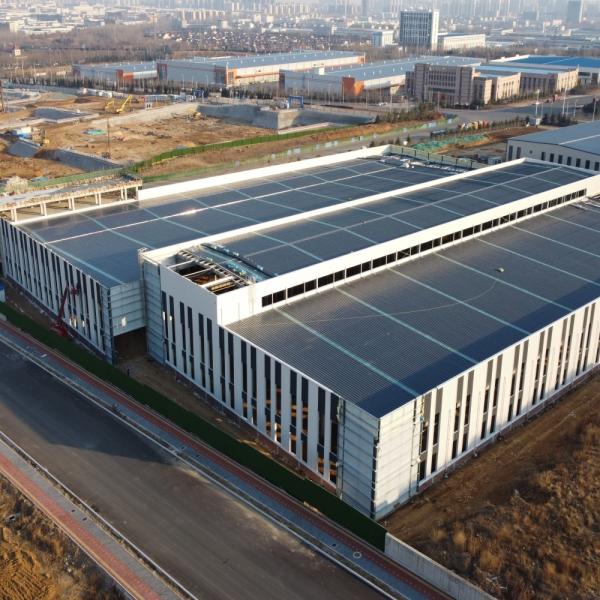

Steel structural member:

Pre Engineered Steel Building Structure Support Structure Construction For Building

Pre Engineered Steel Building Structure Support Structure Construction For Building

Pre Engineered Steel Building Structure Support Structure Construction For Building

packing:

Pre Engineered Steel Building Structure Support Structure Construction For Building

Pre Engineered Steel Building Structure Support Structure Construction For Building

Company Introduction:

Company Introduction
Our company specializes in contracting light steel and heavy steel structure engineering, and is a company integrating design, production and construction. We have passed ISO9001:2008 quality management system, elaborate production, attention to detail, over the years to build large steel structure workshops, warehouses, car showrooms, stadiums, landscape steel structures. Strict quality management and control of engineering projects, and relying on excellent product quality and engineering quality have won the recognition and affirmation of our customers.
