Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction
Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction
Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction
Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction
Specifications
Brand Name :
Ruly Steel
Model Number :
Ruly0079
Certification :
SGS, BV, ISO
Place of Origin :
China
MOQ :
500 Square Meter
Price :
USD29-USD99 Per Square Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 Square Meter Per Month
Delivery Time :
30 Days
Packaging Details :
As request
Application :
Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction
Usage :
Steel Structure Workshop, Metal Warehouse, Factory Buildings, Garment Factory, Clothes Plant
Type :
Prefabricated Steel Buildings
Working scope :
Design,Fabrication, Installation
Raw steel material :
Q235B, Q355B
Surface treatment :
Painting
Service life :
50 Years
Wall and Roof :
Glass wool
Description

Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction

General information:

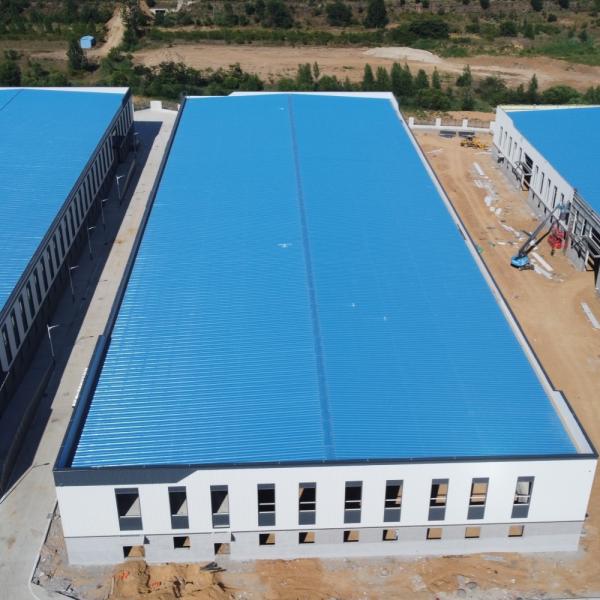

Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction. This Pre Built Steel Buildings Portal Frame Structure Factory Buildings is a new-built modern tyre production factory. Our service scope for this project include steel structure design, fabrication and construction.

In the construction industry, with the increasing popularity of prefabricated steel structure factory buildings, the fabrication, transportation and installation technology of prefabricated steel structure factory has received more and more attention, and it has also been rapidly developed and continuously improved.

Project information for Prefabricated steel building:

Name

Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction
Structure Type Portal frame, single ridge, two slopes, multi spans
Length 240 m
Width 160m
Eave Height 12m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof

steel cladding sheet, sandwich panel
Wall steel cladding sheet, sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm

Material list and technical parameters:

No. Item Details of steel structure building or steel frame
1 Material Material carbon structural steel
2 Produce Lead time Normallly 45days after down payment, also according to quantity.
3 Quality Certification Quality certificate from factory, the third party by client request.
4 Dimensions Length H beam: 4000-15000mm
5 Thickness: web plate: 6-32mm
6 wing plate: 6-40mm
7 Height 200-1200mm
8 Color According to customers
9 Size MOQ is 1000 m2, width * length * eave height,
10 Main components Base Cement and steel foundation bolts
11 Main frame H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe
12 Secondary frame : galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc.
13 Material Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS,
14 Purlin C or Z purlin: Size from C120~C320, Z100~Z20
15 Column X-type, tree type ,lattice, Cross, Box etc.
16 Bolt Plain bolt and High-strength bolt
17 Roof & wall PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
18 Canopy steel sheet, PU sandwich panel, Rockwool sandwich panel
19 Door Sliding or rolling door
20 Window Aluminium alloy window
21 Surface Two lays of rust-proof painting or Hot Dip Galvanized
22 Sheet 0.5mm or 0.6mm galvanized sheet
23 Accessories Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc
24 Finishing options Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.
25 Usages 1. Steel workshop, steel warehouse, steel structure plant
26 2. Steel web frame structure
27 3. Steel H-column and steel H-beam
28 4. Portal frame products
29 5. High rise building project
30 6. Others steel structure buildings
31 Drawing According to drawings or steel structure design, according to customer's requirement.

Our steel structure production line:

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction

How to install:

Before the installation of the steel structure factory building, it is necessary to do a good job in all the preliminary work. For example, before lifting, the installer should re-test the components, and the lifting can only be carried out under the premise that the components are not deformed and the installation dimensions are correct. In addition, the installer should also check the pre-embedded bolts or cups of the steel column foundation on the premise that the strength of the foundation concrete meets the specifications. If the position of the foundation and the height of the elevation are found to be deviated, the part should be recorded. In order to adjust the position of the steel column.

Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction

Packing and transport:

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction

How to quote:

The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
