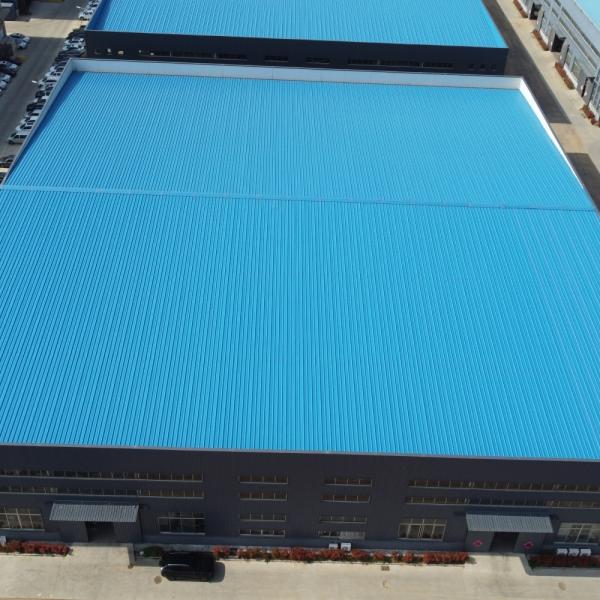

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse
Specifications
Brand Name :
Ruly Steel
Model Number :
Ruly0006
Certification :
SGS, ,ISO, BV
Place of Origin :
China
MOQ :
500 Square Meter
Price :
USD29-USD99 Per Square Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 Square Meter Per Month
Delivery Time :
30 Days
Packaging Details :
As request
Application :
Metal Building Frame Structure Warehouse
Usage :
Steel Structure Workshop, Metal Warehouse, Factory Buildings, Garment Factory,
Type :
Prefabricated Steel Frame Buildings
Service life :
50 Years
Surface treatment :
Painting or Hot-dip Galvanize
Wall and Roof :
Steel cladding
Columns and Beam :
H Section Column&Beam
Installation :
Engineer guidance on site
Description

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse

Project description:

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse. This steel strucre building is used as a car shop. The construction floor area is about 3200 square meters. We provide wleded steel beam&column, crane, steel cladding sheet, purlin, window and doors and other accessory.

We are a professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site.

1. Main steel frame structure

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse

2. Laying purlin

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse

3. H section steel column

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse

4. End wall

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse

Welded steel components in our factory:

Welding

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse

Packing

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse

Main parts of the steel structures and technical parameters:

Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe
Installation:

1: We provide construction drawing before installation.

2. Then our engineer guide on site for installation

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse

Why did you choose us?

Many customers have visited our factory for the long term cooperation."Quality firstly,Customer firstly" is our company principle.We obtain sound reputation because of our good quality and service. Meanwhile,We pay attention to the team work and value win-win cooperation, which would guide us much further.

  1. Low cost---Professional design, less construction time; saving raw materials.
  2. Environmental protection---specialized cladding materials guarantee excellent acoustic and insulation performance; no pollution ;Raw material can be recycled
  3. Comfortable and aesthetic---higher using areas and bigger building bays afford us wider viewpoints; distinctive and elegant profiles.
