Specifications
Brand Name :
Ruly Steel
Model Number :
Ruly0055
Certification :
SGS, BV
Place of Origin :
China
MOQ :
500 Square Meter
Price :
USD29-USD99 Per Square Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 Square Meter Per Month
Delivery Time :
30 Days
Packaging Details :
As request
Application :
Structural Steel Buildings Construction
Features :
Warehouse Builders
Type :
Light steel structure warehouse
Raw steel material :
Q235B, Q355B
Surface treatment :
Painting or Hot-dip Galvanize
Service life :
50 Years
Wall and Roof :
Glass wool
Working scope :
Design,Fabrication, Installation
Description

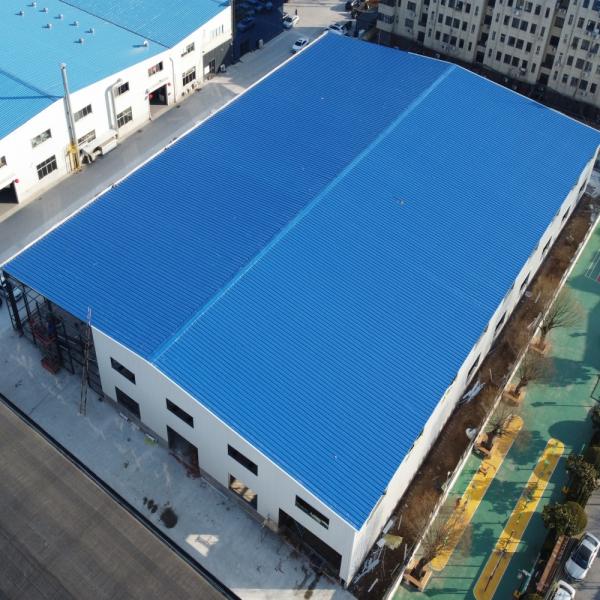

Prefabricated Structural Steel Buildings Construction Warehouse Builders

Steel frame structure warehouse is mainly composed of high-efficiency structural steel and high-efficiency functional materials such as hot-rolled light H steel, light welded steel, high-frequency welded steel, cold-formed thin-walled steel, thin steel plate and thin-walled steel pipe. The material is a sub-assembled, lightweight, fully assembled steel structure that meets the specific functional requirements of the building and the specific space requirements. Compared with concrete warehouse, prefabricated steel warehouse has such advantage: Save construction cost and construction time, high structure stability, larger inside space.

We could provide integated service for such project including designing, fabrcation all the steel structure components and roof & wall insulation material, installation.

Project information for this prefabricated steel structure warehouse

Name Prefabricated Structural Steel Buildings Construction Warehouse Builders​
Structure Type portal frame, single ridge, double span
Length 150m
Width 60m
Eave Height 9m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof

75 mm PU sandwich panel

Wall 75 mm PU sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm

Main parts of the steel structures and technical parameters

Main Steel Frame System
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel 75 mm PU sandwich panel
Wall panel 75 mm PU sandwich panel
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe

How to install

We will provide installation drawing firstly. Then we could dispatch our engineer to guide installation on site.

Prefabricated Structural Steel Buildings Construction Warehouse Builders

Packing and transport

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Prefabricated Structural Steel Buildings Construction Warehouse Builders

Why did you choose us

Many customers have visited our factory for the long term cooperation."Quality firstly,Customer firstly" is our company principle.We obtain sound reputation because of our good quality and service. Meanwhile,We pay attention to the team work and value win-win cooperation, which would guide us much further.

  1. Low cost---Professional design, less construction time; saving raw materials.
  2. Environmental protection---specialized cladding materials guarantee excellent acoustic and insulation performance; no pollution ;Raw material can be recycled
  3. Comfortable and aesthetic---higher using areas and bigger building bays afford us wider viewpoints; distinctive and elegant profiles.
