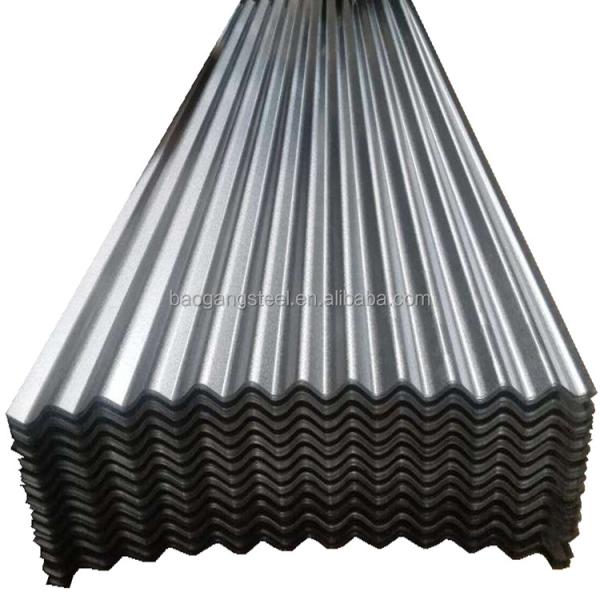

Z60 22 Gauge Corrugated Gi Sheet Roofing 0.1 - 2.5mm Zinc Aluminum Dx51d Dx52d
Z60 22 Gauge Corrugated Gi Sheet Roofing 0.1 - 2.5mm Zinc Aluminum Dx51d Dx52d
Z60 22 Gauge Corrugated Gi Sheet Roofing 0.1 - 2.5mm Zinc Aluminum Dx51d Dx52d
Z60 22 Gauge Corrugated Gi Sheet Roofing 0.1 - 2.5mm Zinc Aluminum Dx51d Dx52d
Z60 22 Gauge Corrugated Gi Sheet Roofing 0.1 - 2.5mm Zinc Aluminum Dx51d Dx52d
Z60 22 Gauge Corrugated Gi Sheet Roofing 0.1 - 2.5mm Zinc Aluminum Dx51d Dx52d
Specifications
Brand Name :
baogang
Model Number :
DX51D DX52D
Certification :
Approved by SGS,ISO
Place of Origin :
Shandong, China
MOQ :
25 tons
Price :
negotiable
Payment Terms :
T/T, L/C at sight,West Union,D/P,D/A,Paypal
Supply Ability :
10000 Ton/Tons per Month
Delivery Time :
within 7 days
Packaging Details :
Standard Seaworthy Packing
Application :
Building, Roofing tile,Ceilling
Thickness :
0.12-1.2mm*600-1250mm
Standard :
AiSi, ASTM, BS, DIN, GB, JIS
Width :
600-1250mm
Length :
1400-1799mm, 2001-3600mm, 3601-3660mm
Certificate :
API, ce, RoHS, SNI, BIS, SASO, PVOC, SONCAP, SABS, sirm, tisi, KS, JIS, GS, ISO9001
Grade :
DX51D
Coating :
Z61-Z90
Tolerance :
±1%
Processing Service :
Welding, Punching, Cutting, Bending, Decoiling
Spangle Type :
Regular Spangle
Hardness :
Full Hard
Surface :
Galvanized Coating
Shape :
Custom Corrugated Roof Sheet
Usage :
Roof Constrution Materials
Spangle :
Zero.minimum .Regular Big Spangle
Sample :
Sample Freely
Zinc Coating :
Z30-275g/m2
Packages :
PVC+waterproof Paper+wooden Case
Advantage :
High Corrosion Resistance Painting
Steel Grade :
DC51D/DX51D/DX52D/SGSS
Price Term :
CIF CFR FOB EX-WORK
Port :
SHAGNHAI QINGDAO TIANJIN
Description

Z60 22 Gauge Galvanized Corrugated Roofing Sheet 0.1-2.5mm Zinc Aluminum Dx51d Dx52droof Sheet

4x8 GI Corrugated Zinc Roof Sheets Metal Price Galvanized Steel Roofing Sheet

galvanized roofing sheet/corrugated steel sheet

Corrugated plate is also called profiled plate. It is made of color-coated steel plate, galvanized plate and other metal plates, which are rolled and cold-formed into various corrugated profiled plates. It is applicable to the roof, wall and interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, and large-span steel structures. It has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rain prevention, long service life, and maintenance-free, and has been widely used

Galvanized corrugated steel sheet, also known as galvanized sheet or white iron sheet, is a cold-rolled continuous hot-dip galvanized steel sheet and strip with a thickness of 0.25-2.5mm. The surface of the steel plate is beautiful, with block or leaf like zinc crystal pattern, the zinc coating is firm, and has excellent atmospheric corrosion resistance. At the same time, the steel plate has good welding performance and cold forming performance. Compared with the electro galvanized steel sheet, the galvanized layer of the hot-dip galvanized steel sheet is thicker, and it is mainly used for parts requiring strong corrosion resistance. Galvanized sheet is widely used in construction, packaging, railway vehicles, agricultural machinery manufacturing and daily necessities.

Product Name PPGI/GI Corrugated Steel Sheet
Thickness 0.13mm-0.8mm
Length 2.5m,3.0m,5.8m or according to customer's special request
width 610,760,840,900,914,1000,1200,1250mm
Tolerance Thickness: +/-0.02mm, Width:+/-2mm
Material grade DX51D / SGCC/DX52D/DX53D
surface

GI:60g/sqm-275g/sqm, according to customer's request

PPGI:PVDF,HDP,SMP,PE,PU
Standard ASTM,DIN,JIS,BS,GB/T
Certificate ISO,CE
Payment terms 30% T/T deposit in advance, 70% T/T balance within 5 days after B/L copy, 100% Irrevocable L/C at sight, 100% Irrevocable L/C after receive B/L 30-120 days, O/A
Delivery times Delivered within 30 days after the receipt of deposit
Package tied up with steel strips and wrapped with water proof paper
Application Range

1. Refrigerator shutter &side panels, Washer, Freezers, Air conditions

2. Rice Cooker, Microwave Ovens, Water Heaters, Sterilization Cabinets, Range Hoods

3. Computer Panels , DVD/DVB panels, TV back panel etc.
Advantages

1. Reasonable price with excellent quality

2. Abundant stock and prompt delivery

3. Rich supply and export experience, sincere service

Z60 22 Gauge Corrugated Gi Sheet Roofing 0.1 - 2.5mm Zinc Aluminum Dx51d Dx52dZ60 22 Gauge Corrugated Gi Sheet Roofing 0.1 - 2.5mm Zinc Aluminum Dx51d Dx52dZ60 22 Gauge Corrugated Gi Sheet Roofing 0.1 - 2.5mm Zinc Aluminum Dx51d Dx52d

Diagram of Steel Surface Coating And Layers:
PPGI PPGL
Products Specification
Annual design production capacity
220 thousand tons
Technical Standard
EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
Base Steel
Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel
Thicness
0.12～6.0mm
Width
600～1500mm
Coil Width
800～1250mm
Coil weight
≤10Tons
Coil inner diameter
Φ508mm/Φ610mm
Coil outer diameter
Φ800mm～Φ1500mm
Film thickness can be realized
13+4---25+15μm
Surface Color
RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high gloss pattern , flower pattern, etc
Package
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement
Product packaging
FAQ
Q1: Are you factory or trading company ?
A: We are manufacturer and trader. welcome you visit our factory.
Q2: Can you guarantee your productions quality ?
A: Best quality is our principle all the time. We have 2 times QC one by one.
Our vision: to be world-class professional, reliable and outstanding steel supplier.
Q3: Do you provide samples? is it free or extra 2 ?
A: The sample could can provide for customer with free, but the freight will be covered by
customer account. The sample freight will be returned to customer account after we
cooperate.
Q4: What is your MOQ ?
A: We welcome your trial order MOQ 25 T to be stuffed in 1*20GP .
Large quantity can reduce your cost.
Q5: What is your main market ?
A: Our productions are mainly exported to Africa, Southeast Asia, the Middle East,
Central Asia Europe, North & South America and other countries and regions.
