0.115mm Metal Wire Spools Steel Cable Spool Bright Finish
0.115mm Metal Wire Spools Steel Cable Spool Bright Finish
0.115mm Metal Wire Spools Steel Cable Spool Bright Finish
0.115mm Metal Wire Spools Steel Cable Spool Bright Finish
0.115mm Metal Wire Spools Steel Cable Spool Bright Finish
0.115mm Metal Wire Spools Steel Cable Spool Bright Finish
0.115mm Metal Wire Spools Steel Cable Spool Bright Finish
0.115mm Metal Wire Spools Steel Cable Spool Bright Finish
Specifications
Brand Name :
LONGKUO METAL WIRE MESH
Place of Origin :
CHINA
MOQ :
1 Coil / Spool or Negotiable
Price :
$2 ~ 4 / kg
Payment Terms :
T/T, Western Union
Supply Ability :
5000tons/year
Delivery Time :
About 7 work days depends on the supply
Packaging Details :
Wooden box or plastic spool or steel spool or coil
Product name :
Stainless Steel Light Cable
Material :
Stainless Steel304
Diameter :
0.115mm
Surface :
Bright Finish, Galvanized, Spray plastic
Type :
In Spool
We are factory :
Low MOQ, Lowest price and the best service
Sample :
Small Sample Free
Application :
Construction, Spring, Screw, Weaving, Manufacturing
Color :
Primary color/ Customized
Packing :
Wooden box or plastic spool or steel spool or coil
Description

In Spool Diameter Range 0.115mm Steel Grade Stainless Steel 304 Stainless Steel Light Cable

Specifications

1. Stainless steel soft wire, code: s, soft. Commonly known as hydrogen wire: bright surface, soft, no magnetism, fatigue resistance, large extension force and other characteristics. Specification: 0.03-5.0mm, material: 201, 304, 304L, 316, 316L, 310, 310S, 321, etc.

2. Stainless steel light cable, code: LD, light draw. After heat treatment, the steel wire shall be pulled with small reduction surface. The surface is bright, soft, fatigue resistant, and has certain elongation. Specification: 0.03-5.0mm, material: 201, 304, 304L, 316, 316L, etc.

3. Stainless steel cold cable, code: WCD, cold draw. The surface is smooth, toughness is good and wear resistant. Specification: 0.03-6.0mm, material: 201, 304, 304L, 316, 316L, etc.

4. Stainless steel spring wire: high hardness, strong elasticity, good wear resistance and compression resistance. Specification: 0.15-5.0mm, material: 302, 304H, 304L, 316, 316L, 310, 310S, 321, etc.

Material composition table

AISI

Material

 Chemical composition (%)
C Si Mn P S Ni Cr Mo Cu Ti
201 ≤0.15 ≤0.75 5.5~7.5 ≤0.06 ≤0.03 3.5~5.5 16~18 - - -
304 <0.08 <1.0 <2.0 <0.035 <0.03 8~10 17~19 - - -
304L <0.03 <1.0 <2.0 <0.04 <0.03 9~13 18~20 - - -
304HC <0.06 <1.0 1.2-1.8 <0.035 <0.03 8~11 17~19 - 2.0-3.0 -
316 <0.08 <1.0 <2.0 <0.04 <0.03 10~14 16~18 2.0~3.0 - -
316L <0.03 <1.0 <2.0 <0.04 <0.03 12~15 16~18 2.0~3.0 - -
310S <0.08 <1.5 <2.0 <0.04 <0.03 19~22 24~26 - - -
321 <0.08 <1.0 <2.0 <0.045 <0.03 9~13 17~19 - - >0.035
301 <0.15 <1.0 <2.0 <0.04 <0.03 >7 16~18 - - -
302 <0.15 <1.0 <2.0 <0.04 <0.03 >8 17~19 - - -

Product specification parameter table

Wire diameter(mm) Tolerance(mm)

Maximum diameter

deviation(mm)
0.020-0.049 +0.002 -0.001 0.001
0.050-0.074 ±0.002 0.002
0.075-0.089 ±0.002 0.002
0.090-0.109 +0.003 -0.002 0.002
0.110-0.169 ±0.003 0.003
0.170-0.184 ±0.004 0.004
0.185-0.199 ±0.004 0.004
0.-0.299 ±0.005 0.005
0.300-0.310 ±0.006 0.006
0.320-0.499 ±0.006 0.006
0.500-0.599 ±0.006 0.006
0.600-0.799 ±0.008 0.008
0.800-0.999 ±0.008 0.008
1.00-1.20 ±0.009 0.009
1.20-1.40 ±0.009 0.009
1.40-1.60 ±0.010 0.010
1.60-1.80 ±0.010 0.010
1.80-2.00 ±0.010 0.010
2.00-2.50 ±0.012 0.012
2.50-3.00 ±0.015 0.015
3.00-4.00 ±0.020 0.020
4.00-5.00 ±0.020 0.020

Technology

Stainless steel wire drawing is a metal plastic processing process in which the wire rod or wire blank is pulled out from the die hole of drawing die under the action of drawing force to produce small section steel wire or non-ferrous wire. Wire with different cross section shape and size of various metals and alloys can be produced by drawing. The drawn wire has the advantages of accurate size, smooth surface, simple drawing equipment and die, and easy manufacturing.

Packaging

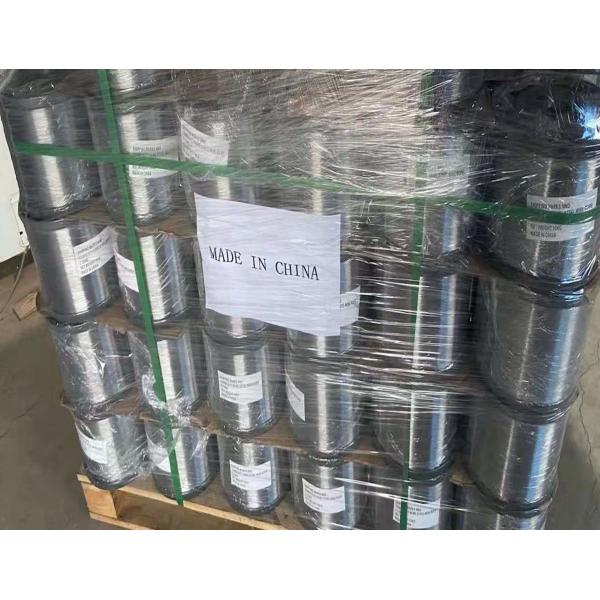

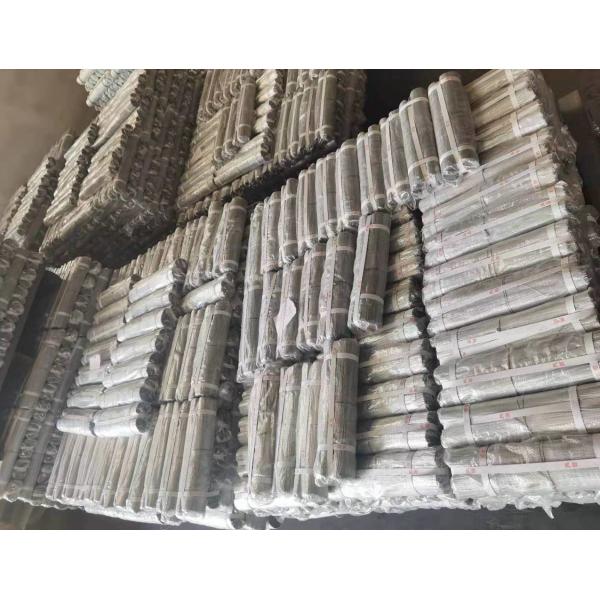

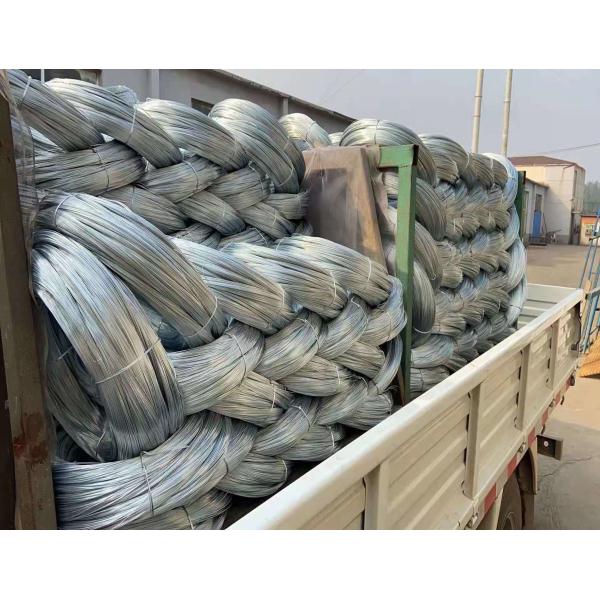

Shaft wire or coil wire, wrapped with plastic cloth, bulk, pallet or wooden box according to customer requirements.
