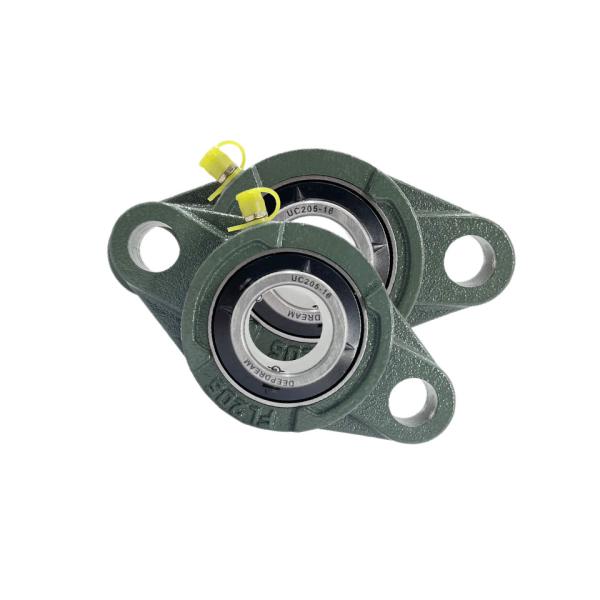

UCF205 Chrome Outer Spherical Bearing , Agricultural Self Aligning Ball Bearing
UCF205 Chrome Outer Spherical Bearing , Agricultural Self Aligning Ball Bearing
UCF205 Chrome Outer Spherical Bearing , Agricultural Self Aligning Ball Bearing
UCF205 Chrome Outer Spherical Bearing , Agricultural Self Aligning Ball Bearing
Specifications
Brand Name :
deep dream
Model Number :
UC205
Place of Origin :
Shaanxi, China
MOQ :
1 PCS
Payment Terms :
Western Union, T/T
Supply Ability :
200000 pcs per day
Packaging Details :
1.Single box: plastic bag+single box, OEM supply 2.Single wooden box: plastic bag+single wooden box 3.Carton: Standard export carton(30*108*38.1MM) or as your need. 4.Pallet: Wooden pallet with plastic film against moisture. 5.Pallet size: 1.2m*1m 6.Packag
Product name :
Flange Units
Type name :
UC205
Service :
OEM Customized Services
Application :
Agricultural,transportation,construction
Material :
Chrome Steel
Certification :
ISO9001
Cage :
Steel Cage
Description

High Quality Flange Units Outer Spherical Bearing UCFL205-16 UCF205

Description: of Flange Units

Pillow Block Ball Bearings can be used with high-capacity spherical roller bearings or self-aligning ball bearings. They are manufactured from high-strength cast iron as standard but are also available in cast steel or spheroidal graphite cast iron. The housings have a re-lubrication facility and can be used with either oil or grease lubrication.

Specifications: of Flange Units

Product Name
High quality Flange Units
Brand
Deep dream&OEM
Model No
 UCFL205
Material
Chrome Steel, Bearing steel; GCr15; carbon steel, brass
Sealed Type
2RS rubber seals/ ZZ metal shields/Open
Precision
P0
Clearance
C0, C2, C3, C4
Usage
Used for Mining, metallurgy, agriculture, chemical industry, textile, printing and dyeing, conveying machinery.

带座轴承型号
Bearing Unit No.		 轴径
Shaft Dia		 外 型尺寸 Dimensions(mm) 重量 Weight (kg)
d
mm a e b g 1 z s n Bi
UCFL202 15 113 90 60 15 12 25.5 30.9 12 11.5 27.4 0.42
UCFL203 17 113 90 60 15 12 25.5 30.3 12 11.5 27.4 0.41
UCFL204 20 113 90 60 15 12 25.5 33.7 12 12.3 31 0.48
UCFL205 25 130 99 68 16 14 27 35.8 16 143 34.1 0.6
UCFL206 30 148 117 80 18 14 31 40.2 16 15.9 38.1 0.98
UCFL207 35 161 130 90 19 16 34 44.4 16 17.5 42.3 131
UCFL208 40 175 144 100 21 16 36 51.2 16 19 49.2 1.53
UCFL209 45 188 148 108 22 18 38 52.2 19 19 49.2 1.68
UCFL210 50 197 157 115 22 18 40 54.6 19 19 51.6 1.88
UCFL211 55 224 184 130 25 20 43 58.4 19 222 55.6 3.1
UCFL212 60 250 202 140 29 20 48 68.7 23 25.4 65.1 4
UCFL213 65 258 210 155 30 24 50 69.7 23 25.4 65.1 5
UCFL214 70 265 216 160 31 24 54 75.4 23 30.2 74.6 5.6
UCFL215 75 275 225 165 34 24 56 78.5 23 333 77.8 6.2
UCFL216 80 290 233 180 34 24 58 83.3 25 33.3 82.6 8.2
UCFL217 85 305 248 190 36 26 63 87.6 25 34.1 85.7 9.26
UCFL218 90 320 265 205 40 26 68 96.3 25 39.7 96 11.73


Why Choose Us:

1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported

Applications:

Papermaking machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industry.

UCF205 Chrome Outer Spherical Bearing , Agricultural Self Aligning Ball Bearing

FAQ

1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing

4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
